Home Welding Welding Alloys Copper & Brass 625 Copper and Brass TIG Wire 1/16"
Copper & Brass

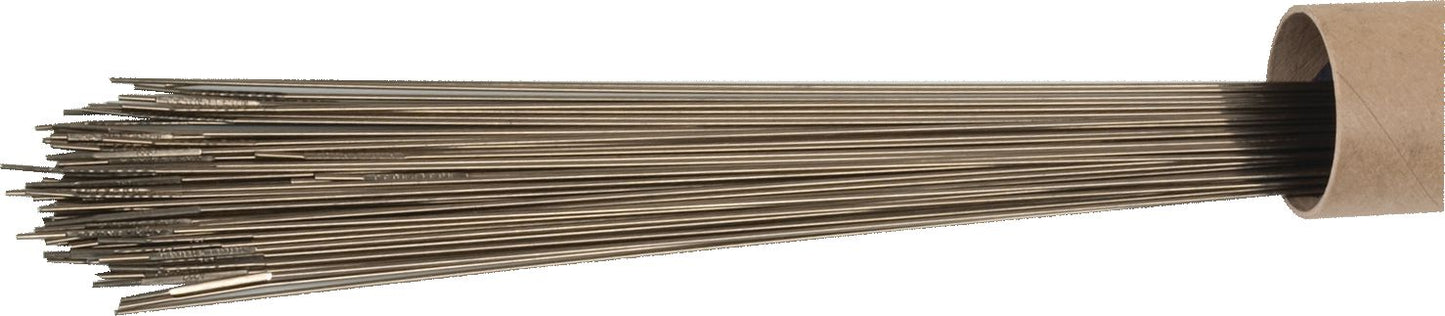

625 Copper and Brass TIG Wire 1/16
625 Copper and Brass TIG Wire 1/16

625 Copper and Brass TIG Wire, Solid, 21 to 23 HRC Hardness, 100% Ar Shielding Gas, DCSP Polarity, 36"Length, 1/16"
(Pack of 2)

Item#: CW3266

Cronatron®

Welds most ferrous and non-ferrous metals and joins most combinations of dissimilar metals (except white metals).
Superior Advantages
• Tough, crack-free, machinable welds
• Easy arc control with little preheat
• High frictional wear resistance
• High strength
Tensile Strength: 110,000 PSIHardness: Rc 21-23Polarity: DC StraightGas: 100% Ar
Typical Applications
• Brass, bronze or cast iron to steel
• Gear teeth, valves and castings
• Impellers, cams and shafts

Read More
Check Availability
Usually Ships: Today
While Supplies Last

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 13-26

Frequently Bought Together

625 Copper and Brass TIG Wire 3/32

625 Copper and Brass TIG Wire 3/32"

Item#: CW3267
157T Premium Bronze Solid Tig Wire 3/32X36

157T Premium Bronze Solid Tig Wire 1/8X36

Item#: EG2004157T
157T Premium Bronze Solid Tig Wire 3/32X36

157T Premium Bronze Solid Tig Wire 1/16X36

Item#: EG2007157T
Vision Pro Super Illuminator Work Light

Vision Pro Super

Item#: DY21061040
PTO Pin Lock 3/8 x 2-1/2

PTO Pin Lock 1/4 x 2-1/2"

Item#: 64348
USS Flat Washer Thru-Hardened Steel 3/8

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447
22-50 MIG Welding Nozzle 1/2

22-50 MIG Welding Nozzle 1/2"

Item#: CW4042
24A-62 MIG Welding Nozzle 5/8

24A-62 MIG Welding Nozzle 5/8"

Item#: CW4049
321 Mild and Carbon Steel MIG Welding Wire 0.035

321 Mild and Carbon Steel MIG Welding Wire 0.035"

Item#: CW1931
321 Mild and Carbon Steel TIG Wire 1/8

321 Mild and Carbon Steel TIG Wire 1/8"

Item#: CW1007
3880 Stainless Steel TIG Wire 3/32

3880 Stainless Steel TIG Wire 3/32"

Item#: CW1022
665 Copper and Brass TIG Wire 1/16

665 Copper and Brass TIG Wire 1/16"

Item#: CW1841
SAE Flat Washer Grade 8 Steel 1/4

SAE Flat Washer Grade 8 Steel 1/4"

Item#: P11394
Nut Torq Tite Hex Flange, #8-32, Nut Torq Tite Hex Flange, Grade 2, Serrated, Coarse, Steel, Zinc Finish, #8-32

Nut Torq Tite Hex Flange, 1/4-20

Item#: DY02551300
Swivel Head Ratchet 3/8 Drive, 3/8

Swivel Head Ratchet 3/8 Drive

Item#: DY89310010
Nut Torq Tite Hex Flange, #8-32, Nut Torq Tite Hex Flange, Grade 2, Serrated, Coarse, Steel, Zinc Finish, #8-32

Nut Torq Tite Hex Flange, 1/4-20

Item#: DY02551300
Swivel Head Ratchet 3/8 Drive, 3/8

Swivel Head Ratchet 3/8 Drive

Item#: DY89310010
USS Flat Washer Steel 5/16

USS Flat Washer Steel 5/16"

Item#: BC502

Product Description

Welds most ferrous and non-ferrous metals and joins most combinations of dissimilar metals (except white metals).
Superior Advantages
• Tough, crack-free, machinable welds
• Easy arc control with little preheat
• High frictional wear resistance
• High strength
Tensile Strength: 110,000 PSIHardness: Rc 21-23Polarity: DC StraightGas: 100% Ar
Typical Applications
• Brass, bronze or cast iron to steel
• Gear teeth, valves and castings
• Impellers, cams and shafts

Technical Specifications

Item#: CW3266
Welding Process TIG
Type Solid
Diameter 1/16 "
Length 36 "
Tensile Strength 110,000 PSI
Base Metal Copper/Brass
Hardness 21-23 HRC
Shielding Gas 100% Ar
Polarity DCSP
UNSPSC #: 23271810
TAA Compliant: No
Weight: 2.5 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Suggested Products

665 Copper and Brass TIG Wire 1/16

665 Copper and Brass TIG Wire 1/16"

Item#: CW1841

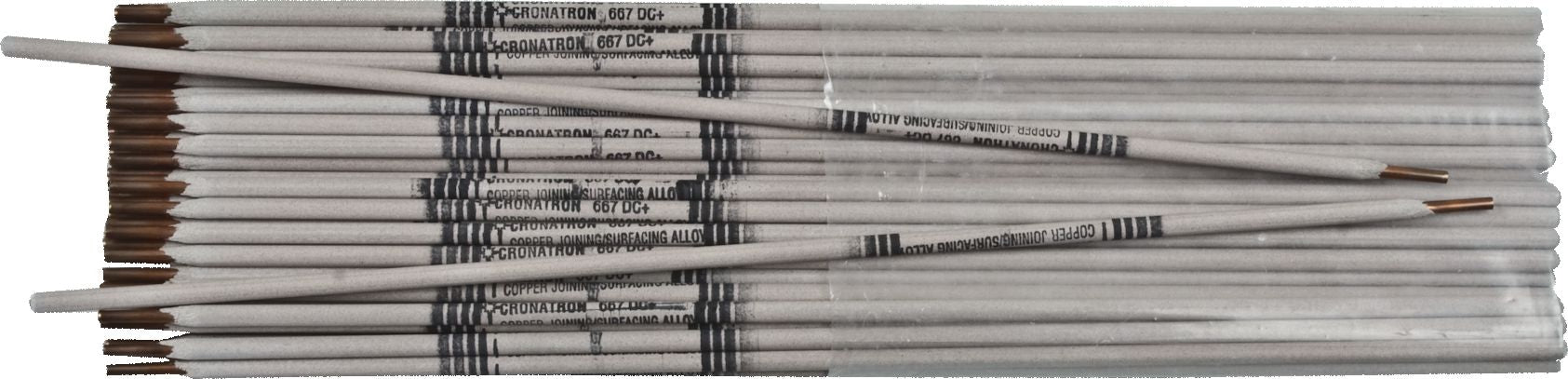

667 Copper and Brass Stick Rod Electrode 1/8

667 Copper and Brass Stick Rod Electrode 1/8"

Item#: CW1868
657 Premium Bronze Solid Mig Wire .035X30LB SPL

657 Premium Bronze Solid Mig Wire .035X30LB SPL

Item#: EG65770035
665 Copper and Brass TIG Wire 1/8

665 Copper and Brass TIG Wire 1/8"

Item#: CW1839
665 Copper and Brass TIG Wire 3/32

665 Copper and Brass TIG Wire 3/32"

Item#: CW1840

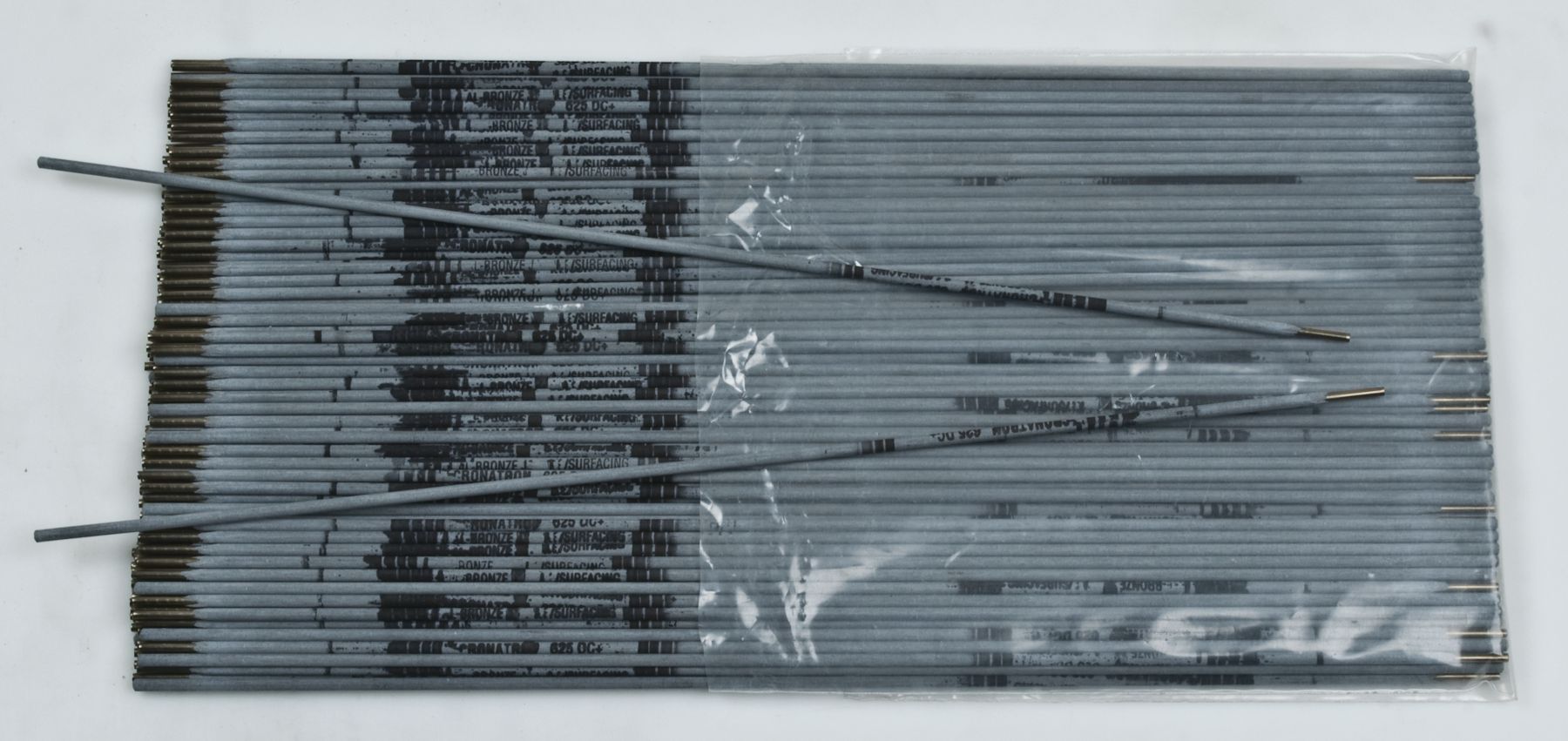

625 Copper and Brass Stick Rod Electrode 3/32
