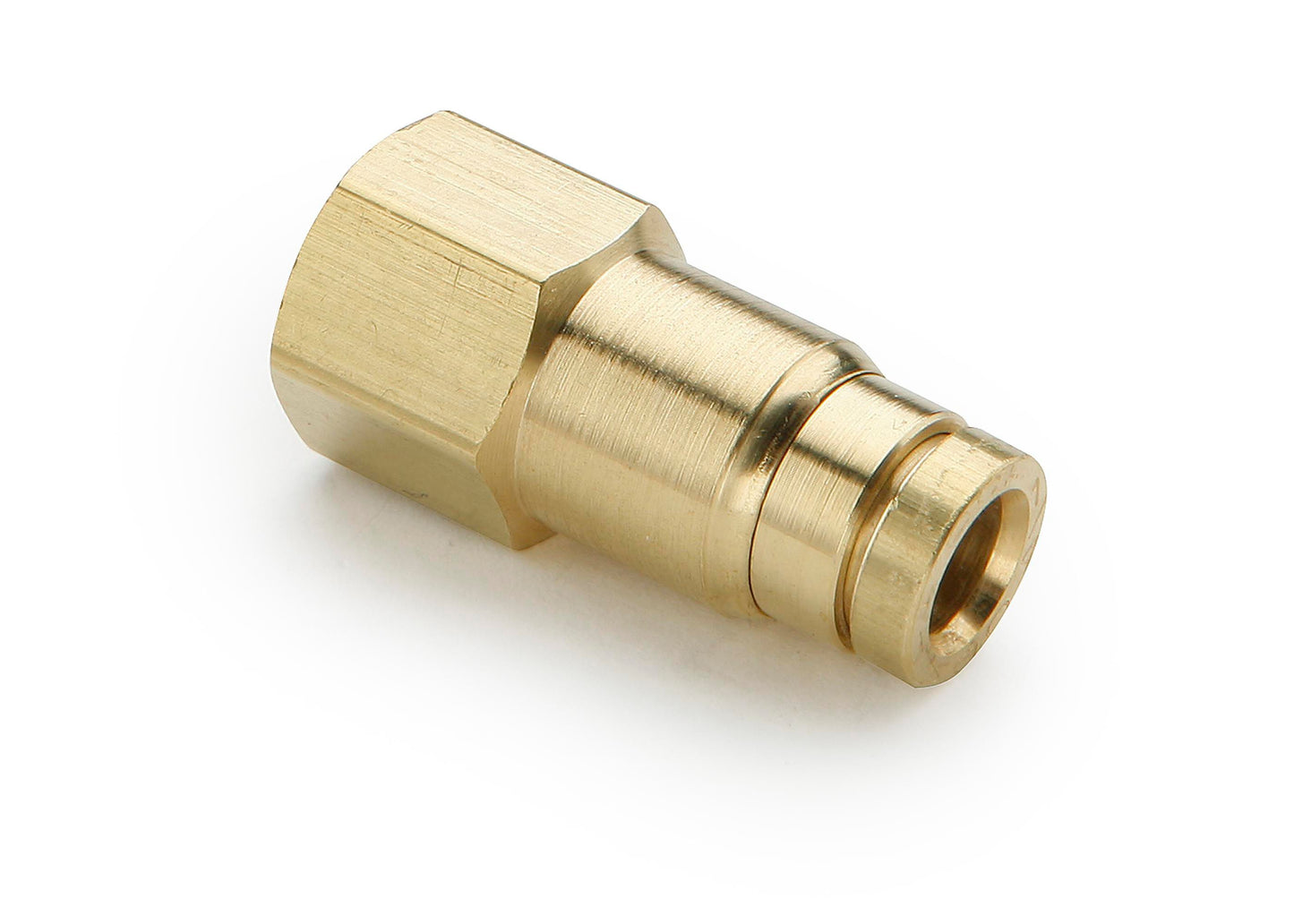

Parker DOT Brass Air Brake Fitting - Push-to-Connect Female Connector 1/2x1/2
(Pack of
5)
Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-10
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 23-8
Frequently Bought Together
DOT Swivel Elbow Male 90° Brass 5/8 x 1/2-14
Couldn't load pickup availability
DOT Elbow Male 45° Brass 3/8 x 3/8-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 3/8-18
Couldn't load pickup availability
DOT Union Nylon 1/2 x 1/2"
Couldn't load pickup availability
DOT Swivel Elbow Male 90° Brass 1/2 x 1/2-14
Couldn't load pickup availability
DOT Elbow Male 90° Brass 1/4 x 1/8-27
Couldn't load pickup availability
DOT Union Tee Nylon 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
DOT Compression Connector Male Brass 1/4 x 1/8"
Couldn't load pickup availability
Super 77 Hose Clamp SS 7/8 to 1-3/4"
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Pipe Close Nipple Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/4-18
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
Product Description
Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-10
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.
Technical Specifications
| Item#: | 1608780 |
|---|---|
| Fitting Type | Air Brake Fittings - Push-to-Connect |
| Material | Brass |
| Configuration | Female Connector |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 1/2 " |
| Fitting Dimension B | 1/2 " |
| Parker Reference No. | 66PTC-8-8 |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 1.05 lb |
