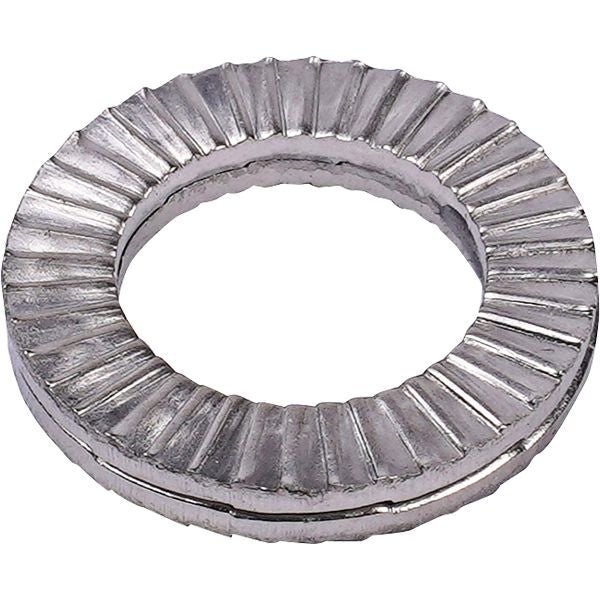

1/4 Standard 316 SS Anti-Vibration Serated Self Lock Washer
(Pack of
10)
SKU:DY10341300 Item#: DY10341300
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration
• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• 316L Stainless Steel
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
DIN 127B Standard Lock Washer M8
Couldn't load pickup availability
Lock Washer Non-Linking Steel 1/4"
Couldn't load pickup availability
Lock Washer 18-8 Stainless Steel 1/4"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Pneumatic Impact Wrench, 1/2 Drive Max Torque 730 lbs
Couldn't load pickup availability
Screwdriver Master Bit Set, S2 Tool Steel, 100pc
Couldn't load pickup availability
Double Spiral Tube Brush 3/4"
Couldn't load pickup availability
Pneumatic Impact Wrench, 1/2 Drive Max Torque 730 lbs
Couldn't load pickup availability
Screwdriver Master Bit Set, S2 Tool Steel, 100pc
Couldn't load pickup availability
Double Spiral Tube Brush 3/4"
Couldn't load pickup availability
Product Description
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• 316L Stainless Steel
Technical Specifications
| Item#: | DY10341300 |
|---|---|
| Nominal Size | 1/4 " |
| Type | Serrated Self Lock Washers |
| Material | Stainless Steel |
| I.D. | 0.28 " |
| O.D. | 0.45 " |
| Thickness | 0.09 " |
| Grade | 316L |
| Quantity Per Package | 10.0000 |
| UNSPSC #: | 31161801 |
| TAA Compliant: | No |
| Weight: | 0.025 lb |
