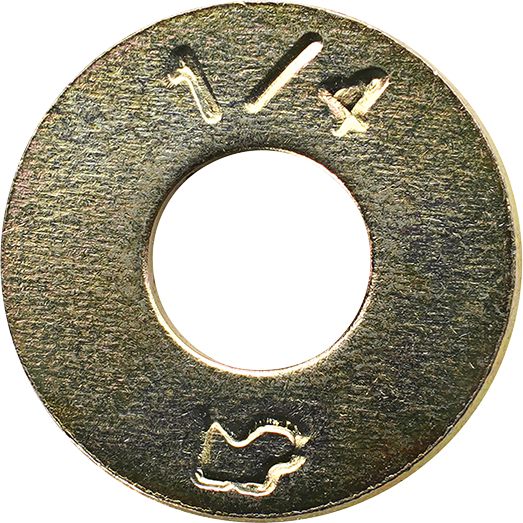

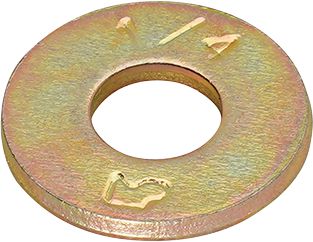

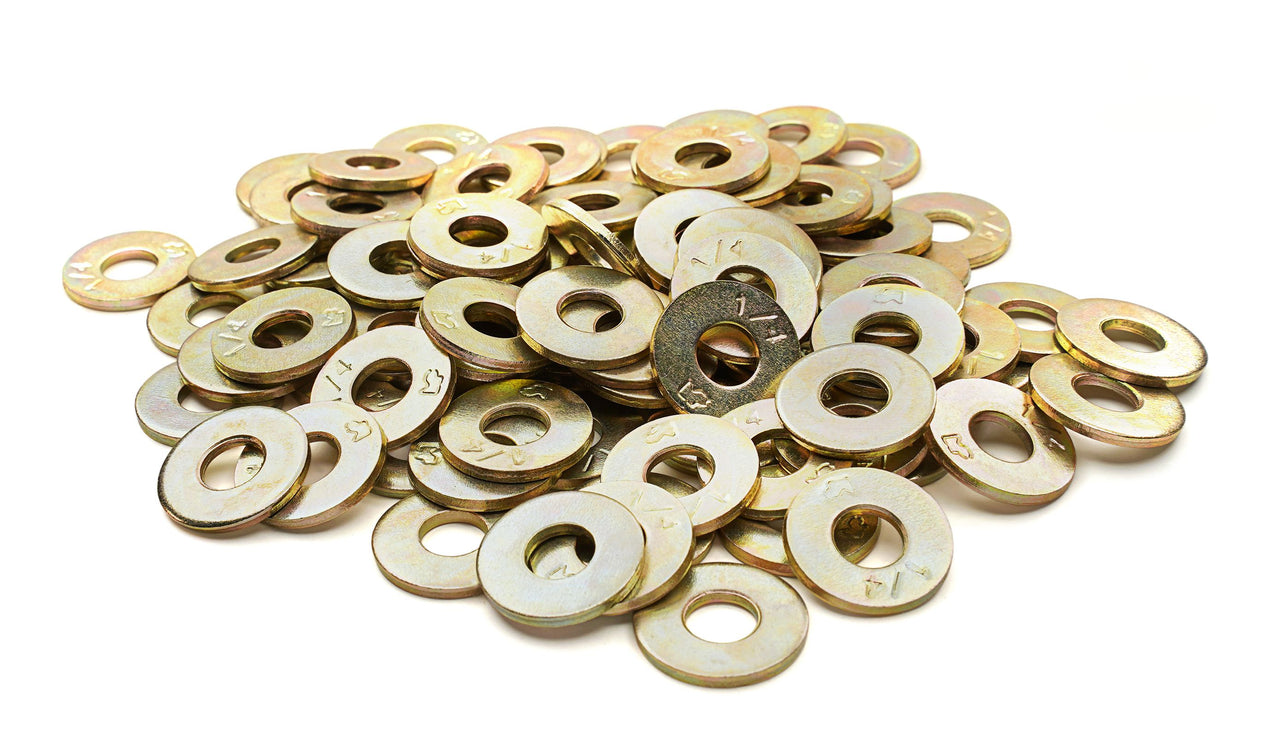

Flat Washer, USS, Thru-Hardened, Steel, Yellow Zinc Finish, 0.312" ID, 0.734" OD, 0.051 to 0.08" Thickness, 1/4"
(Pack of
100)
Enjoy a secure grip and prevent loosening when you use this USS flat steel washer for your construction, engineering and automotive projects. Thru-hardened feature means the entire washer is heat-treated, providing consistent strength throughout. When high strength and reliability are needed, this robust washer is your go to.
• Zinc-plated to 0.0002" minimum thickness with yellow chromate finish
• Thru-hardened to resist dishing, bellying or cracking
• Larger outer diameter allows for better load distribution on the fastened material
• Hardened and drawn to Rc 38/45
• 1050 annealed HRPO*
*Hot rolled, pickled and oiled steel
*Hot rolled, pickled and oiled steel
Frequently Bought Together
Z Series Crimp-On Hose End 1" x 1-5/8-12
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/8" x 1/2-14
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Product Description
Enjoy a secure grip and prevent loosening when you use this USS flat steel washer for your construction, engineering and automotive projects. Thru-hardened feature means the entire washer is heat-treated, providing consistent strength throughout. When high strength and reliability are needed, this robust washer is your go to.• Zinc-plated to 0.0002" minimum thickness with yellow chromate finish
• Thru-hardened to resist dishing, bellying or cracking
• Larger outer diameter allows for better load distribution on the fastened material
• Hardened and drawn to Rc 38/45
• 1050 annealed HRPO*
*Hot rolled, pickled and oiled steel
*Hot rolled, pickled and oiled steel
Technical Specifications
| Item#: | FA88445 |
|---|---|
| Nominal Size | 1/4 " |
| Grade | Thru-Hardened |
| Finish | Yellow Zinc |
| Type | Flat Washer |
| I.D. | 0.312 " |
| O.D. | 0.734 " |
| Thickness | 0.051 – 0.080 " |
| Material | Carbon Steel |
| Pattern | USS |
| Specifications | ANSI B18.22.1 |
| UNSPSC #: | 31161807 |
| TAA Compliant: | No |
| Weight: | 0.5 lb |
Product Restrictions
