Hydraulic Quick Connect Coupler 1/4
Hydraulic Quick Connect Coupler 1/4

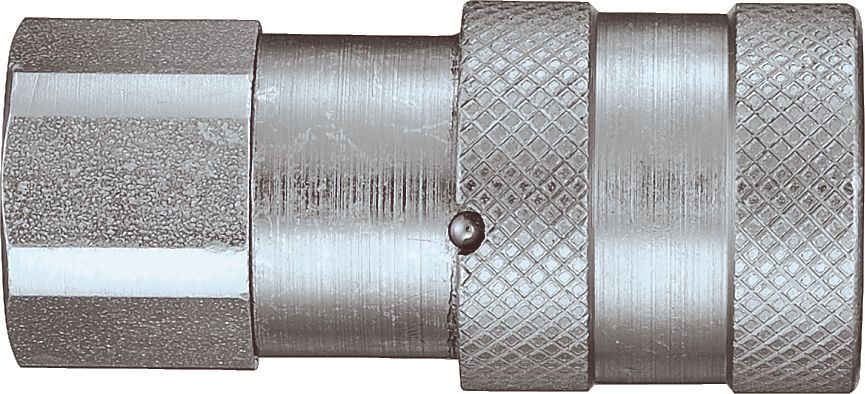

Hydraulic Quick Connect Coupler, Steel, ISO 16028, 3/8" x 3/8-18, Female NPTF, 2.54" Length, 4350PSI
(Pack of 1)

Item#: 29970

Lawson Products

Keep hydraulic connections clear in dirty conditions with this Quick Connect Coupler. The flat face design wipes clean easily and operates successfully in applications involving high pressure pulses. Heavy-duty locking sleeve provides greater strength and prevents accidental disconnection, while non-spill design guards against fluid loss during connection and disconnection. Ideal for use in agriculture, construction, mobile equipment, general industrial, mining and nuclear equipment. To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.
• Zinc-plated steel body
• PTFE and nitrile rubber seals
• Conforms to ISO 16028 Standards
• Operating temperature range: –4°F to +212°F
• 3/8" body size meets or exceeds HTMA requirements
Dixon: HT-Series
To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.

Read More
Check Availability

Catalog page#: 8-83

Frequently Bought Together

DOT Branch Tee Male Brass 1/4 x 1/4 x 1/8-27, DOT Air Brake Push to Connect Branch Tee, Male, Brass, 1/4 x 1/4 x 1/8-27

DOT Branch Tee Male Brass 3/8 x 3/8 x 3/8-18

Item#: 28990
DOT Elbow Male 90° Brass 1/4 x 1/4-18, DOT Air Brake Push to Connect Elbow, 90°, Male, Brass, 1/4 x 1/4-18, Tube x Pipe

DOT Elbow Male 90° Brass 3/8 x 1/8-27

Item#: 27186
DOT Swivel Branch Tee Male Brass 3/8 x 3/8 x 3/8

DOT Swivel Branch Tee Male Brass 3/8 x 3/8 x 3/8"

Item#: 27218
Hydraulic Quick Connect Nipple Steel 1/2

Hydraulic Quick Connect Nipple Steel 1/2" x 3/4-14

Item#: 29977
DOT Branch Tee Male Brass 1/4 x 1/4 x 1/8-27, DOT Air Brake Push to Connect Branch Tee, Male, Brass, 1/4 x 1/4 x 1/8-27

DOT Branch Tee Male Brass 3/8 x 3/8 x 3/8-18

Item#: 28990
DOT Elbow Male 90° Brass 1/4 x 1/4-18, DOT Air Brake Push to Connect Elbow, 90°, Male, Brass, 1/4 x 1/4-18, Tube x Pipe

DOT Elbow Male 90° Brass 3/8 x 1/8-27

Item#: 27186
KH Series Crimp-On Elbow Flare 90° 1/4

KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 88382KH
Crimp-On Hose Coupling 3/4 x 1

Crimp-On Hose Coupling 1/2" x 1/2-14

Item#: 88314KH
Weatherhead H280 Hydraulic Hose Rubber 0.53

Weatherhead H280 Hydraulic Hose Rubber 0.69" x 50'

Item#: 50799 06
DOT Elbow Male Nylon 1/4 x 1/8-27, DOT Air Brake Push to Connect Elbow, Male, Nylon, 1/4 x 1/8-27, Tube x Pipe

DOT Elbow Male Nylon 1/4 x 1/8-27

Item#: 91794
Hose Clamp 304 SS 2-13/16 to 3-3/4

Hose Clamp 304 SS 3/4 to 1-3/4"

Item#: 86728
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 1/4-18 x 1/4-18

Item#: 5289
Hydraulic Quick Connect Nipple 1-1/2

Hydraulic Quick Connect Nipple Brass 1" x 1-11-1/2

Item#: 20978
Coupler, ISO16028, 1/2

Coupler, ISO16028, 1/2" Body, 1/2"- 14 Female NPTF, Steel

Item#: 1593489
Hydraulic Quick Connect Nipple Steel 1/2

Hydraulic Quick Connect Nipple 3/4" x 1-11-1/2

Item#: 29978
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511

Product Description

Keep hydraulic connections clear in dirty conditions with this Quick Connect Coupler. The flat face design wipes clean easily and operates successfully in applications involving high pressure pulses. Heavy-duty locking sleeve provides greater strength and prevents accidental disconnection, while non-spill design guards against fluid loss during connection and disconnection. Ideal for use in agriculture, construction, mobile equipment, general industrial, mining and nuclear equipment. To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.
• Zinc-plated steel body
• PTFE and nitrile rubber seals
• Conforms to ISO 16028 Standards
• Operating temperature range: –4°F to +212°F
• 3/8" body size meets or exceeds HTMA requirements
Dixon: HT-Series
To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.

Technical Specifications

Item#: 29970
Hydraulic / Pneumatic Hydraulic
Description Quick Coupling
Type Coupler
Style ISO 16028, NFPA T3.20.15 (HTMA)
Standards ISO 16028, NFPA T3.20.15 (HTMA)
Body Size 10mm (3/8")
Thread Size 3/8-18
Thread Style Female NPTF
Burst Pressure 17,400 PSI
Seal Material Nitrile
Material Steel
Locking Mechanism 12 Balls
Flow 11 gal/min
Length 2.54 "
Temperature Range -40 to 212 F
Working Pressure 4,350 PSI
Hex Size 1.06 "
Maximum Diameter 1.26 "
Coupled Length 4.28 "
UNSPSC #: 27121701
TAA Compliant: Yes
Weight: 0.53 lb
