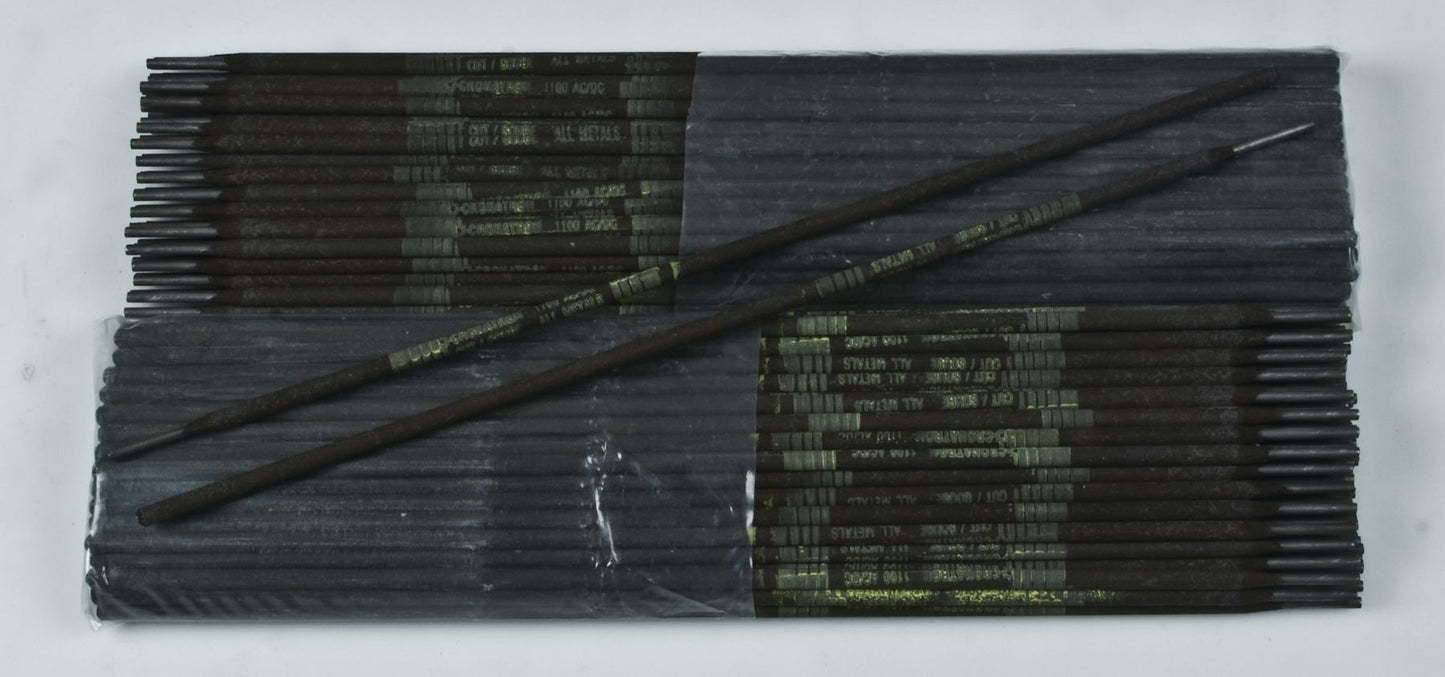

1100 Gouging and Cutting Stick Rod Electrode 1/8"
(Pack of
10.0)
The ultimate cutting, gouging, piercing, chamfering and grooving electrodes for any type of metal, including stainless steel, Monel®, cast iron and aluminum. Completely outclasses ordinary gouging and cutting electrodes.
Superior Advantages
• Provides straight, smooth cuts and efficient metal removal
• Prevents slag pileup and sticking
• Produces a ready-to-weld, clean, carbon-free surface
• Operates with standard welding machines
Polarity: AC or DC Straight
The Ultimate Disintegrator Alloy
Typical Applications
• Cast iron preparation
• Frozen bearing removal
• Vee out cracks
• Pierce and align holes
• Bevel corners, chamfer edges
• Remove old welds
Usage ProcedureUse AC or DC straight polarity only. Point the electrode in the direction of travel and ignite the arc. For shallow chamfers, move quickly along line of cut. To obtain a deeper groove, make successive passes 1/2 the diameter of the electrode. For piercing, place rod in desired Âposition and allow the blasting effect of electrode to penetrate metal.
Frequently Bought Together
1/16 Mild Steel Tig Wire
Couldn't load pickup availability
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 3/16"
Couldn't load pickup availability
184T High Nickel Molybendum Multi-Purpose Super Alloy Stick Electrode
Couldn't load pickup availability
184T High Nickel Molybendum Multi-Purpose Super Alloy Stick Electrode
Couldn't load pickup availability
Auto-Darkening Panoramic View Welding Helmet
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
45 Silver Bare Brazing Rod 1/8"
Couldn't load pickup availability
H3 Martensitic Hard Facing MIG Welding Wire 0.045"
Couldn't load pickup availability
Self Ignighting Propane Torch Head
Couldn't load pickup availability
X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 3/32
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 1/16"
Couldn't load pickup availability
9-6003 Plasma Cutting Shield Cup
Couldn't load pickup availability
Product Description
The ultimate cutting, gouging, piercing, chamfering and grooving electrodes for any type of metal, including stainless steel, Monel®, cast iron and aluminum. Completely outclasses ordinary gouging and cutting electrodes.Superior Advantages
• Provides straight, smooth cuts and efficient metal removal
• Prevents slag pileup and sticking
• Produces a ready-to-weld, clean, carbon-free surface
• Operates with standard welding machines
Polarity: AC or DC Straight
The Ultimate Disintegrator Alloy
Typical Applications
• Cast iron preparation
• Frozen bearing removal
• Vee out cracks
• Pierce and align holes
• Bevel corners, chamfer edges
• Remove old welds
Usage ProcedureUse AC or DC straight polarity only. Point the electrode in the direction of travel and ignite the arc. For shallow chamfers, move quickly along line of cut. To obtain a deeper groove, make successive passes 1/2 the diameter of the electrode. For piercing, place rod in desired Âposition and allow the blasting effect of electrode to penetrate metal.
Technical Specifications
| Item#: | CW1906 |
|---|---|
| Welding Process | Stick |
| Type | Cutting/Gouging |
| Diameter | 1/8 " |
| Length | 14 " |
| Base Metal | Mild & Carbon Steel |
| Polarity | DCSP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.37 lb |
Product Restrictions
