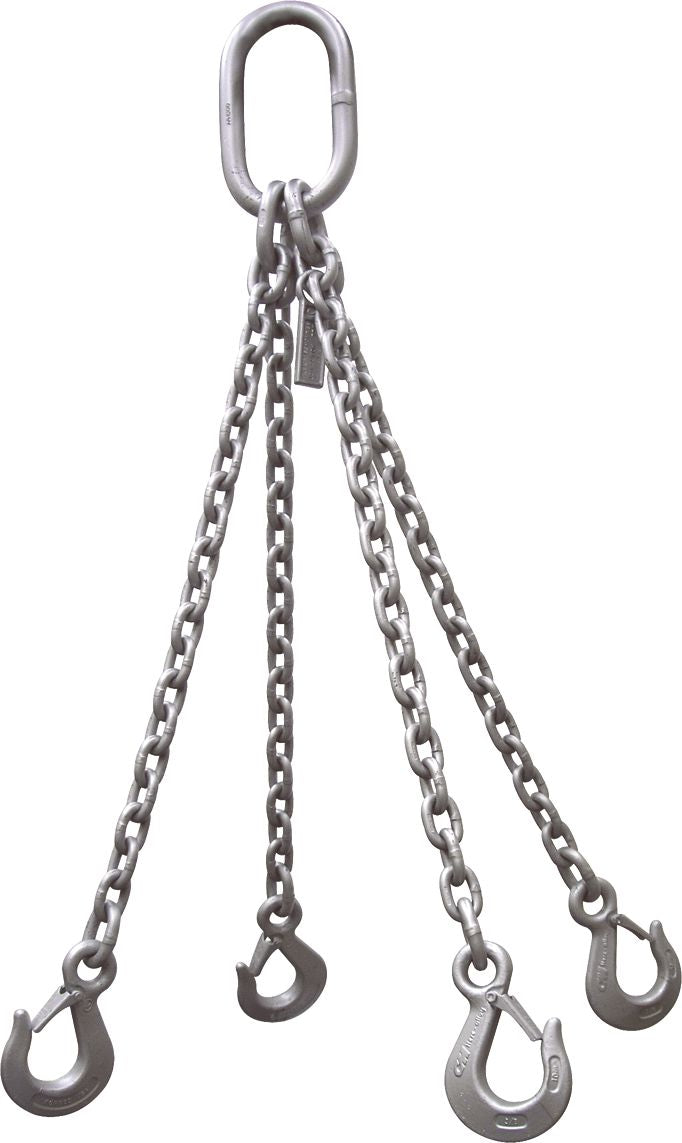

Chain Sling, Grade 100, 3/8'' x 8', Type QOG, Quad Leg, Oblong Master Link & Grab Hook
(Pack of
1)
SKU:1421812 Item#: 1421812
An identification tag is affixed to each sling and lists the following information:
• Grade
• Size
• Reach
• Serial Number
• Number of Legs
• Working Load Limit at stated angle
American National Standard ANSI B30.9, the National Association of Chain Manufacturers (NACM) and the Occupation Safety and Health Administration (OSHA) recommend only the use of alloy steel chain for overhead lifting.
Items are made-to-order and are non-returnable.
Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
Frequently Bought Together
9/32" x 4' Type SOG Gr. 80 Chain Sling
Couldn't load pickup availability
3/8" x 6' Type CO Gr. 80 Chain Sling
Couldn't load pickup availability
3/8" x 6' Type SGG Gr. 80 Chain Sling
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 6' Length
Couldn't load pickup availability
Quick Link 3/16" Chain Size 616 Lb Safe Load
Couldn't load pickup availability
Wire Rope Sleeve, 1/8", Aluminum
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Webmaster® 1600 Web Sling, Polyester, Yellow, 4' Length
Couldn't load pickup availability
Webmaster® 1600 Web Sling, Polyester, Yellow, 6' Length
Couldn't load pickup availability
Webmaster® 1600 Web Sling, Polyester, Yellow, 8' Length
Couldn't load pickup availability
Product Description
An identification tag is affixed to each sling and lists the following information:• Grade
• Size
• Reach
• Serial Number
• Number of Legs
• Working Load Limit at stated angle
American National Standard ANSI B30.9, the National Association of Chain Manufacturers (NACM) and the Occupation Safety and Health Administration (OSHA) recommend only the use of alloy steel chain for overhead lifting.
Items are made-to-order and are non-returnable.
Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
Technical Specifications
| Item#: | 1421812 |
|---|---|
| Type | Quad |
| Grade | 100 |
| Chain Size | 3/8 " |
| Reach | 8 ft |
| Assembly Type | Mechanical |
| Configuration | QOG |
| Attachment Type | Oblong Link and (4) Grab Hooks |
| Rated Capacity: 60° | 22,900 lb |
| Rated Capacity: 45° | 18,700 lb |
| Rated Capacity: 30° | 13,200 lb |
| Hook Type | Grab Hook |
| UNSPSC #: | 24101611 |
| TAA Compliant: | Yes |
Product Restrictions
