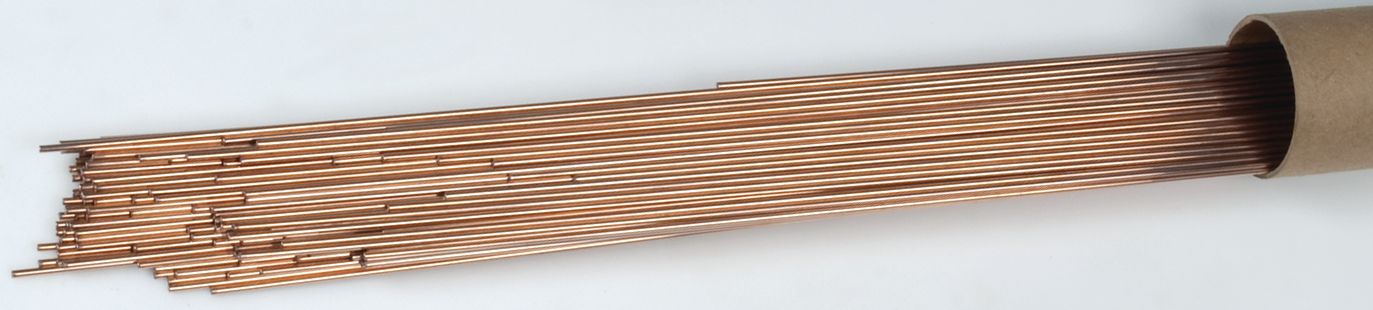

315 Mild and Carbon Steel Low Hydrogen TIG Wire, Solid, 100% Ar Shielding Gas, 22% Elongation, DCSP Polarity, 36" Length, 3/32"
(Pack of
10)
SKU:CW3068 Item#: CW3068
Maintenance engineered, all-position, high-strength, hydrogen-controlled electrodes and wires for difficult weldments of low carbon, low alloy and cast steels.
Superior Advantages
• Versatile – joins a wide variety of carbon and low alloy steels, can be used in all positions
• Strong – produces tough welds with high impact strength and elongation
Tensile Strength: 111,000 PSIYield Strength: 95,000 PSIElongation: 22%Polarity: DC StraightGas: 100% Ar
Typical Applications
• Heavy equipment repairs – buckets, liners, pins, etc.
• Structural members – H-beams, frames, angle iron
• Mild and low-alloy steels – chains and chain links
• Pipes and pipe flanges
• Rear end housings and spring block hangers
Frequently Bought Together
102 Tuff Plus High Strength Mild Steel Electrode 1/8
Couldn't load pickup availability
606 Duraweld M Mig Wire Maintenance Grade Mild Steel Solid Mig Wire
Couldn't load pickup availability
606 Duraweld M Mig Wire Maintenance Grade Mild Steel Solid Mig Wire
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
11-45 MIG Welding Contact Tip 0.045"
Couldn't load pickup availability
510 Aluminum TIG Wire 1/8"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 3/32"
Couldn't load pickup availability
Oxy-Therm Collet Grommet 1/4"
Couldn't load pickup availability
Oxy-Therm Collet Nut
Couldn't load pickup availability
Oxy-Therm System
Couldn't load pickup availability
Product Description
Maintenance engineered, all-position, high-strength, hydrogen-controlled electrodes and wires for difficult weldments of low carbon, low alloy and cast steels.Superior Advantages
• Versatile – joins a wide variety of carbon and low alloy steels, can be used in all positions
• Strong – produces tough welds with high impact strength and elongation
Tensile Strength: 111,000 PSIYield Strength: 95,000 PSIElongation: 22%Polarity: DC StraightGas: 100% Ar
Typical Applications
• Heavy equipment repairs – buckets, liners, pins, etc.
• Structural members – H-beams, frames, angle iron
• Mild and low-alloy steels – chains and chain links
• Pipes and pipe flanges
• Rear end housings and spring block hangers
Technical Specifications
| Item#: | CW3068 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 3/32 " |
| Length | 36 " |
| Tensile Strength | 111,000 PSI |
| Yield Strength | 95,000 PSI |
| Elongation | 22 % |
| Base Metal | Mild & Carbon Steel |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.0 lb |
