Home Welding Welding Alloys Dissimilar 333 Dissimilar Steel Stick Rod Electrode 1/8"
Dissimilar

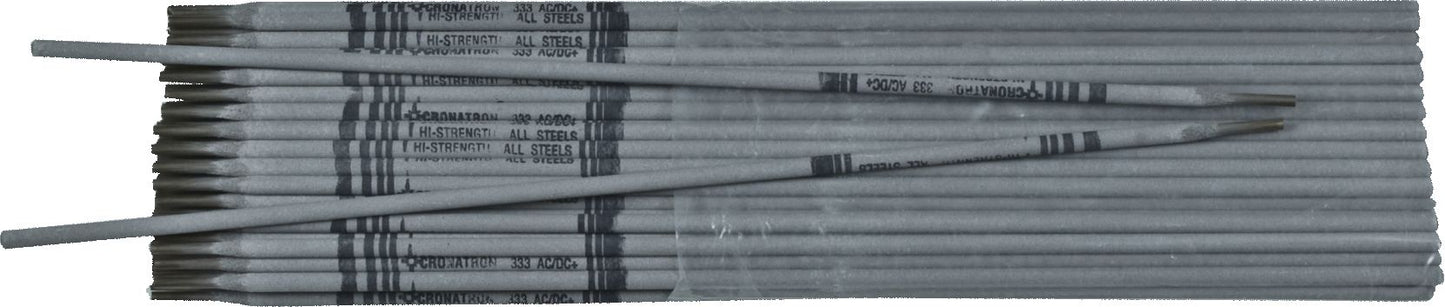

333 Dissimilar Steel Stick Rod Electrode 1/8
333 Dissimilar Steel Stick Rod Electrode 1/8

333 Dissimilar Steel Stick Rod Electrode, Flux Coated, 80 to 110 Amps, 35% Elongation, DCRP/DC+ or AC Polarity, 1/8"
(Pack of 5)

Item#: CW1048

Cronatron®

All-position alloys for joining dissimilar steels – provides high-strength, crack-free welds on all combinations of weldable steel.
333 Electrode – 1/8" Dia.
Cronatron Alloy
High-Strength Alloy for Broken Stud Extraction
80A – 110A (DCRP/DC+) or AC
Flat or Horizontal
3/8" to 5/8"
Superior Advantages
• Takes the guesswork out of alloy selection – can be used on ANY weldable steel
• High strength and elongation provide strong, crack-free welds
• Smooth, quiet arc, easy slag release
• Moisture-Resistant Coating
Tensile Strength: 125,000 PSI
Yield Strength: 100,000 PSI
Elongation: Up to 35%
Hardness: 235 BHN
Polarity: AC or DC Reverse
Usage ProcedureUse AC or DC reverse polarity. Maintain a medium to short arc. A stringer or weave bead is recommended for flat and horizontal welds.

Read More
Check Availability

Catalog page#: 13-4

Frequently Bought Together

Xl Gold Fc Dissimalar-Steel Flux Core Wire .045X33LBS

Xl Gold Fc Dissimalar-Steel Flux Core Wire .045X33LBS

Item#: EG60380062
333 Dissimilar Steel MIG Welding Wire 0.045

333 Dissimilar Steel MIG Welding Wire 0.045"

Item#: CW1786
333 Dissimilar Steel Stick Rod Electrode Kit, 35% Elongation

333 Dissimilar Steel Stick Rod Electrode Kit

Item#: LP854
12

12" Auto-Adjust Pliers

Item#: DY89310303
Self-Drilling Screw Hex Head #6-20 x 1/2

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931
Superbutt Connector 22 to 18 AWG Red, Superbutt Connector, Extended Barrel, Red, 22 to 18 AWG, 1.05

Superbutt Connector 22 to 18 AWG Red

Item#: 94727
Rosin Core Solder 1/16

Rosin Core Solder 1/16"

Item#: 20545
750 Martensitic Hard Facing Stick Electrode 1/8

750 Martensitic Hard Facing Stick Electrode 1/8"

Item#: CW1514
510 Aluminum TIG Wire 1/8

510 Aluminum TIG Wire 1/8"

Item#: CW1014
211 Cast Iron TIG Wire 1/8

211 Cast Iron TIG Wire 1/8"

Item#: CW1903
163 Arc-Cut Synthetic Carbon Arc Electrode

163 Arc-Cut Synthetic Carbon Arc Electrode

Item#: EG16300375
345 Tool Steel TIG Wire 0.035

345 Tool Steel TIG Wire 0.035"

Item#: CW1983

Product Description

All-position alloys for joining dissimilar steels – provides high-strength, crack-free welds on all combinations of weldable steel.
333 Electrode – 1/8" Dia.
Cronatron Alloy
High-Strength Alloy for Broken Stud Extraction
80A – 110A (DCRP/DC+) or AC
Flat or Horizontal
3/8" to 5/8"
Superior Advantages
• Takes the guesswork out of alloy selection – can be used on ANY weldable steel
• High strength and elongation provide strong, crack-free welds
• Smooth, quiet arc, easy slag release
• Moisture-Resistant Coating
Tensile Strength: 125,000 PSI
Yield Strength: 100,000 PSI
Elongation: Up to 35%
Hardness: 235 BHN
Polarity: AC or DC Reverse
Usage ProcedureUse AC or DC reverse polarity. Maintain a medium to short arc. A stringer or weave bead is recommended for flat and horizontal welds.

Technical Specifications

Item#: CW1048
Welding Process Stick
Type Flux Coated
Diameter 1/8 "
Tensile Strength 125,000 PSI
Yield Strength 100,000 PSI
Elongation 35 %
Polarity DCRP/DC+ or AC
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 5.41 lb
