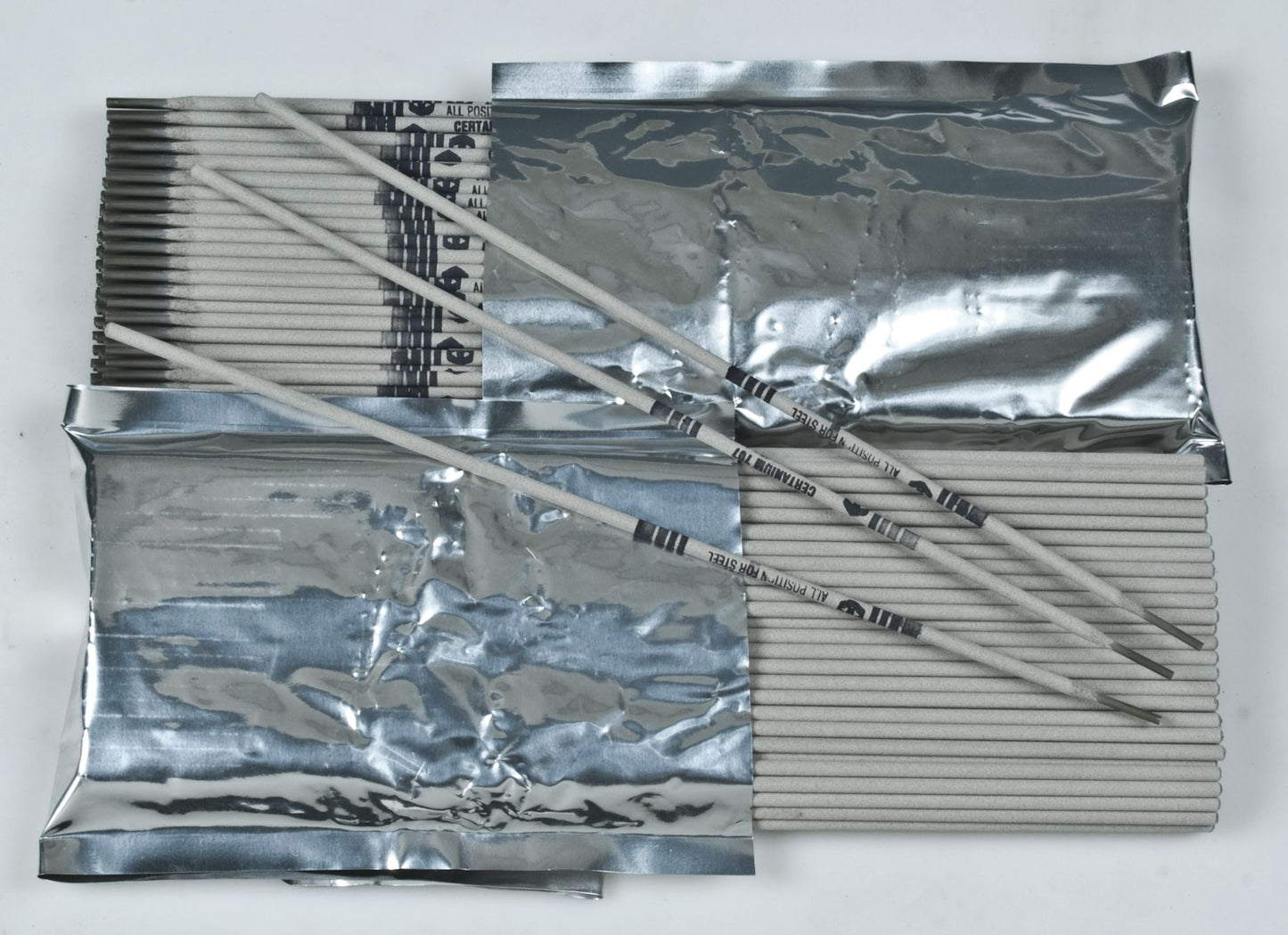

707 Dissimilar Steel Stick Rod Electrode, Flux Coated, 60 to 90 Amps, 20% Elongation, DCRP/AC Polarity, 3/32"
(Pack of
10)
SKU:P12565 Item#: P12565
All-position alloys for joining dissimilar steels – provides high-strength, crack-free welds on all combinations of weldable steel.
Superior Advantages
• Takes the guesswork out of alloy selection – can be used on ANY weldable steel
• High strength and elongation provide strong, crack-free welds
• Smooth, quiet arc, easy slag release
Tensile Strength: 120,000 PSI
Yield Strength: Up to 96,000 PSI
Elongation: 20%
Hardness: Rc 20-23
Polarity: AC or DC
Typical Applications
• Automotive and trucking
• Rotors, blades and augers
• Pump and cast steel housings
• Broken stud removal
• Tool steels
Frequently Bought Together
333 Dissimilar Steel Stick Rod Electrode 1/16"
Couldn't load pickup availability
Dissimilar Steel Stick Rod Electrode Kit
Couldn't load pickup availability
X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 1/8
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
22-50 MIG Welding Nozzle 1/2"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
Round Soapstone Holder Heavy Duty
Couldn't load pickup availability
321 Mild and Carbon Steel TIG Wire 1/8"
Couldn't load pickup availability
665 Copper and Brass TIG Wire 1/16"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 1/8"
Couldn't load pickup availability
Product Description
All-position alloys for joining dissimilar steels – provides high-strength, crack-free welds on all combinations of weldable steel.Superior Advantages
• Takes the guesswork out of alloy selection – can be used on ANY weldable steel
• High strength and elongation provide strong, crack-free welds
• Smooth, quiet arc, easy slag release
Tensile Strength: 120,000 PSI
Yield Strength: Up to 96,000 PSI
Elongation: 20%
Hardness: Rc 20-23
Polarity: AC or DC
Typical Applications
• Automotive and trucking
• Rotors, blades and augers
• Pump and cast steel housings
• Broken stud removal
• Tool steels
Technical Specifications
| Item#: | P12565 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/32 " |
| Tensile Strength | 120,000 PSI |
| Yield Strength | 96,000 PSI |
| Elongation | 20 % |
| Hardness | 20-23 HRC |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.49 lb |
Product Restrictions
