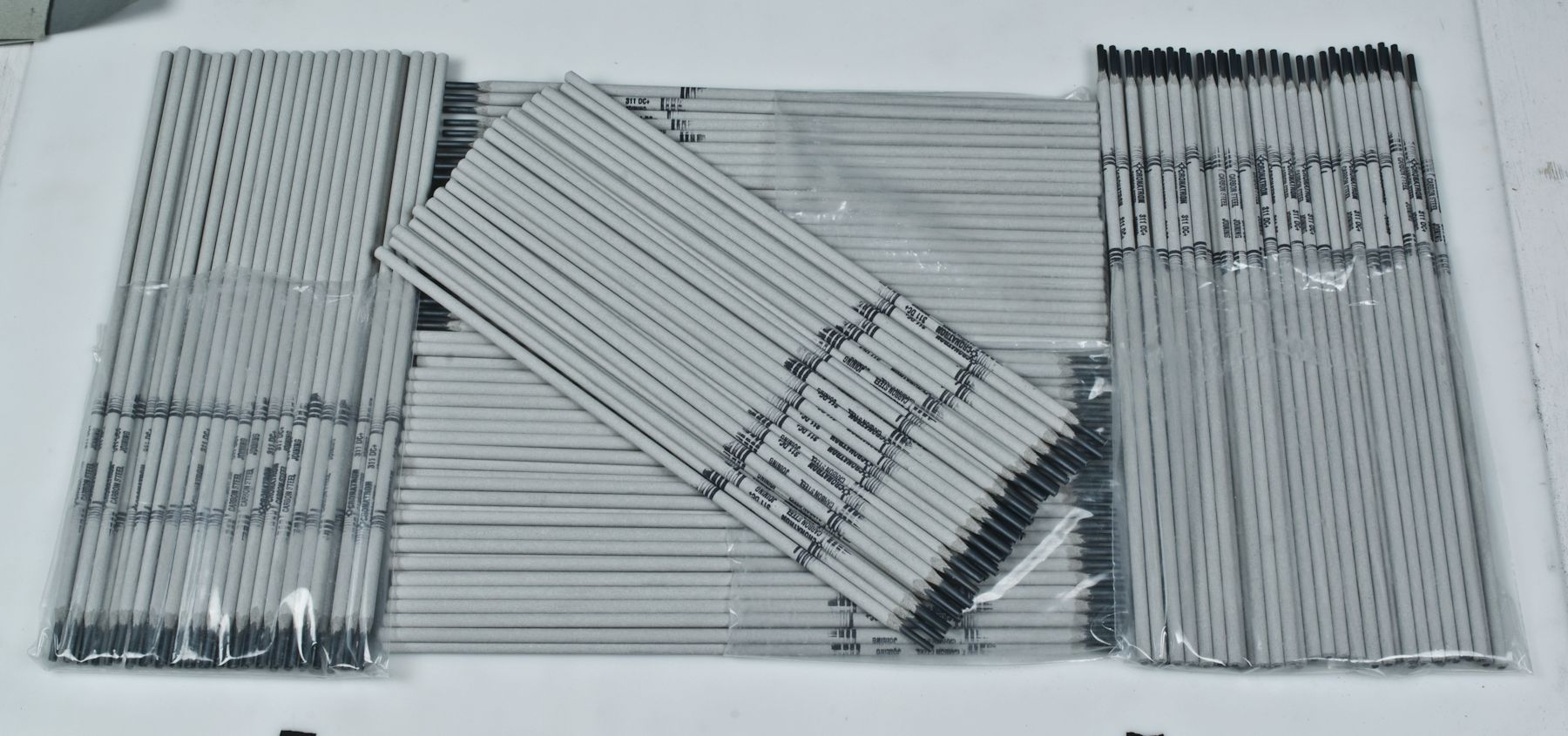

360 Mild and Carbon Steel Stick Rod Electrode, Flux Coated, 80 to 140 Amps, 29% Elongation, DCRP Polarity, 1/8"
(Pack of
10)
SKU:CW3330 Item#: CW3330
Formulated to cut through rust and other contaminants, providing solid, sound and dense weld deposits on all types of mild steel.
Superior Advantages
• Saves time – welds through all types of contaminants
• Deep penetrating for pipe root passes
• Produces strong, dense weld deposits
The Pipe Pal
Tensile Strength: 79,500 PSIYield Strength: 67,000 PSIElongation: 29%Polarity: DC Reverse
Cronaweld 360P is ideally suited for depositing open root passes where good interior bead appearance and complete penetration are required.
Applications
• Sheet, plates, angles, beams, channels and joining of all mild steel structures
• Galvanized sheet
• Machinery and machine parts
• Automotive and truck bodies
• Pipes, tanks, containers
Usage ProcedureMaintain a short arc but do not contact the molten puddle. A slight oscillating motion is recommended for flat and horizontal positions. Use a slight weave for vertical and overhead welding. Vertical-down welds should be made at approximately the same amperages as recommended for the flat position.
Frequently Bought Together
Premium Grinding Wheel 4-1/2"
Couldn't load pickup availability
Hex Cap Screw Property Class 12.9 M20-2.5 x 80mm
Couldn't load pickup availability
CryoBoost 3/8" Dia. 1/4" Hex Shank Drill Bit
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
701 Mild/Carbon Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
311 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
510 Aluminum TIG Wire 3/32"
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Three Flint Striker
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 5/32"
Couldn't load pickup availability
556 Aluminum TIG Wire 1/16"
Couldn't load pickup availability
Product Description
Formulated to cut through rust and other contaminants, providing solid, sound and dense weld deposits on all types of mild steel.Superior Advantages
• Saves time – welds through all types of contaminants
• Deep penetrating for pipe root passes
• Produces strong, dense weld deposits
The Pipe Pal
Tensile Strength: 79,500 PSIYield Strength: 67,000 PSIElongation: 29%Polarity: DC Reverse
Cronaweld 360P is ideally suited for depositing open root passes where good interior bead appearance and complete penetration are required.
Applications
• Sheet, plates, angles, beams, channels and joining of all mild steel structures
• Galvanized sheet
• Machinery and machine parts
• Automotive and truck bodies
• Pipes, tanks, containers
Usage ProcedureMaintain a short arc but do not contact the molten puddle. A slight oscillating motion is recommended for flat and horizontal positions. Use a slight weave for vertical and overhead welding. Vertical-down welds should be made at approximately the same amperages as recommended for the flat position.
Technical Specifications
| Item#: | CW3330 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Base Metal | Mild & Carbon Steel |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 11.0 lb |
Product Restrictions
