Home Welding Welding Alloys Aluminum 510 Aluminum TIG Wire 3/32"
Aluminum

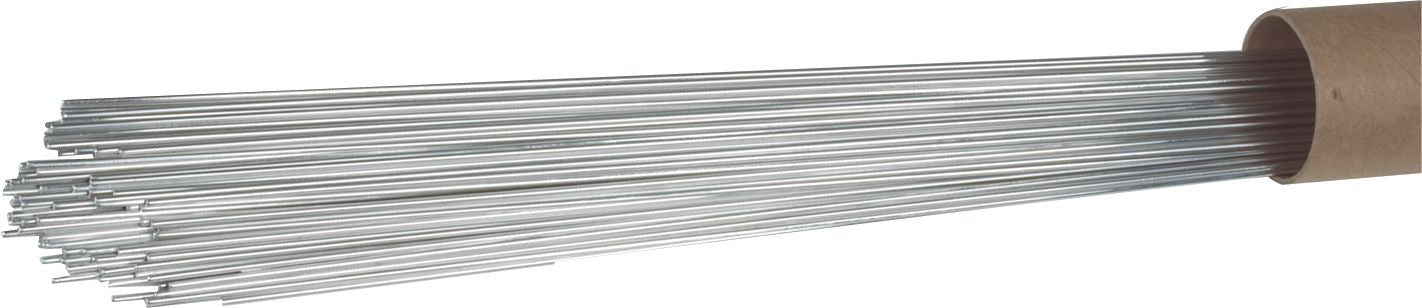

510 Aluminum TIG Wire 3/32
510 Aluminum TIG Wire 3/32

510 Aluminum TIG Wire, 100% Ar Shielding Gas, AC High Frequency Polarity, 36" Length, Quiet Arc, 3/32"
(Pack of 2)

Item#: CW1015

Cronatron®

Highly versatile alloys for all weldable types of aluminum including sheet, forgings, extrusions and castings.
Superior Advantages
• Stable, quiet arc with no undercutting
• Good corrosion resistance
Tensile Strength: 35,000 PSI
Polarity: AC/High Frequency
Gas: Argon/Helium
Usage ProcedureBevel heavy sections to allow 100% weld metal penetration. Sprinkle F56 flux into the joint area. Broadly heat area to be brazed with a large, soft and slightly carburizing flame to about 1,100°F (593°C). Heat the base metal until flux flows freely. The alloy will then begin to wet the base metal. Deposit the 510T to fill the joint. Flux residue may be removed with warm water and a brush.

Read More
Check Availability

Catalog page#: 13-16

Frequently Bought Together

ER5356 Aluminum TIG Wire 3/32

ER4043 Aluminum TIG Wire 1/8"

Item#: 41743
141 Aluminum Stick Electrode 1/8

141 Aluminum Stick Electrode 5/32

Item#: EG14130000
241T Aluminum Solid Tig Wire 3/32X36

241T Aluminum Solid Tig Wire 3/32X36

Item#: EG2005241T
SAE Flat Washer Thru-Hardened Steel 5/16

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436
Self-Drilling Screw Hex Head #6-20 x 1/2

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539
USS Flat Washer Thru-Hardened Steel 5/16

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446
331 Mild and Carbon Steel MIG Welding Wire 0.035

331 Mild and Carbon Steel MIG Welding Wire 0.035"

Item#: CW3777
Oxy-Therm Cutting Rod 1/4 x 24

Oxy-Therm Cutting Rod 1/4 x 24"

Item#: CW3617
510 Aluminum MIG Welding Wire 0.035

510 Aluminum MIG Welding Wire 0.035"

Item#: CW1940
344 Tool Steel TIG Wire 1/16

344 Tool Steel TIG Wire 1/16"

Item#: CW1886
163 Arc-Cut Synthetic Carbon Arc Electrode

163 Arc-Cut Synthetic Carbon Arc Electrode

Item#: EG16300375
345 Tool Steel TIG Wire 0.035

345 Tool Steel TIG Wire 0.035"

Item#: CW1983

Product Description

Highly versatile alloys for all weldable types of aluminum including sheet, forgings, extrusions and castings.
Superior Advantages
• Stable, quiet arc with no undercutting
• Good corrosion resistance
Tensile Strength: 35,000 PSI
Polarity: AC/High Frequency
Gas: Argon/Helium
Usage ProcedureBevel heavy sections to allow 100% weld metal penetration. Sprinkle F56 flux into the joint area. Broadly heat area to be brazed with a large, soft and slightly carburizing flame to about 1,100°F (593°C). Heat the base metal until flux flows freely. The alloy will then begin to wet the base metal. Deposit the 510T to fill the joint. Flux residue may be removed with warm water and a brush.

Technical Specifications

Item#: CW1015
Welding Process TIG
Type Solid
Diameter 3/32 "
Length 36 "
Tensile Strength 35,000 PSI
Base Metal Aluminum
Shielding Gas 100% Ar
Polarity AC High Freq
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 2.0 lb
