Hardfacing Alloys
176 Extreme Abrasion With Impact 1/4X18IN
176 Extreme Abrasion With Impact 1/2X18IN
176 Extreme Abrasion With Impact 1/4X18IN
176 Extreme Abrasion With Impact 1/2X18IN

176 Hard Facing Alloy Complex Carbides Excellent Wear And Moderate Impact Polarity Dc Or Ac Hardness 62-64Rc Number Of Passes 2
(Pack of 5)

Item#: EG17610250

Lawson Products

A hardfacing alloy using elements traditionally found in superalloys. These alloys form complex carbides that exhibit excellent wear and moderate impact resistance. This combination coupled with special stabilizers make it ideal for hardfacing.
• Improved Alloy, 64 Rc – Lasts longer than other hardfacing by up to ten times
• 96% Deposition Efficiency – Almost twice as much metal deposited as a regular electrode
• All Position – 1/4" diameter provides all-position welding, even vertical up
• Operates at Lower Amperages – Reduces base metal dilution to produce longer wearing deposits
• 1/4" can be used on bucket lips as thin as 3/16'' thick
• Designed to withstand abrasion up to 1000ËšF/538ËšC with good shock and impact resistance
• For use on carbon and abrasion resistant alloy steels including overlaying manganese steels
• Cross-checks readily
• Hardness: 62-64 Rc
• Max Number of Passes: 2
• Current: DC or AC
• Abrasion Resistance: Excellent, 25 times greater than mild steel
• ASTM G65 Abrasion Test: 019.7mm³ vol. loss

Read More
Check Availability

Frequently Bought Together

7500 Martensitic MIG Welding Wire 0.045

7500 Martensitic MIG Welding Wire 0.045"

Item#: CW5169
706 Hard Facing Buildup Stick Rod Electrode 3/32

706 Hard Facing Buildup Stick Rod Electrode 3/32"

Item#: P12785
706 Hard Facing Buildup Stick Rod Electrode 1/8

706 Hard Facing Buildup Stick Rod Electrode 1/8"

Item#: P12775
676 Flux Core Wire Extreme Abrasion Moderate Impact .045X33LBS

676 Flux Core Wire Extreme Abrasion Moderate Impact 1/16X33LBS

Item#: EG67680062

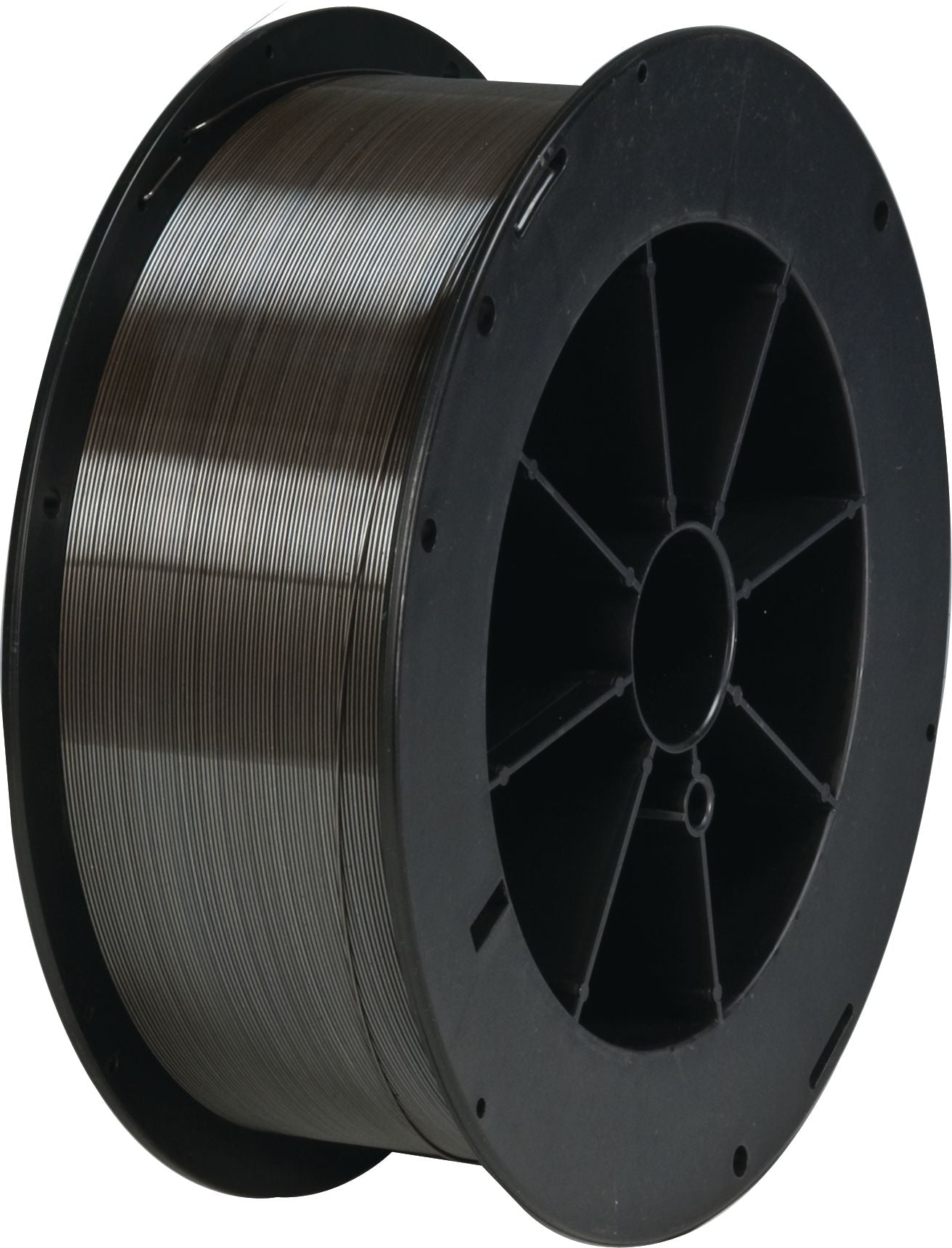

H4 Carbide Hard Facing MIG Welding Wire 0.045

H4 Carbide Hard Facing MIG Welding Wire 0.045"

Item#: CW6051
174 Gray High Abrasion Moderate Impact 3/32

174 Gray High Abrasion Moderate Impact 3/32

Item#: EG17450000
IFI 100/107 Top Locknut Grade C 1-8, IFI 100/107 Top Locknut, Grade C, Alloy Steel, Zinc/Wax Finish, Coarse Thread

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933
Cross-Over Socket Extension Set, 3/4

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980
Oxy Acetylene Fuel and Oxygen Quick Connector, Brass, B Standard

Oxy Acetylene Fuel and Oxygen Quick Connector

Item#: CW1407
Oxy Acetylene Fuel Gas Tip Cleaner, Standard Oxy Acetylene Fuel Gas Tip Cleaner

Oxy Acetylene Fuel Gas Tip Cleaner

Item#: CW1337
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"

Item#: 41756

Product Description

A hardfacing alloy using elements traditionally found in superalloys. These alloys form complex carbides that exhibit excellent wear and moderate impact resistance. This combination coupled with special stabilizers make it ideal for hardfacing.
• Improved Alloy, 64 Rc – Lasts longer than other hardfacing by up to ten times
• 96% Deposition Efficiency – Almost twice as much metal deposited as a regular electrode
• All Position – 1/4" diameter provides all-position welding, even vertical up
• Operates at Lower Amperages – Reduces base metal dilution to produce longer wearing deposits
• 1/4" can be used on bucket lips as thin as 3/16'' thick
• Designed to withstand abrasion up to 1000ËšF/538ËšC with good shock and impact resistance
• For use on carbon and abrasion resistant alloy steels including overlaying manganese steels
• Cross-checks readily
• Hardness: 62-64 Rc
• Max Number of Passes: 2
• Current: DC or AC
• Abrasion Resistance: Excellent, 25 times greater than mild steel
• ASTM G65 Abrasion Test: 019.7mm³ vol. loss

Technical Specifications

Item#: EG17610250
Welding Process Stick
Type Electrode
Diameter 1/4 "
Base Metal Steel To Steel
Hardness 62-64 HRC
Polarity DCEP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 6.31 lb

Product Restrictions

Suggested Products

750 Martensitic Hard Facing Stick Electrode 1/8

750 Martensitic Hard Facing Stick Electrode 1/8"

Item#: CW1514
7770 Hard Facing Buildup Stick Rod Electrode 3/16

7770 Hard Facing Buildup Stick Rod Electrode 3/16"

Item#: CW1878
7770 Hard Facing Buildup Stick Rod Electrode 1/8

7770 Hard Facing Buildup Stick Rod Electrode 1/8"

Item#: CW1880
H3 Martensitic Hard Facing MIG Welding Wire 0.045

H3 Martensitic Hard Facing MIG Welding Wire 0.045"

Item#: CW6041
7770 Hard Facing Buildup Stick Rod Electrode 1/4

7770 Hard Facing Buildup Stick Rod Electrode 1/4"

Item#: CW1876
375 Mild and Carbon Steel MIG Welding Wire 1/16

706 Hard Facing Buildup MIG Welding Wire 0.045"

Item#: P19557
676 Flux Core Wire Extreme Abrasion Moderate Impact .045X33LBS

676 Flux Core Wire Extreme Abrasion Moderate Impact .045X33LBS

Item#: EG67680045

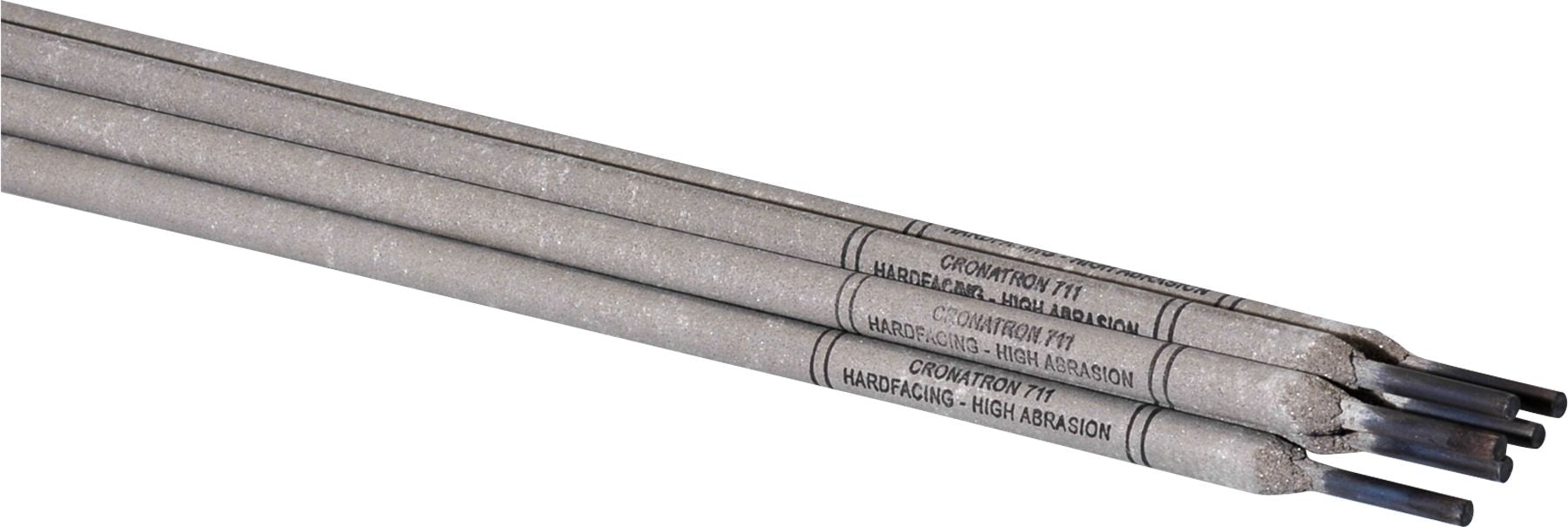

711 Carbide Hard Facing Stick Rod Electrode 5/32
