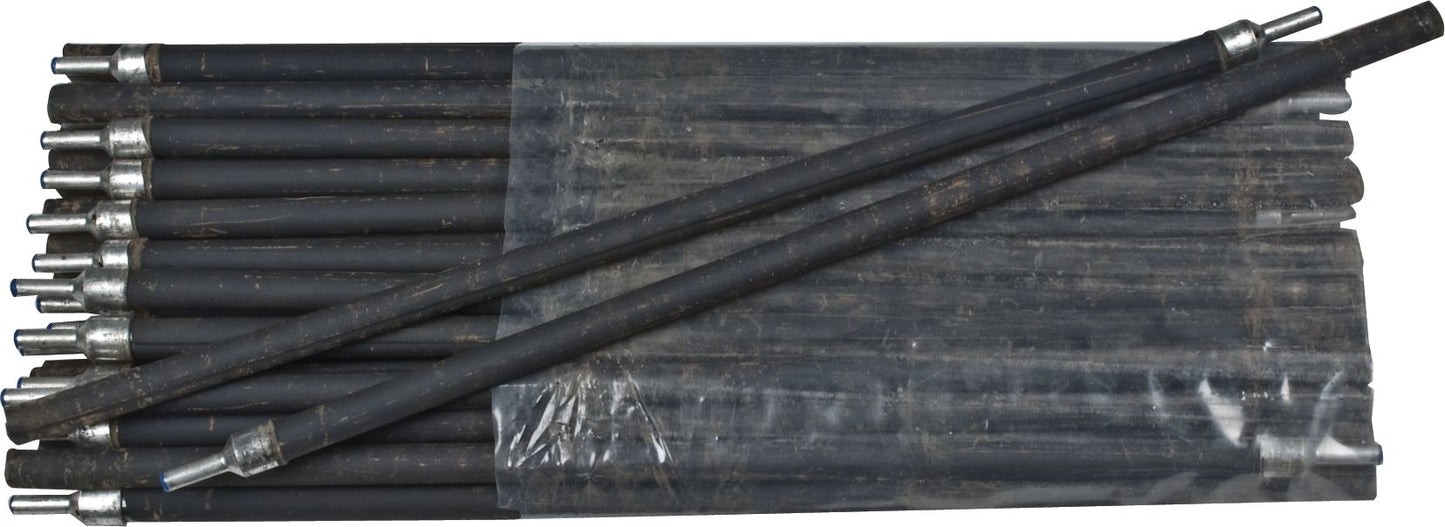

7355 Carbide Hard Facing Stick Rod Electrode, 51 to 61 HRC Hardness, 140 to 300 Amps, AC/DCRP Polarity, 18" Length, 1/2"
(Pack of
25)
SKU:CW1914 Item#: CW1914
Enhance the durability and performance of your equipment with the 7355 Carbide Hardfacing Stick Rod Electrode. Engineered specifically for high abrasion resistance in low to moderate impact conditions, this hardfacing electrode is ideal for earthmoving equipment, agricultural tools, and other components exposed to wear and tear. Designed for the versatility professionals need, it supports AC or DC reverse polarity and excels in out-of-position welding, making vertical and overhead applications hassle-free. Perfect for austenitic manganese steel, the 7355 ensures exceptional abrasion resistance while extending the lifespan of vital parts.
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
Hardness: Rc 62 (2nd pass)No. of Passes: Up to threePolarity: AC or DC Reverse
Can be used for out-of-position welding
Typical Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.
Frequently Bought Together
178 Ultimate Abrasion Resistance 3/8X18IN
Couldn't load pickup availability
174 Gray High Abrasion Moderate Impact 1/8
Couldn't load pickup availability
173 Multi Purpose High Deposition Alloy For Joining And Build Up 1/8
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 1/8"
Couldn't load pickup availability
675 Hi Brade Fc High Abrasion Moderate Impact .035X25LBS
Couldn't load pickup availability
7310 Carbide Hard Facing MIG Welding Wire 1/16"
Couldn't load pickup availability
Auto-Darkening Panoramic View Welding Helmet
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 3/32"
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 1/8"
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
345 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
Enhance the durability and performance of your equipment with the 7355 Carbide Hardfacing Stick Rod Electrode. Engineered specifically for high abrasion resistance in low to moderate impact conditions, this hardfacing electrode is ideal for earthmoving equipment, agricultural tools, and other components exposed to wear and tear. Designed for the versatility professionals need, it supports AC or DC reverse polarity and excels in out-of-position welding, making vertical and overhead applications hassle-free. Perfect for austenitic manganese steel, the 7355 ensures exceptional abrasion resistance while extending the lifespan of vital parts.• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
Hardness: Rc 62 (2nd pass)No. of Passes: Up to threePolarity: AC or DC Reverse
Can be used for out-of-position welding
Typical Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.
Technical Specifications
| Item#: | CW1914 |
|---|---|
| Welding Process | Stick |
| Type | Tubular |
| Diameter | 1/2 " |
| Length | 18 " |
| Base Metal | Carbide |
| Carbide Type | Chromium |
| Hardness | 51-61 HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 25.0 lb |
Product Restrictions
