Home Welding Hardfacing Alloys Low Abrasion/High Impact (Austenitic) 194 High Impact Manganese Steel Alloy 1/8
Hardfacing Alloys

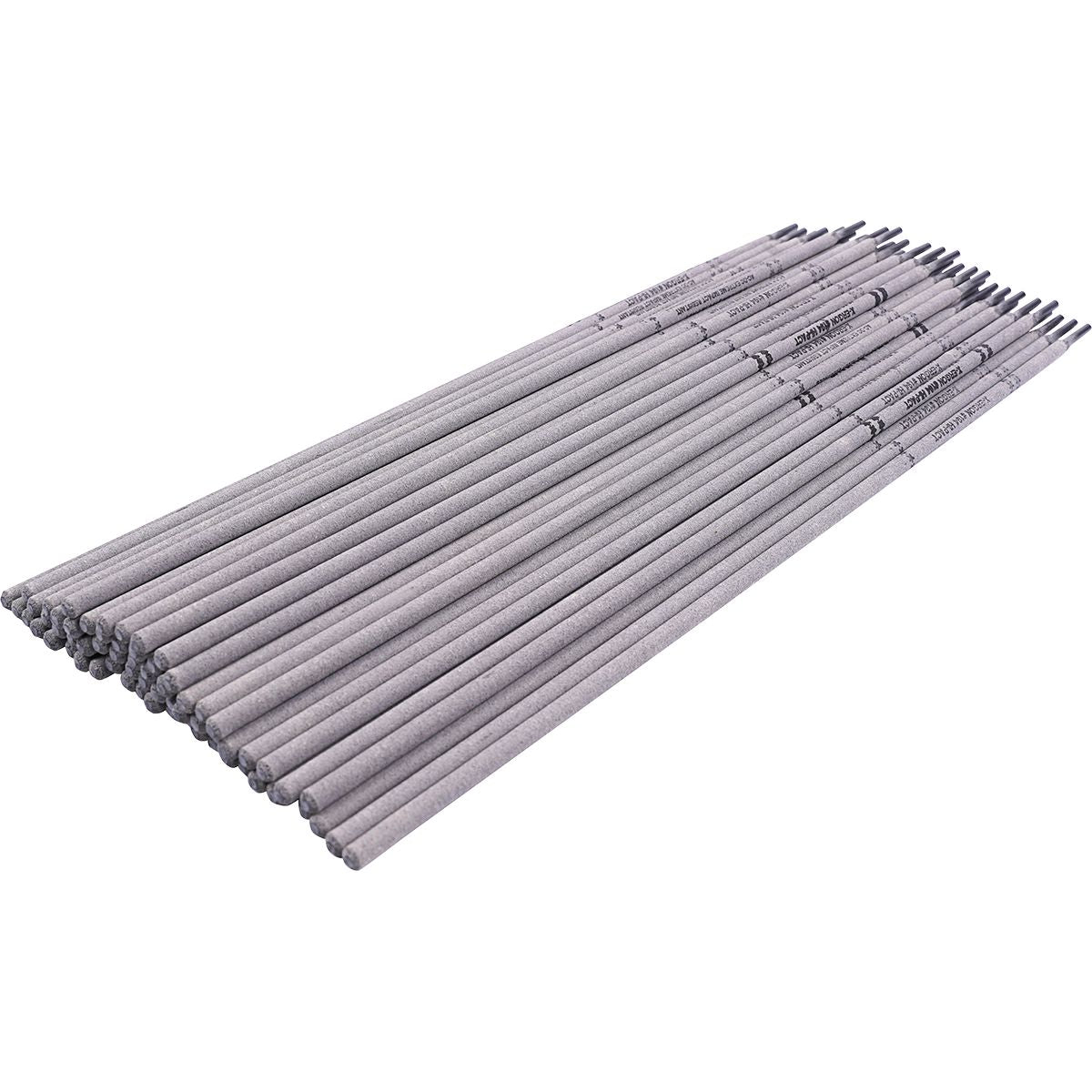

194 High Impact Manganese Steel Alloy 1/8
194 High Impact Manganese Steel Alloy 1/8

194 Specifically For Manganese Steels Low Hydrogen Flux Torch Cuttable All Position Polarity Dcep Or Ac 90Rb 48Rc Unlimited Passes
(Pack of 5)

Item#: EG19440000

Lawson Products

Designed specifically for use on manganese steels. Use on carbon or low alloy steels may cause underbead cracks.
• Low Hydrogen Coating – Superior crack resistance
• Torch Cuttable – No arc gouging necessary
• Work hardens for toughness
• All-position control
• Excellent for multipass buildups
• Tensile Strength: 127,000 PSI/875 MPa
• Hardness:
– As deposited: 90 Rb
– Work Hardened: 48 Rc
• Yield Strength: 65,000 PSI/447 MPa
• Elongation: 50%
• Impact Strength (Charpy): 65 ft.-lbs. @ 0°F/-18°C
• Machinability: Good (carbide tools recommended)
• Max Number of Passes: Unlimited
• Current: DCEP (DC+) or AC

Read More
Check Availability

Frequently Bought Together

7350 Carbide Hard Facing Stick Rod Electrode 1/4

7350 Carbide Hard Facing Stick Rod Electrode 1/4"

Item#: CW1916
H7 Carbide Hard Facing MIG Welding Wire 1/16

H7 Carbide Hard Facing MIG Welding Wire 1/16"

Item#: CW6086
7770 Hard Facing Buildup Stick Rod Electrode 3/32

7770 Hard Facing Buildup Stick Rod Electrode 3/32"

Item#: CW1881
777 Austenitic Hard Facing Stick Electrode 1/8

777 Austenitic Hard Facing Stick Electrode 1/8"

Item#: CW1063
7109 Austenitic Hard Facing Welding Wire 0.045

7109 Austenitic Hard Facing Welding Wire 0.045"

Item#: CW3587
777 Austenitic Hard Facing Stick Electrode 5/32

777 Austenitic Hard Facing Stick Electrode 5/32"

Item#: CW1062
Interchangeable Hex Bit Set 20Pc Torx, 20 Pc, Interchangeable Torx Quick Release Hex Bit Set

Interchangeable Hex Bit Set 20Pc Torx

Item#: DY89310522
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511
Superbutt Connector 16 to 14 AWG Blue, Superbutt Connector, Extended Barrel, Blue, 16 to 14 AWG, 1.075

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728
333 Dissimilar Steel TIG Wire 3/32

333 Dissimilar Steel TIG Wire 3/32"

Item#: CW1899
345 Tool Steel TIG Wire 1/16

345 Tool Steel TIG Wire 1/16"

Item#: CW1888
Oxy-Therm Cutting Rod 3/8 x 36

Oxy-Therm Cutting Rod 3/8 x 36"

Item#: CW3620

Product Description

Designed specifically for use on manganese steels. Use on carbon or low alloy steels may cause underbead cracks.
• Low Hydrogen Coating – Superior crack resistance
• Torch Cuttable – No arc gouging necessary
• Work hardens for toughness
• All-position control
• Excellent for multipass buildups
• Tensile Strength: 127,000 PSI/875 MPa
• Hardness:
– As deposited: 90 Rb
– Work Hardened: 48 Rc
• Yield Strength: 65,000 PSI/447 MPa
• Elongation: 50%
• Impact Strength (Charpy): 65 ft.-lbs. @ 0°F/-18°C
• Machinability: Good (carbide tools recommended)
• Max Number of Passes: Unlimited
• Current: DCEP (DC+) or AC

Technical Specifications

Item#: EG19440000
Welding Process Stick
Type Electrode
Diameter 1/8 "
Base Metal Manganese Steel
Hardness 48 HRC
Polarity DCEP
UNSPSC #: 23271810
TAA Compliant: No
Weight: 6.05 lb
