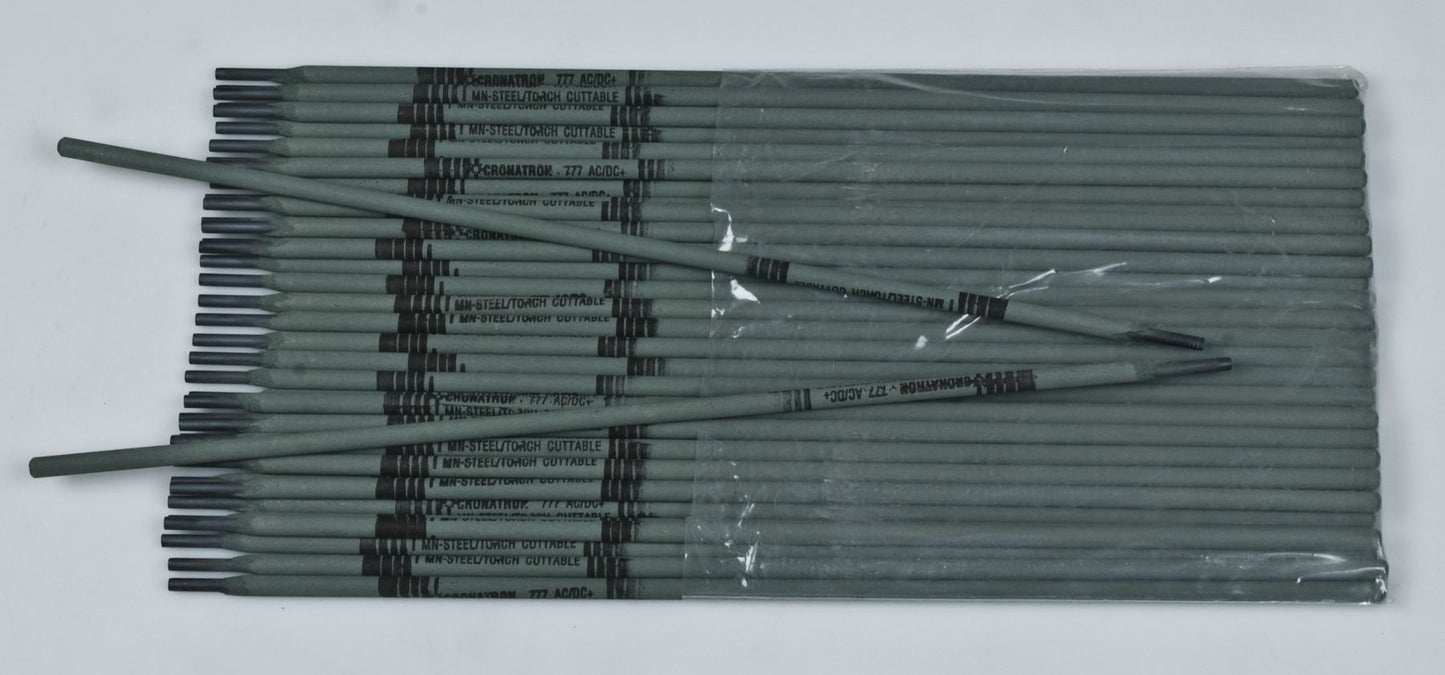

777 Austenitic High Impact Hard Facing Stick Rod Electrode, 43 to 47 (WH) HRC Hardness, 125 to 170 Amps, AC/DCRP Polarity, 5/32"
(Pack of
5)
SKU:CW1062 Item#: CW1062
Designed for low abrasion resistance and high impact situations.
Superior Advantages
• Work hardens under heavy impact conditions
• Unlimited pass-over-pass applications
• High operator appeal – smooth running, quiet and minimal sparks
For severe impact and extreme shock (torch cuttable)
Tensile Strength: 116,000 PSI Hardness: Rc 47 Polarity: AC or DC Reverse
Elongation: 38%
Typical Applications
• Bucket teeth
• Hammer mill and mill swing hammers
• Tampers and jackhammers
• Impactor crusher bars
Usage ProcedureUse AC or DC reverse polarity with normal maintenance welding procedures. Surface area should be clean and dry, however, CERTANIUM 777 is manufactured with special cleansing and fluxing agents to promote sound welds under most conditions. For vertical-down welding, hold a short arc and tilt the electrode 10° in the direction of travel, using a stringer bead technique.
Technical TipWhen joining manganese steels, use skip-welding technique to avoid temperature increase in a localized area. Do not preheat manganese steel. Interpass temperature should not exceed 500°F (260°C).
Frequently Bought Together
178 Ultimate Abrasion Resistance 3/8X18IN
Couldn't load pickup availability
174 Gray High Abrasion Moderate Impact 1/8
Couldn't load pickup availability
173 Multi Purpose High Deposition Alloy For Joining And Build Up 1/8
Couldn't load pickup availability
672 Extreme Impact And Abrasion Resistant Flux Cored Alloy .045X25LB
Couldn't load pickup availability
194 High Impact Manganese Steel Alloy 3/32
Couldn't load pickup availability
173 Multi Purpose High Deposition Alloy For Joining And Build Up 5/32
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
345 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
Designed for low abrasion resistance and high impact situations.Superior Advantages
• Work hardens under heavy impact conditions
• Unlimited pass-over-pass applications
• High operator appeal – smooth running, quiet and minimal sparks
For severe impact and extreme shock (torch cuttable)
Tensile Strength: 116,000 PSI Hardness: Rc 47 Polarity: AC or DC Reverse
Elongation: 38%
Typical Applications
• Bucket teeth
• Hammer mill and mill swing hammers
• Tampers and jackhammers
• Impactor crusher bars
Usage ProcedureUse AC or DC reverse polarity with normal maintenance welding procedures. Surface area should be clean and dry, however, CERTANIUM 777 is manufactured with special cleansing and fluxing agents to promote sound welds under most conditions. For vertical-down welding, hold a short arc and tilt the electrode 10° in the direction of travel, using a stringer bead technique.
Technical TipWhen joining manganese steels, use skip-welding technique to avoid temperature increase in a localized area. Do not preheat manganese steel. Interpass temperature should not exceed 500°F (260°C).
Technical Specifications
| Item#: | CW1062 |
|---|---|
| Welding Process | Stick |
| Type | Stick Electrode |
| Diameter | 5/32 " |
| Base Metal | Austenitic |
| Hardness | 43-47 (WH) HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
