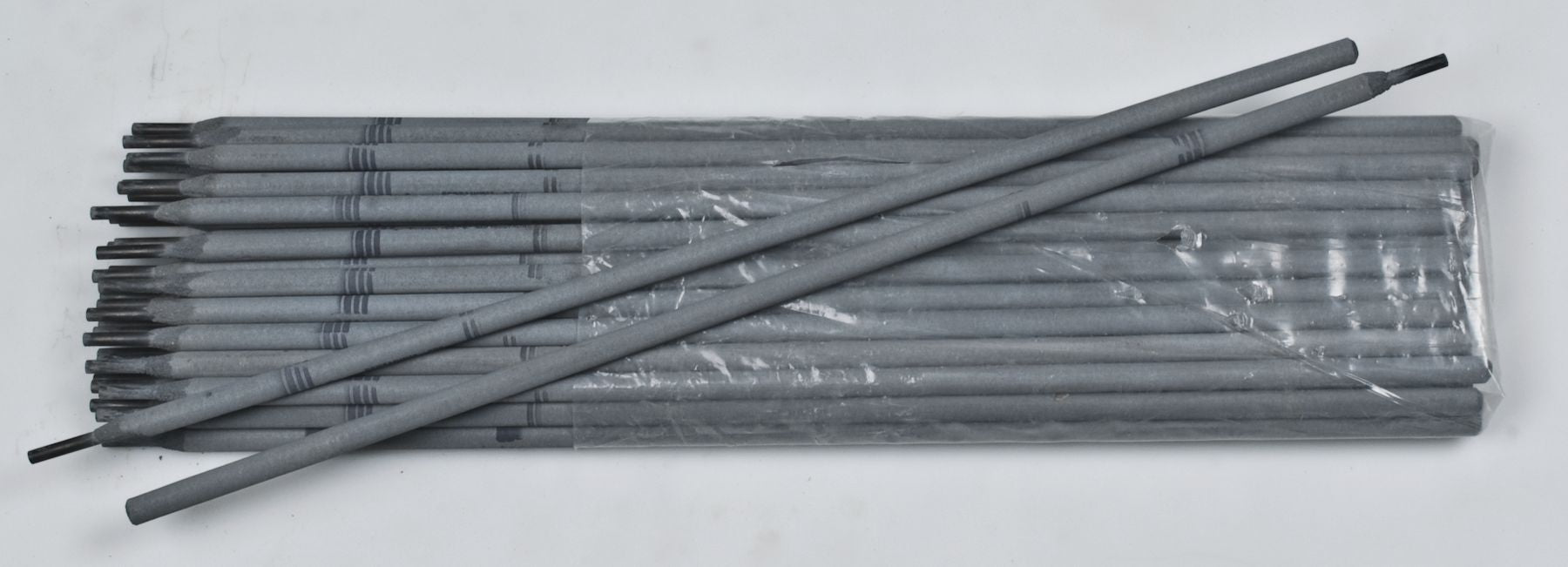

7770 Multi-Purpose Hard Facing Buildup Stick Rod Electrode, 40 to 45 (WH) HRC Hardness, 220 to 270 Amps, AC/DCRP Polarity, 3/16"
(Pack of
5)
SKU:CW1878 Item#: CW1878
Work hardening alloy for high impact and compressive loads
Superior Advantages
• Versatile – easy to use on all steels
• Resists cracking
• Increased deposition rates save time and money
• Work hardens under impact
All-position alloy for buildup on all types of steel
Elongation: 35%Hardness: Rc 45, work-hardenedPolarity: AC or DC Reverse
Typical Applications
• Shaft buildup
• Equipment part repairs – gears, booms, crusher rolls and hammers
• Welding alloy steel to manganese steel
• Frogs and switch points
• Buildup and overlay for hardfacing
• Repairs on all types of steels including manganese and stainless
• Ideal for crusher rolls, jaws, frog and switch railroad repairs
Usage ProcedureUse AC or DC reverse polarity. Electrode may be used in contact or by holding an arc. When used for joining, stringer beads are best. When used as a build-up, weaving is acceptable. Manganese steel should be kept below 550°F (288°C) by skip welding or artificial cooling. Prior to build-up, all fatigued, cracked, or spalled material should be removed. Chip slag between passes.CANNOT BE TORCH CUT
Frequently Bought Together
7770 Hard Facing Buildup Stick Rod Electrode 3/32"
Couldn't load pickup availability
170 Build Up Of Carbon And Low Alloy Steels 3/16
Couldn't load pickup availability
170 Build Up Of Carbon And Low Alloy Steels 5/32
Couldn't load pickup availability
750 Martensitic Stick Rod Electrode 5/32"
Couldn't load pickup availability
172 Intermediate Abrasion And Impact Alloy 5/32X18
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 5/32"
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
344 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
Oxy-Therm Cutting Rod 3/8 x 24"
Couldn't load pickup availability
40 High Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
Product Description
Work hardening alloy for high impact and compressive loadsSuperior Advantages
• Versatile – easy to use on all steels
• Resists cracking
• Increased deposition rates save time and money
• Work hardens under impact
All-position alloy for buildup on all types of steel
Elongation: 35%Hardness: Rc 45, work-hardenedPolarity: AC or DC Reverse
Typical Applications
• Shaft buildup
• Equipment part repairs – gears, booms, crusher rolls and hammers
• Welding alloy steel to manganese steel
• Frogs and switch points
• Buildup and overlay for hardfacing
• Repairs on all types of steels including manganese and stainless
• Ideal for crusher rolls, jaws, frog and switch railroad repairs
Usage ProcedureUse AC or DC reverse polarity. Electrode may be used in contact or by holding an arc. When used for joining, stringer beads are best. When used as a build-up, weaving is acceptable. Manganese steel should be kept below 550°F (288°C) by skip welding or artificial cooling. Prior to build-up, all fatigued, cracked, or spalled material should be removed. Chip slag between passes.CANNOT BE TORCH CUT
Technical Specifications
| Item#: | CW1878 |
|---|---|
| Welding Process | Stick |
| Type | Stick Electrode |
| Diameter | 3/16 " |
| Base Metal | Multi-Purpose |
| Hardness | 40-45 (WH) HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
