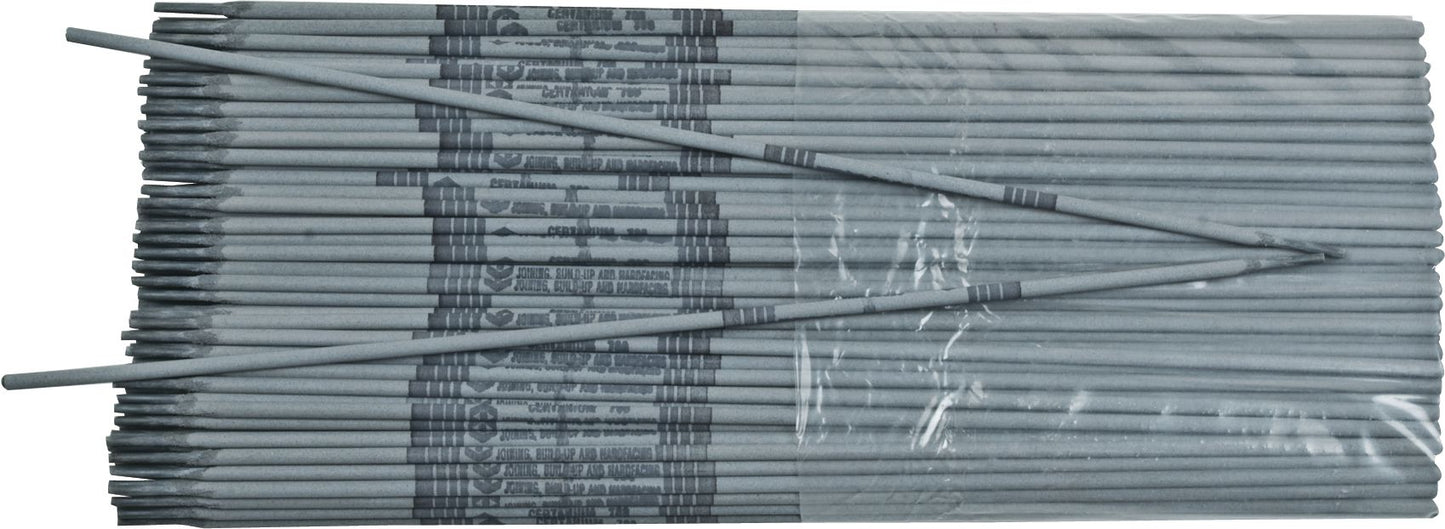

706 Multi-Purpose Hard Facing Buildup Stick Rod Electrode, 40 to 45 (WH) HRC Hardness, 65 to 100 Amps, AC/DCRP Polarity, 3/32"
(Pack of
10)
SKU:P12785 Item#: P12785
Alloys for repairs and buildup prior to overlaying with more abrasion-resistant hardfacing.
Superior Advantages
• Versatile – easy to use on all steels
• Resists cracking
• Increased deposition rates save time and money
• Work hardens under impact
Buildup for hardfacing, joining manganese, carbon steels and stainless steels
Tensile Strength: 101,000 PSIElongation: 34%Hardness: Rc 45, work-hardenedPolarity: AC or DC Reverse
Typical Applications
• Shaft buildup
• Equipment part repairs – gears, booms, crusher rolls and hammers
• Welding alloy steel to manganese steel
• Frogs and switch points
Usage ProcedureUse AC or DC reverse polarity. Electrode may be used in contact or by holding an arc. When used for joining, stringer beads are best. When used as a build-up, weaving is acceptable. Manganese steel should be kept below 550°F (288°C) by skip welding or artificial cooling. Prior to build-up, all fatigued, cracked, or spalled material should be removed. Chip slag between passes.CANNOT BE TORCH CUT
Frequently Bought Together
7770 Hard Facing Buildup Stick Rod Electrode 3/16"
Couldn't load pickup availability
7770 Hard Facing Buildup Stick Rod Electrode 1/4"
Couldn't load pickup availability
706 Hard Facing Buildup MIG Welding Wire 1/16"
Couldn't load pickup availability
671 Impact And Abrasion Resistant Flux Cored Self Sheilded 1/16X25LB
Couldn't load pickup availability
7220 Carbide Hard Facing Stick Rod Electrode 3/8"
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 5/32"
Couldn't load pickup availability
3/16" - 1/2" Cryonitride Spiral Fluted Step Drill - 5/16" Shank
Couldn't load pickup availability
Hex Cap Screw Property Class 12.9 M20-2.5 x 80mm
Couldn't load pickup availability
Hex Cap Screw Grade 9 Alloy Steel 1/2-13 x 3-1/4"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
510 Aluminum TIG Wire 1/16"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64
Couldn't load pickup availability
E6013 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
Product Description
Alloys for repairs and buildup prior to overlaying with more abrasion-resistant hardfacing.Superior Advantages
• Versatile – easy to use on all steels
• Resists cracking
• Increased deposition rates save time and money
• Work hardens under impact
Buildup for hardfacing, joining manganese, carbon steels and stainless steels
Tensile Strength: 101,000 PSIElongation: 34%Hardness: Rc 45, work-hardenedPolarity: AC or DC Reverse
Typical Applications
• Shaft buildup
• Equipment part repairs – gears, booms, crusher rolls and hammers
• Welding alloy steel to manganese steel
• Frogs and switch points
Usage ProcedureUse AC or DC reverse polarity. Electrode may be used in contact or by holding an arc. When used for joining, stringer beads are best. When used as a build-up, weaving is acceptable. Manganese steel should be kept below 550°F (288°C) by skip welding or artificial cooling. Prior to build-up, all fatigued, cracked, or spalled material should be removed. Chip slag between passes.CANNOT BE TORCH CUT
Technical Specifications
| Item#: | P12785 |
|---|---|
| Welding Process | Stick |
| Type | Stick Electrode |
| Diameter | 3/32 " |
| Base Metal | Multi-Purpose |
| Hardness | 40-45 (WH) HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.0 lb |
