Home Welding Hardfacing Alloys High Abrasion/Low Impact (Carbide) 246 Carbide Hard Facing Stick Rod Electrode 1/2"
Hardfacing Alloys

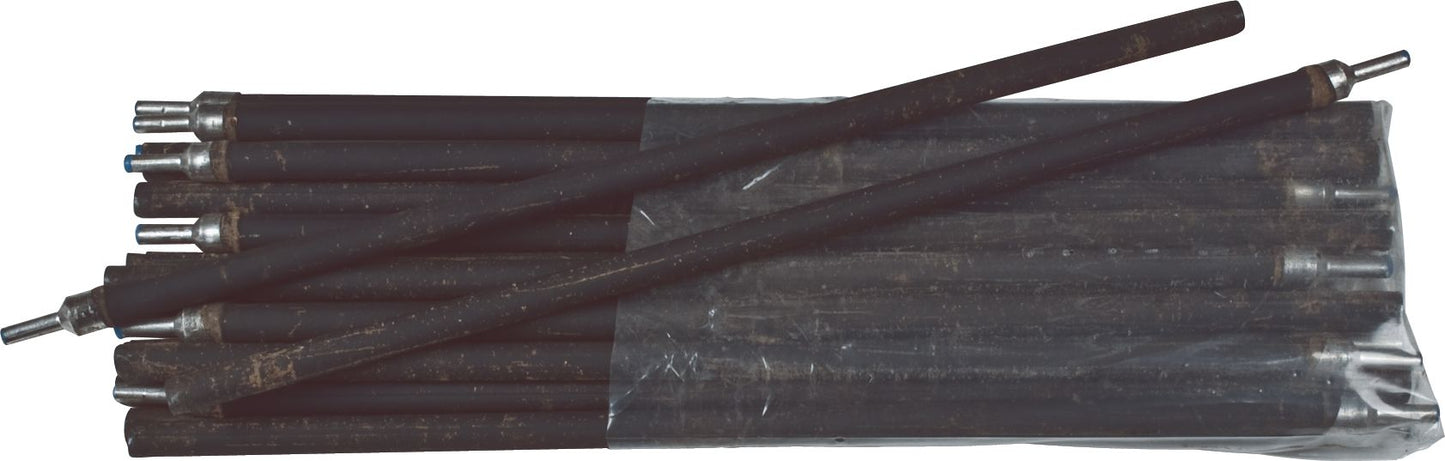

246 Carbide Hard Facing Stick Rod Electrode 1/2
246 Carbide Hard Facing Stick Rod Electrode 1/2

246 Carbide Hard Facing Stick Rod Electrode, 50 to 60 HRC Hardness, 200 to 260 Amps, AC/DCRP Polarity, 18" Length, 1/2"
(Pack of 15)

Item#: P12998

Certanium®

Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 60 (2nd pass)No. of Passes: Three maximumPolarity: AC or DC
Use on manganese and carbon steels
Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.

Read More
Check Availability

Frequently Bought Together

711 Carbide Hard Facing Stick Rod Electrode 5/32

711 Carbide Hard Facing Stick Rod Electrode 5/32"

Item#: CS1065
281 Martensitic Stick Rod Electrode 1/8

281 Martensitic Stick Rod Electrode 1/8"

Item#: P12036
7350 Carbide Hard Facing Stick Rod Electrode 1/4

7350 Carbide Hard Facing Stick Rod Electrode 1/4"

Item#: CW1916
375 Mild and Carbon Steel MIG Welding Wire 1/16

7310 Carbide Hard Facing MIG Welding Wire 1/16"

Item#: CW1785
246 Carbide Hard Facing Stick Rod Electrode 1/4

246 Carbide Hard Facing Stick Rod Electrode 1/4"

Item#: P12999
7355 Carbide Hard Facing Stick Rod Electrode Kit

7355 Carbide Hard Facing Stick Rod Electrode Kit

Item#: LP850
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511
510 Aluminum MIG Welding Wire 0.035

510 Aluminum MIG Welding Wire 0.035"

Item#: CW1940
Oxy-Therm Cutting Rod 3/8 x 24

Oxy-Therm Cutting Rod 3/8 x 24"

Item#: CW3619
Rosin Core Solder 1/16

Rosin Core Solder 1/16"

Item#: 20543

Product Description

Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 60 (2nd pass)No. of Passes: Three maximumPolarity: AC or DC
Use on manganese and carbon steels
Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.

Technical Specifications

Item#: P12998
Welding Process Stick
Type Tubular
Diameter 1/2 "
Length 18 "
Base Metal Carbide
Carbide Type Chromium
Hardness 50-60 HRC
Polarity AC/DCRP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 16.0 lb
