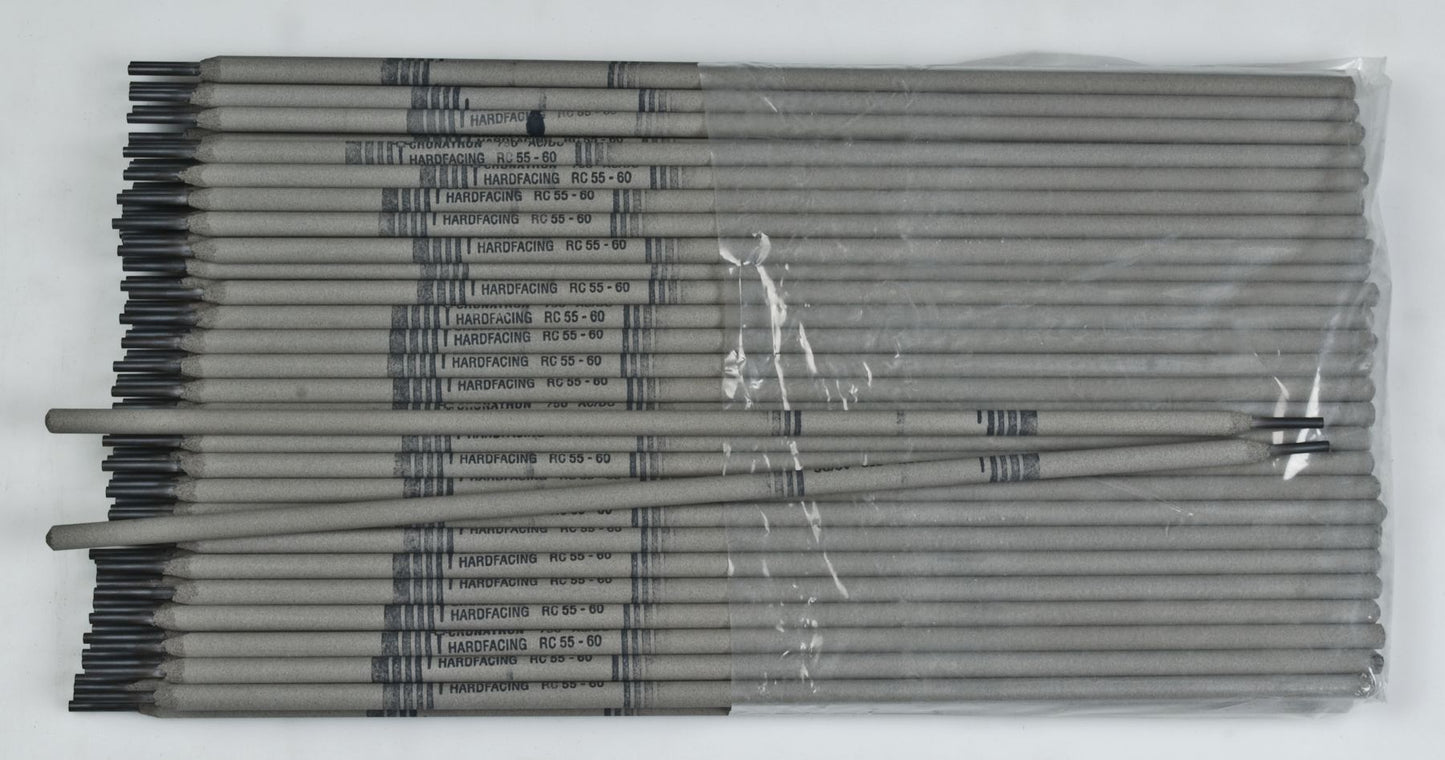

750 Martensitic Hard Facing Stick Rod Electrode, 55 to 60 HRC Hardness, 80 to 120 Amps, AC/DCRP Polarity, 1/8"
(Pack of
10)
SKU:CW1514 Item#: CW1514
Designed for moderate abrasion resistance and impact situations.
Superior Advantages
• Good for metal-to-metal wear
• Torch cuttable
• Heat-treatable
• Unlimited pass-over-pass applications
• Provides good impact resistance
All-position alloy for carbon and alloy steels
Hardness: Rc 55-60
Polarity: AC or DC Reverse
Typical Applications
• Dredger and shovel teeth
• Hammers
• Conveyor screws
• Shredders
• Shear blades
Technical TipFor austenitic manganese steel, use a buffer layer of CRONAWEAR™ 7770, followed by multiple passes of CRONAWEAR 750 (to achieve full hardness). Keep the arc close. For vertical welds, use rapid weave and hesitate over each crater before extinguishing arc.
Frequently Bought Together
711 Carbide Hard Facing Stick Rod Electrode 1/8"
Couldn't load pickup availability
7500 Martensitic MIG Welding Wire 0.045"
Couldn't load pickup availability
7355 Carbide Hard Facing Stick Rod Electrode 1/2"
Couldn't load pickup availability
7500 Martensitic MIG Welding Wire 0.035"
Couldn't load pickup availability
750 Martensitic Hard Facing Stick Electrode 3/16"
Couldn't load pickup availability
172 Intermediate Abrasion And Impact Alloy 3/16X18
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
176 Extreme Abrasion With Impact 1/4X18IN
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
Product Description
Designed for moderate abrasion resistance and impact situations.Superior Advantages
• Good for metal-to-metal wear
• Torch cuttable
• Heat-treatable
• Unlimited pass-over-pass applications
• Provides good impact resistance
All-position alloy for carbon and alloy steels
Hardness: Rc 55-60
Polarity: AC or DC Reverse
Typical Applications
• Dredger and shovel teeth
• Hammers
• Conveyor screws
• Shredders
• Shear blades
Technical TipFor austenitic manganese steel, use a buffer layer of CRONAWEAR™ 7770, followed by multiple passes of CRONAWEAR 750 (to achieve full hardness). Keep the arc close. For vertical welds, use rapid weave and hesitate over each crater before extinguishing arc.
Technical Specifications
| Item#: | CW1514 |
|---|---|
| Welding Process | Stick |
| Type | Stick Electrode |
| Diameter | 1/8 " |
| Base Metal | Martensitic |
| Hardness | 55-60 HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.5 lb |
