Hardfacing Alloys

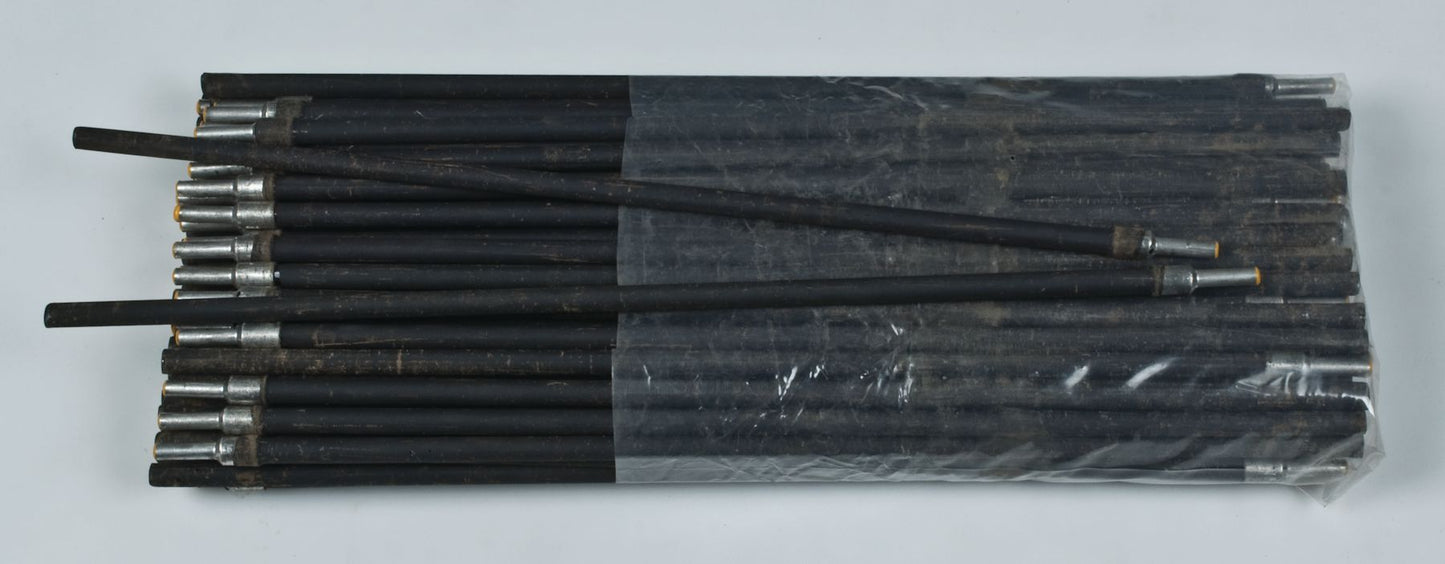

7350 Carbide Hard Facing Stick Rod Electrode 1/4
7350 Carbide Hard Facing Stick Rod Electrode 1/4

7350 Carbide Hard Facing Stick Rod Electrode, 50 to 64 HRC Hardness, 75 to 200 Amps, AC/DCRP Polarity, 18" Length, 3/8"
(Pack of 25)

Item#: CW1916

Cronatron®

Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 64 (2nd pass)
No. of Passes: Two
Polarity: AC or DC Reverse
For high-stress grinding and gouging abrasion resistance
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding. Direct electrode 90° to applying surface.
Technical TipRelief checks are normal. Finish by grinding if necessary.

Read More
Check Availability

Catalog page#: 13-18

Frequently Bought Together

7109 Austenitic Hard Facing Welding Wire 0.045

7109 Austenitic Hard Facing Welding Wire 0.045"

Item#: CW3587
675 Hi Brade Fc High Abrasion Moderate Impact .045X33LB SELF-SHIELD

675 Hi Brade Fc High Abrasion Moderate Impact .045X33LB SELF-SHIELD

Item#: EG67580045
777 Austenitic Hard Facing Stick Electrode 5/32

777 Austenitic Hard Facing Stick Electrode 5/32"

Item#: CW1062
7355 Carbide Hard Facing Stick Rod Electrode 1/4

7355 Carbide Hard Facing Stick Rod Electrode 1/4"

Item#: CW1918
H75 Carbide Hard Facing MIG Welding Wire 0.045

H75 Carbide Hard Facing MIG Welding Wire 0.045"

Item#: CW6120
H10 Carbide Hard Facing MIG Welding Wire 1/16

H10 Carbide Hard Facing MIG Welding Wire 1/16"

Item#: CW6116
PTO Pin Lock 3/8 x 2-1/2

PTO Pin Lock 1/4 x 2-1/2"

Item#: 64348
SAE Flat Washer Thru-Hardened Steel 5/16

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436
Self-Drilling Screw Hex Head #6-20 x 1/2

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539
321 Mild and Carbon Steel MIG Welding Wire 0.035

321 Mild and Carbon Steel MIG Welding Wire 0.035"

Item#: CW1931
331 Mild and Carbon Steel MIG Welding Wire 0.035

331 Mild and Carbon Steel MIG Welding Wire 0.035"

Item#: CW3777
Oxy-Therm Cutting Rod 1/4 x 24

Oxy-Therm Cutting Rod 1/4 x 24"

Item#: CW3617

Product Description

Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 64 (2nd pass)
No. of Passes: Two
Polarity: AC or DC Reverse
For high-stress grinding and gouging abrasion resistance
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding. Direct electrode 90° to applying surface.
Technical TipRelief checks are normal. Finish by grinding if necessary.

Technical Specifications

Item#: CW1916
Welding Process Stick
Type Tubular
Diameter 3/8 "
Length 18 "
Base Metal Carbide
Carbide Type Chromium
Hardness 50-64 HRC
Polarity AC/DCRP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 26.0 lb
