Home Welding Hardfacing Alloys Mod Abrasion/Mod Impacts (Martensitic) 172 Latch Bar And Dutchman Hardfacing Alloy 3/16X18
Hardfacing Alloys
172 Latch Bar And Dutchman Hardfacing Alloy 3/16X18
172 Latch Bar And Dutchman Hardfacing Alloy 3/16X18

172 Resit Frictional Metal To Metal Wear Tough Martensite Deposit Polarity Dcep Or Ac Hardness 58Rc Number Of Passes 3
(Pack of 5)

Item#: EG1722000X

Lawson Products

Extend service life on power shovel latch bars and dutchman with these long wearing hardfacing electrodes. Produces a very tough martensite deposit that will resist frictional metal-to-metal wear. Stands up to scratching, sliding and gouging abrasion while resisting moderate to heavy impact.
• Tough – Resists cracking, chipping or spalling
• All-Position – Saves time and allows in-position welding
• Super Smooth Welding Arc – Easy to use with a smooth finish
• Economical – Saves money with long lasting overlays
• Multipass Overlays – Good for buildup
• Versatile – For use on carbon and abrasion resistant alloy steels including manganese steels
• Sound Deposits – Generally does not cross-check
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 355.8mm³ vol. loss

Read More
Check Availability

Frequently Bought Together

7350 Carbide Hard Facing Stick Rod Electrode 1/4

7350 Carbide Hard Facing Stick Rod Electrode 1/4"

Item#: CW1916
H7 Carbide Hard Facing MIG Welding Wire 1/16

H7 Carbide Hard Facing MIG Welding Wire 1/16"

Item#: CW6086
7770 Hard Facing Buildup Stick Rod Electrode 3/32

7770 Hard Facing Buildup Stick Rod Electrode 3/32"

Item#: CW1881
Cable Tie Screw Mount #8 Screw White, Cable Tie Screw Mount, #8 Mounting Screw Size, Heavy-Duty, White

Cable Tie Screw Mount #8 Screw White

Item#: 28910
Flex-Guard Braided Sleeving 3/8

Flex-Guard Braided Sleeving 3/8"

Item#: 61685
Plier Long Chain Nose with Side Cutter 7-1/2

Plier Long Chain Nose with Side Cutter 7-1/2"

Item#: 97932
7500 Martensitic MIG Welding Wire 0.045

7500 Martensitic MIG Welding Wire 0.045"

Item#: CW1789
281 Martensitic Stick Rod Electrode 5/32

281 Martensitic Stick Rod Electrode 5/32"

Item#: P12037
7500 Martensitic MIG Welding Wire 0.045

7500 Martensitic MIG Welding Wire 0.045"

Item#: CW5169
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511
Superbutt Connector 16 to 14 AWG Blue, Superbutt Connector, Extended Barrel, Blue, 16 to 14 AWG, 1.075

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728
Self-Drilling Screw Hex Head #6-20 x 1/2

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931
331 Mild and Carbon Steel MIG Welding Wire 0.030

331 Mild and Carbon Steel MIG Welding Wire 0.03"

Item#: CW5130
750 Martensitic Hard Facing Stick Electrode 1/8

750 Martensitic Hard Facing Stick Electrode 1/8"

Item#: CW1514
Carbon Air Arc Stick Rod Electrode 3/8

Carbon Air Arc Stick Rod Electrode 1/4"

Item#: CW1533

Product Description

Extend service life on power shovel latch bars and dutchman with these long wearing hardfacing electrodes. Produces a very tough martensite deposit that will resist frictional metal-to-metal wear. Stands up to scratching, sliding and gouging abrasion while resisting moderate to heavy impact.
• Tough – Resists cracking, chipping or spalling
• All-Position – Saves time and allows in-position welding
• Super Smooth Welding Arc – Easy to use with a smooth finish
• Economical – Saves money with long lasting overlays
• Multipass Overlays – Good for buildup
• Versatile – For use on carbon and abrasion resistant alloy steels including manganese steels
• Sound Deposits – Generally does not cross-check
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 355.8mm³ vol. loss

Technical Specifications

Item#: EG1722000X
Welding Process Stick
Type Electrode
Diameter 3/16 "
Base Metal Steel To Steel
Hardness 58 HRC
Polarity DCEP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 6.38 lb

Suggested Products

176 Extreme Abrasion With Impact 1/4X18IN

176 Extreme Abrasion With Impact 1/4X18IN

Item#: EG17610250
750 Martensitic Hard Facing Stick Electrode 1/8

750 Martensitic Hard Facing Stick Electrode 1/8"

Item#: CW1514
7770 Hard Facing Buildup Stick Rod Electrode 3/16

7770 Hard Facing Buildup Stick Rod Electrode 3/16"

Item#: CW1878
7770 Hard Facing Buildup Stick Rod Electrode 1/8

7770 Hard Facing Buildup Stick Rod Electrode 1/8"

Item#: CW1880

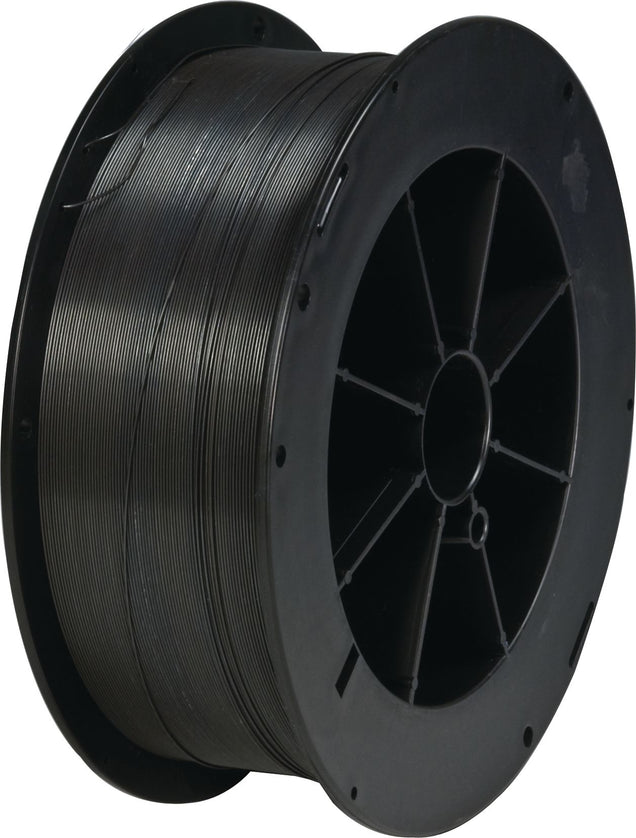

H3 Martensitic Hard Facing MIG Welding Wire 0.045
