Home Welding Hardfacing Alloys Build-up 170 Build Up Of Carbon And Low Alloy Steels 1/8
Build-up

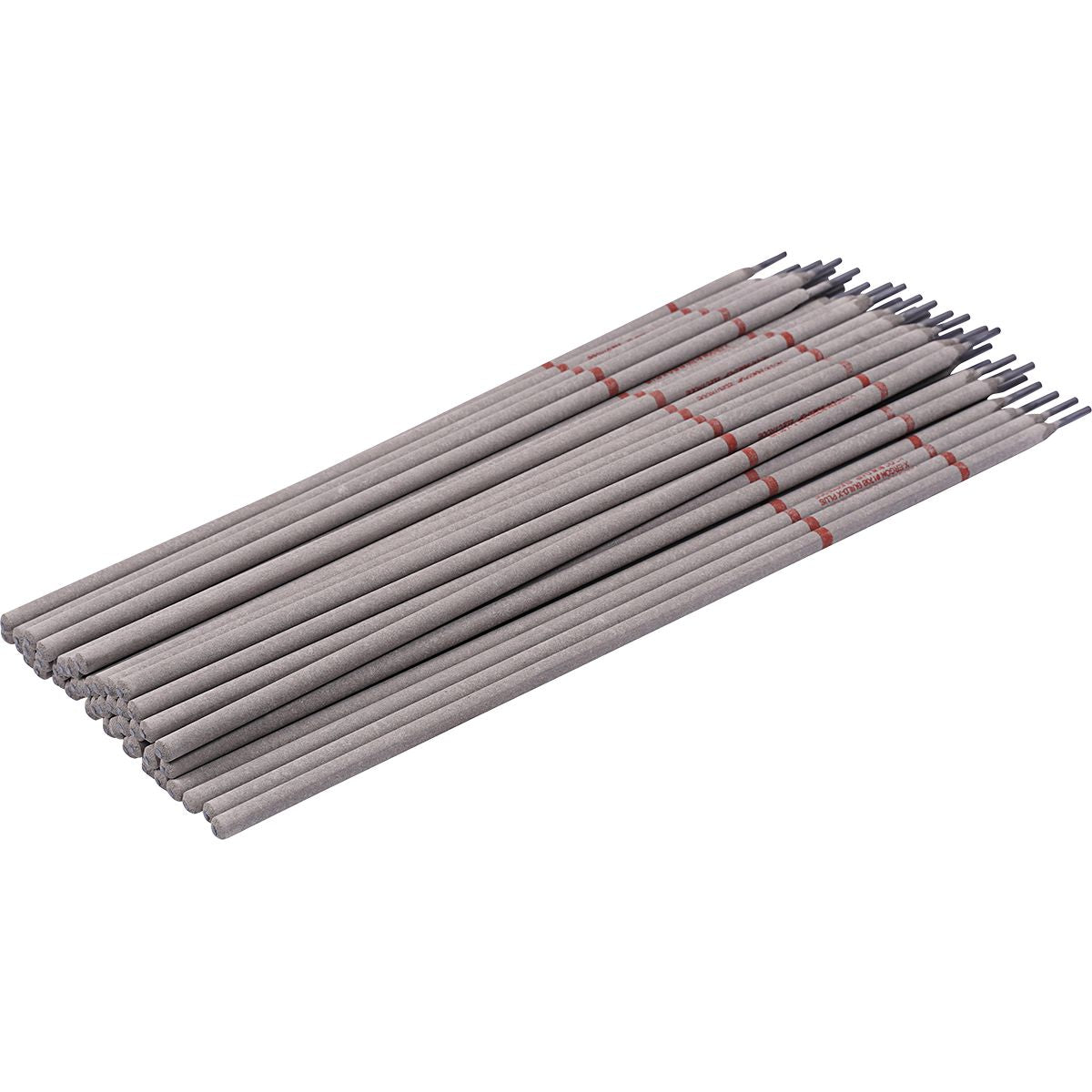

170 Build Up Of Carbon And Low Alloy Steels 1/8
170 Build Up Of Carbon And Low Alloy Steels 1/8

170 For Overlays And Build Up Wont Spall Or Mushroom Torchable Polarity Dc Or Ac Hardness 50Rc Tensile 125000 Unlimited Passes
(Pack of 5)

Item#: EG1703100B

Lawson Products

Designed to provide sound weldments and overlays free of underbead cracks, which is essential for heavy buildup deposits on high-carbon and abrasion-resistant steels.
• All-Position – Allows build-up any position
• Torch Cuttable – Makes repairs easy
• High Deposition – Fast and economical
• Chrome-Moly Deposit – High-strength, high impact-resistance, heat-treatable
• Machinable
• Tensile Strength: 118,000 PSI/814 Mpa
• Yield Strength: 13,000 PSI/779 Mpa
• Hardness: 24 Rc
• Machinability: Good (carbide tools)
• Max Number of Passes: Unlimited
• Current: DC or AC
Remove fatigued metal. Preheat according to base metal type. Build up to desired dimensions using minimal amperage and heat input. Maintain short arc gap and allow to slow cool.

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together

7770 Hard Facing Buildup Stick Rod Electrode 3/32

7770 Hard Facing Buildup Stick Rod Electrode 3/32"

Item#: CW1881
170 Build Up Of Carbon And Low Alloy Steels 3/16

170 Build Up Of Carbon And Low Alloy Steels 3/16

Item#: EG1702000B
706 Hard Facing Buildup Stick Rod Electrode 5/32

706 Hard Facing Buildup Stick Rod Electrode 5/32"

Item#: P12675
706 Hard Facing Buildup Stick Rod Electrode 1/8

706 Hard Facing Buildup Stick Rod Electrode 1/8"

Item#: P12775
246 Carbide Hard Facing Stick Rod Electrode 1/2

246 Carbide Hard Facing Stick Rod Electrode 1/2"

Item#: P12998
7355 Carbide Hard Facing Stick Rod Electrode 1/4

7355 Carbide Hard Facing Stick Rod Electrode 1/4"

Item#: CS1918
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980
Vision Pro Super Illuminator Work Light

Vision Pro Super

Item#: DY21061040
USS Flat Washer Thru-Hardened Steel 3/8

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"

Item#: 41756
22-50 MIG Welding Nozzle 1/2

22-50 MIG Welding Nozzle 1/2"

Item#: CW4042
24A-62 MIG Welding Nozzle 5/8

24A-62 MIG Welding Nozzle 5/8"

Item#: CW4049
SAE Flat Washer Grade 8 Steel 1/4

SAE Flat Washer Grade 8 Steel 1/4"

Item#: P11394
Nut Torq Tite Hex Flange, #8-32, Nut Torq Tite Hex Flange, Grade 2, Serrated, Coarse, Steel, Zinc Finish, #8-32

Nut Torq Tite Hex Flange, 1/4-20

Item#: DY02551300
Swivel Head Ratchet 3/8 Drive, 3/8

Swivel Head Ratchet 3/8 Drive

Item#: DY89310010
SAE Flat Washer Grade 8 Steel 1/4

SAE Flat Washer Grade 8 Steel 1/4"

Item#: P11394
Nut Torq Tite Hex Flange, #8-32, Nut Torq Tite Hex Flange, Grade 2, Serrated, Coarse, Steel, Zinc Finish, #8-32

Nut Torq Tite Hex Flange, 1/4-20

Item#: DY02551300
Swivel Head Ratchet 3/8 Drive, 3/8

Swivel Head Ratchet 3/8 Drive

Item#: DY89310010

Product Description

Designed to provide sound weldments and overlays free of underbead cracks, which is essential for heavy buildup deposits on high-carbon and abrasion-resistant steels.
• All-Position – Allows build-up any position
• Torch Cuttable – Makes repairs easy
• High Deposition – Fast and economical
• Chrome-Moly Deposit – High-strength, high impact-resistance, heat-treatable
• Machinable
• Tensile Strength: 118,000 PSI/814 Mpa
• Yield Strength: 13,000 PSI/779 Mpa
• Hardness: 24 Rc
• Machinability: Good (carbide tools)
• Max Number of Passes: Unlimited
• Current: DC or AC
Remove fatigued metal. Preheat according to base metal type. Build up to desired dimensions using minimal amperage and heat input. Maintain short arc gap and allow to slow cool.

Technical Specifications

Item#: EG1703100B
Welding Process Stick
Type Electrode
Diameter 1/8 "
Base Metal Carbon And Alloy Steels
Hardness 55 HRC
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 5.3 lb
