Home Hardfacing Alloys 7220 Carbide Hard Facing Stick Rod Electrode 3/8"
Hardfacing Alloys

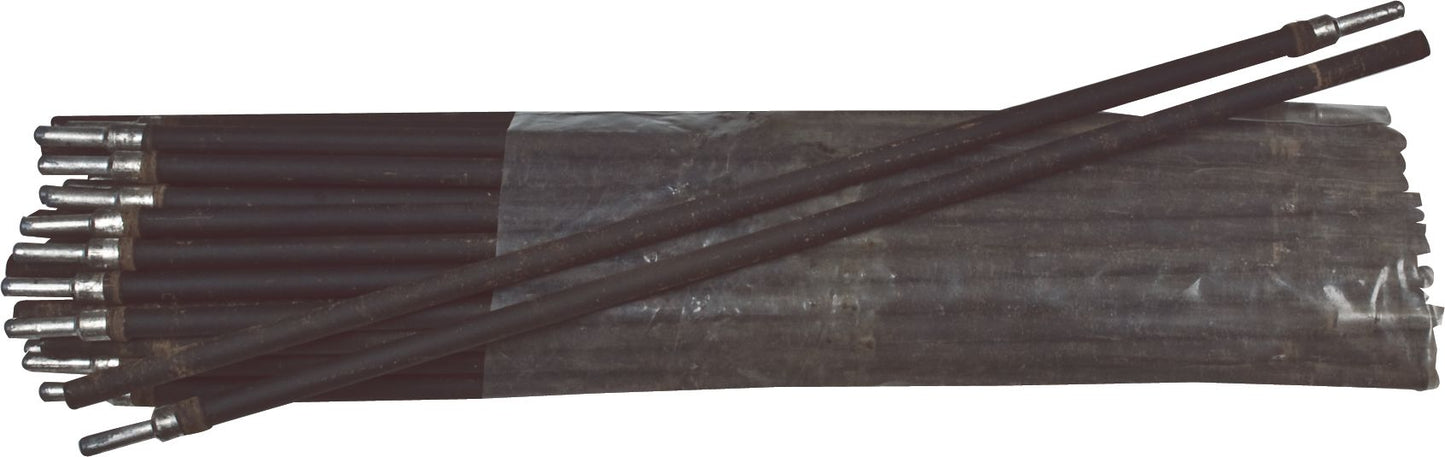

7220 Carbide Hard Facing Stick Rod Electrode, 65 to 68 HRC Hardness, 130 to 180 Amps, AC/DCRP Polarity, 18" Length, 3/8"
(Pack of 10)

Item#: CW1847

Cronatron®

Superior Advantages
• Maximum carbide content provides maximum abrasion resistance
Ultimate abrasion resistance on carbon and low-alloy steels
Hardness: Rc 68 (2nd pass)No. of Passes: Two maximumPolarity: AC or DC Reverse
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. The 1/4" size is recommended for small edging and best out-of-position handling.
Maximum Abrasion Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary. Not recommended for impact. Maximum of two passes is recommended.

Read More
Check Availability

Catalog page#: 13-19

Frequently Bought Together


706 Hard Facing Buildup MIG Welding Wire 0.045"

Item#: P19557

7770 Hard Facing Buildup Stick Rod Electrode 1/8"

Item#: CW1880

676 Flux Core Wire Extreme Abrasion Moderate Impact .045X33LBS

Item#: EG67680045

711 Carbide Hard Facing Stick Rod Electrode 5/32"

Item#: CW1065

7222 Carbide Hard Facing Stick Rod Electrode 1/4"

Item#: CW1908

7220 Carbide Hard Facing Stick Rod Electrode 1/2"

Item#: CW1848

Nylon Cable Tie 15.5" Black

Item#: 94612

Butt Connector 16 to 14 AWG Clear

Item#: 1368141

Butt Connector 22 to 18 AWG Clear

Item#: 1368140

Oxy Acetylene Fuel Gas Single Replacement Flint

Item#: CW1307

333 Dissimilar Steel TIG Wire 1/16"

Item#: CW1898

176 Extreme Abrasion With Impact 1/4X18IN

Item#: EG17610250

Product Description

Superior Advantages
• Maximum carbide content provides maximum abrasion resistance
Ultimate abrasion resistance on carbon and low-alloy steels
Hardness: Rc 68 (2nd pass)No. of Passes: Two maximumPolarity: AC or DC Reverse
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. The 1/4" size is recommended for small edging and best out-of-position handling.
Maximum Abrasion Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary. Not recommended for impact. Maximum of two passes is recommended.

Technical Specifications

Item#: CW1847
Welding Process Stick
Type Tubular
Diameter 3/8 "
Length 18 "
Base Metal Carbide
Carbide Type Complex Tungsten/Chrome
Hardness 65-68 HRC
Polarity AC/DCRP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 10.73 lb
