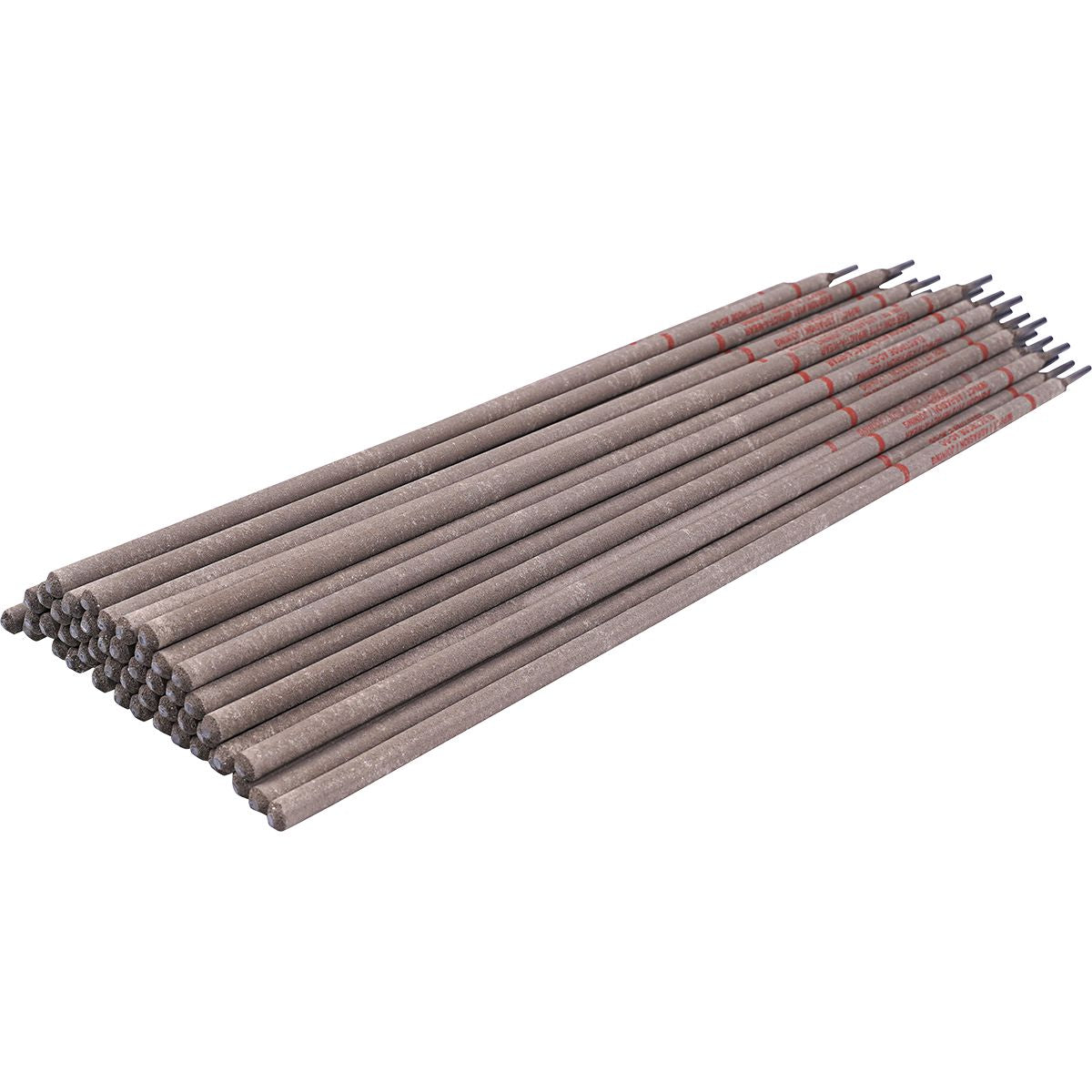

173 Multi Purpose High Deposition Alloy For Joining And Build Up 1/8
(Pack of
5)
A versatile electrode designed to be wear-resistant and is great for joining Wear-X™ hardfacing plates to base metal.
• Work-Hardens During Use – Gets more abrasion-resistant with wear
• Impact-Resistant – Designed for high-impact applications
• Economical – SD coating provides superior deposition rate and excellent efficiency
• Excellent for joining dissimilar steels
• For use on carbon and alloyed abrasion resistant steels including manganese steels
• Cavitation and corrosion resistant
• Designed for flat and horizontal filets
• Tensile Strength: 120,000 PSI/827 MPa
• Yield Strength: 72,000 PSI/496 MPa
• Hardness: – Work Hardened: Up to 50 Rc – As Deposited: 90 Rb
• Corrosion Resistance: Very good
• Crack Resistance: Excellent
• Impact Strength: Excellent
• Chemical Resistance: Excellent
• Heat Resistance: Good, 500°F
• Max Number of Passes: Unlimited
• Current: DC or AC
Frequently Bought Together
176 Extreme Abrasion With Impact 1/2X18IN
Couldn't load pickup availability
281 Martensitic Stick Rod Electrode 5/32"
Couldn't load pickup availability
172 Latch Bar And Dutchman Hardfacing Alloy 3/16X18
Couldn't load pickup availability
194 High Impact Manganese Steel Alloy 5/32
Couldn't load pickup availability
672 Extreme Impact And Abrasion Resistant Flux Cored Alloy .045X25LB
Couldn't load pickup availability
194 High Impact Manganese Steel Alloy 3/32
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
24A-62 MIG Welding Nozzle 5/8"
Couldn't load pickup availability
Flat Soapstone 1/2"
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Replacement Flint
Couldn't load pickup availability
Product Description
A versatile electrode designed to be wear-resistant and is great for joining Wear-X™ hardfacing plates to base metal.• Work-Hardens During Use – Gets more abrasion-resistant with wear
• Impact-Resistant – Designed for high-impact applications
• Economical – SD coating provides superior deposition rate and excellent efficiency
• Excellent for joining dissimilar steels
• For use on carbon and alloyed abrasion resistant steels including manganese steels
• Cavitation and corrosion resistant
• Designed for flat and horizontal filets
• Tensile Strength: 120,000 PSI/827 MPa
• Yield Strength: 72,000 PSI/496 MPa
• Hardness: – Work Hardened: Up to 50 Rc – As Deposited: 90 Rb
• Corrosion Resistance: Very good
• Crack Resistance: Excellent
• Impact Strength: Excellent
• Chemical Resistance: Excellent
• Heat Resistance: Good, 500°F
• Max Number of Passes: Unlimited
• Current: DC or AC
Technical Specifications
| Item#: | EG17340000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Base Metal | Dissimilar Steels |
| Hardness | 50 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.3 lb |
