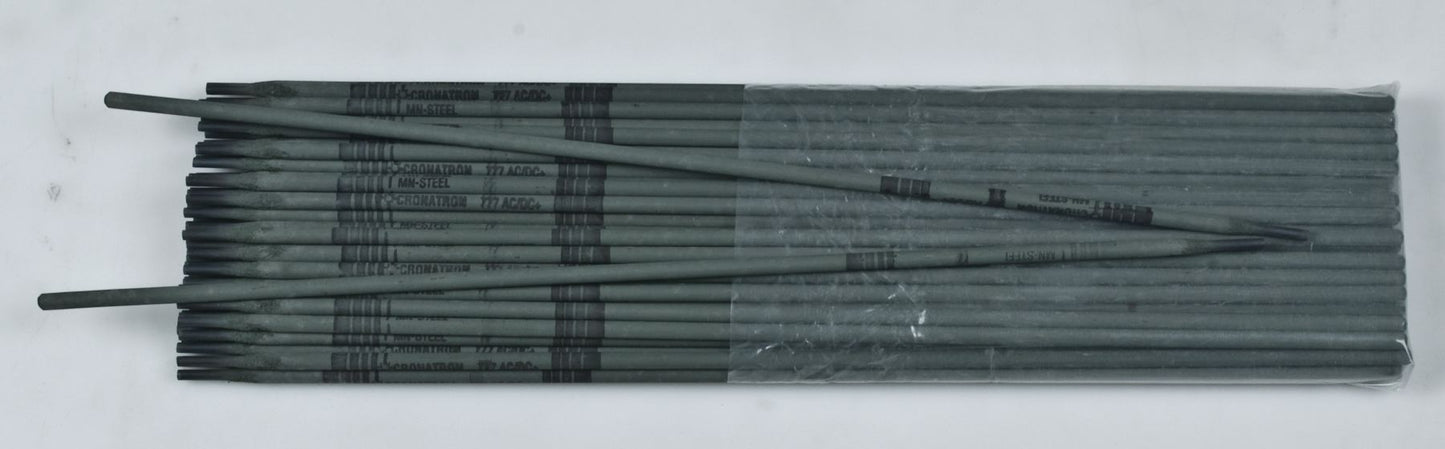

777 Austenitic High Impact Hard Facing Stick Rod Electrode, 43 to 47 (WH) HRC Hardness, 90 to 125 Amps, AC/DCRP Polarity, 1/8"
(Pack of 5)

Cronatron®

Designed for low abrasion resistance and high impact situations.
Superior Advantages
• Work hardens under heavy impact conditions
• Unlimited pass-over-pass applications
• High operator appeal – smooth running, quiet and minimal sparks
For severe impact and extreme shock (torch cuttable)
Tensile Strength: 116,000 PSI Hardness: Rc 47 Polarity: AC or DC Reverse
Elongation: 38%
Typical Applications
• Bucket teeth
• Hammer mill and mill swing hammers
• Tampers and jackhammers
• Impactor crusher bars
Usage ProcedureUse AC or DC reverse polarity with normal maintenance welding procedures. Surface area should be clean and dry, however, CERTANIUM 777 is manufactured with special cleansing and fluxing agents to promote sound welds under most conditions. For vertical-down welding, hold a short arc and tilt the electrode 10° in the direction of travel, using a stringer bead technique.
Technical TipWhen joining manganese steels, use skip-welding technique to avoid temperature increase in a localized area. Do not preheat manganese steel. Interpass temperature should not exceed 500°F (260°C).

Check Availability

Quantity

Catalog page#: 13-21

Frequently Bought Together

7770 Hard Facing Buildup Stick Rod Electrode 3/16"

178 Ultimate Abrasion Resistance 3/8X18IN

Item#: EG17800375

174 Gray High Abrasion Moderate Impact 1/8

Item#: EG17440000

194 High Impact Manganese Steel Alloy 1/8

Item#: EG19440000

194 High Impact Manganese Steel Alloy 5/32

Item#: EG19430000

672 Extreme Impact And Abrasion Resistant Flux Cored Alloy .045X25LB

Item#: EG67280045

Locknut with Nylon Insert Grade 8 5/16-18

Hex Nut Grade 8 Alloy Steel 1/2-13

SAE Flat Washer Thru-Hardened Steel 5/16"

Round Soapstone 1/4 x 5"

201 Rectangular Wear Disc Plate 3 x 6 x 5/32"

Wear Plates Used By Maintenance Welder 1/4X4X5

Item#: EG09904500

Product Description

Designed for low abrasion resistance and high impact situations.
Superior Advantages
• Work hardens under heavy impact conditions
• Unlimited pass-over-pass applications
• High operator appeal – smooth running, quiet and minimal sparks
For severe impact and extreme shock (torch cuttable)
Tensile Strength: 116,000 PSI Hardness: Rc 47 Polarity: AC or DC Reverse
Elongation: 38%
Typical Applications
• Bucket teeth
• Hammer mill and mill swing hammers
• Tampers and jackhammers
• Impactor crusher bars
Usage ProcedureUse AC or DC reverse polarity with normal maintenance welding procedures. Surface area should be clean and dry, however, CERTANIUM 777 is manufactured with special cleansing and fluxing agents to promote sound welds under most conditions. For vertical-down welding, hold a short arc and tilt the electrode 10° in the direction of travel, using a stringer bead technique.
Technical TipWhen joining manganese steels, use skip-welding technique to avoid temperature increase in a localized area. Do not preheat manganese steel. Interpass temperature should not exceed 500°F (260°C).

Technical Specifications

Item#:	CW1063
Welding Process	Stick
Type	Stick Electrode
Diameter	1/8 "
Base Metal	Austenitic
Hardness	43-47 (WH) HRC
Polarity	AC/DCRP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.0 lb
