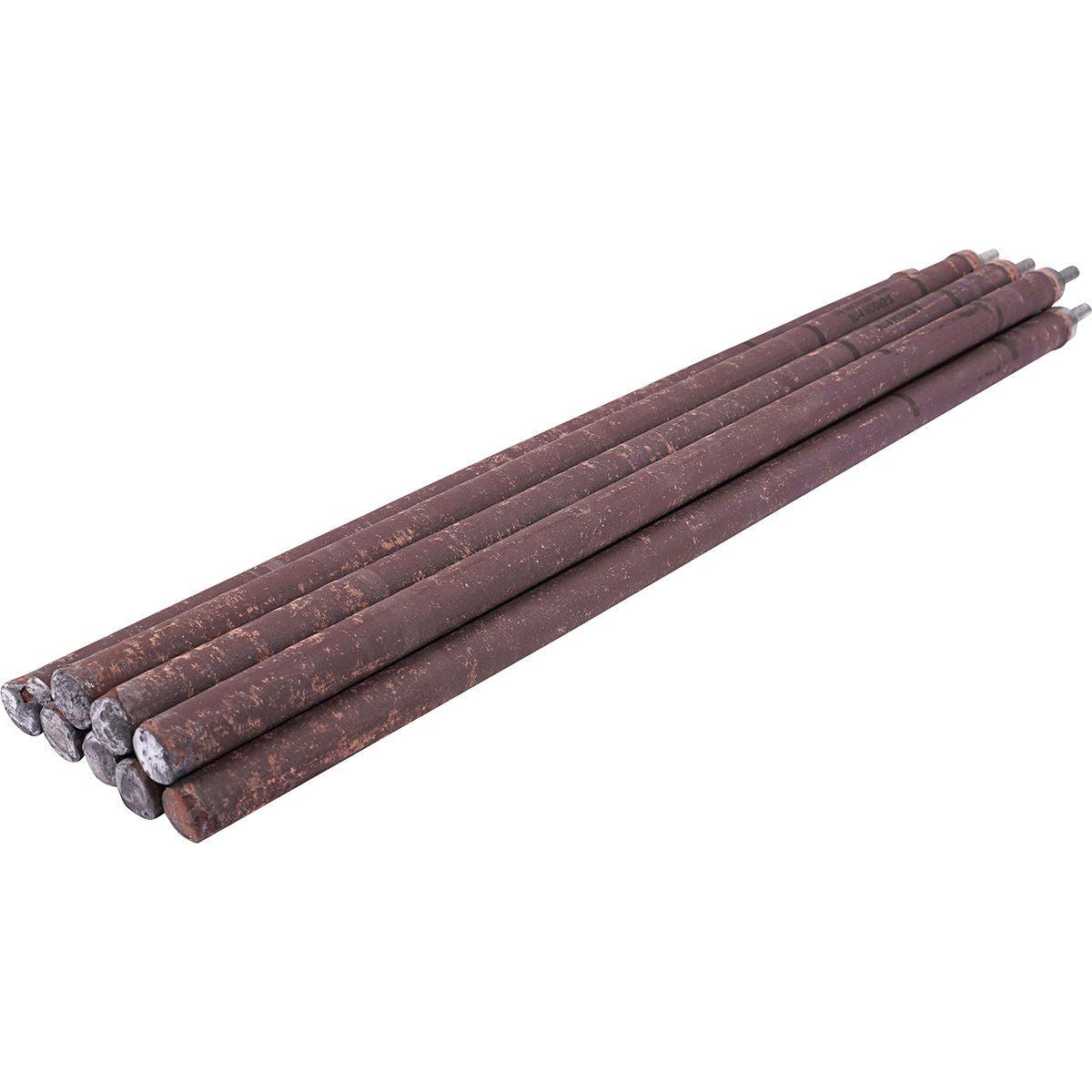

176 Hard Facing Alloy Complex Carbides Excellent Wear And Moderate Impact Polarity Dc Or Ac Hardness 62-64Rc Number Of Passes 2
(Pack of 5)

SKU:EG17610500 Item#: EG17610500

Lawson Products

A hardfacing alloy using elements traditionally found in superalloys. These alloys form complex carbides that exhibit excellent wear and moderate impact resistance. This combination coupled with special stabilizers make it ideal for hardfacing.
• Improved Alloy, 64 Rc – Lasts longer than other hardfacing by up to ten times
• 96% Deposition Efficiency – Almost twice as much metal deposited as a regular electrode
• All Position – 1/4" diameter provides all-position welding, even vertical up
• Operates at Lower Amperages – Reduces base metal dilution to produce longer wearing deposits
• 1/4" can be used on bucket lips as thin as 3/16'' thick
• Designed to withstand abrasion up to 1000˚F/538˚C with good shock and impact resistance
• For use on carbon and abrasion resistant alloy steels including overlaying manganese steels
• Cross-checks readily
• Hardness: 62-64 Rc
• Max Number of Passes: 2
• Current: DC or AC
• Abrasion Resistance: Excellent, 25 times greater than mild steel
• ASTM G65 Abrasion Test: 019.7mm³ vol. loss

Check Availability

Quantity

Frequently Bought Together

777 Austenitic Hard Facing Stick Electrode 5/32"

750 Martensitic Stick Rod Electrode 5/32"

172 Intermediate Abrasion And Impact Alloy 5/32X18

Item#: EG17230000

676 Flux Core Wire Extreme Abrasion Moderate Impact 1/16X33LBS

Item#: EG67680062

174 Gray High Abrasion Moderate Impact 3/16

Item#: EG17420000

H4 Carbide Hard Facing MIG Welding Wire 0.045"

IFI 100/107 Top Locknut Grade C 5/8-11

Flat Washer Grade 12 Thru-Hardened Steel M8

Hex Nut Grade 8 Alloy Steel 3/8-16

Wear Plates Used By Maintenance Welder 1/4X4X5

Item#: EG09904500

163 Arc-Cut Synthetic Carbon Arc Electrode

Item#: EG16300250

510 Aluminum TIG Wire 1/8"

Product Description

A hardfacing alloy using elements traditionally found in superalloys. These alloys form complex carbides that exhibit excellent wear and moderate impact resistance. This combination coupled with special stabilizers make it ideal for hardfacing.
• Improved Alloy, 64 Rc – Lasts longer than other hardfacing by up to ten times
• 96% Deposition Efficiency – Almost twice as much metal deposited as a regular electrode
• All Position – 1/4" diameter provides all-position welding, even vertical up
• Operates at Lower Amperages – Reduces base metal dilution to produce longer wearing deposits
• 1/4" can be used on bucket lips as thin as 3/16'' thick
• Designed to withstand abrasion up to 1000˚F/538˚C with good shock and impact resistance
• For use on carbon and abrasion resistant alloy steels including overlaying manganese steels
• Cross-checks readily
• Hardness: 62-64 Rc
• Max Number of Passes: 2
• Current: DC or AC
• Abrasion Resistance: Excellent, 25 times greater than mild steel
• ASTM G65 Abrasion Test: 019.7mm³ vol. loss

Technical Specifications

Item#:	EG17610500
Welding Process	Stick
Type	Electrode
Diameter	1/2 "
Base Metal	Steel To Steel
Hardness	62-64 HRC
Polarity	DCEP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	6.11 lb
