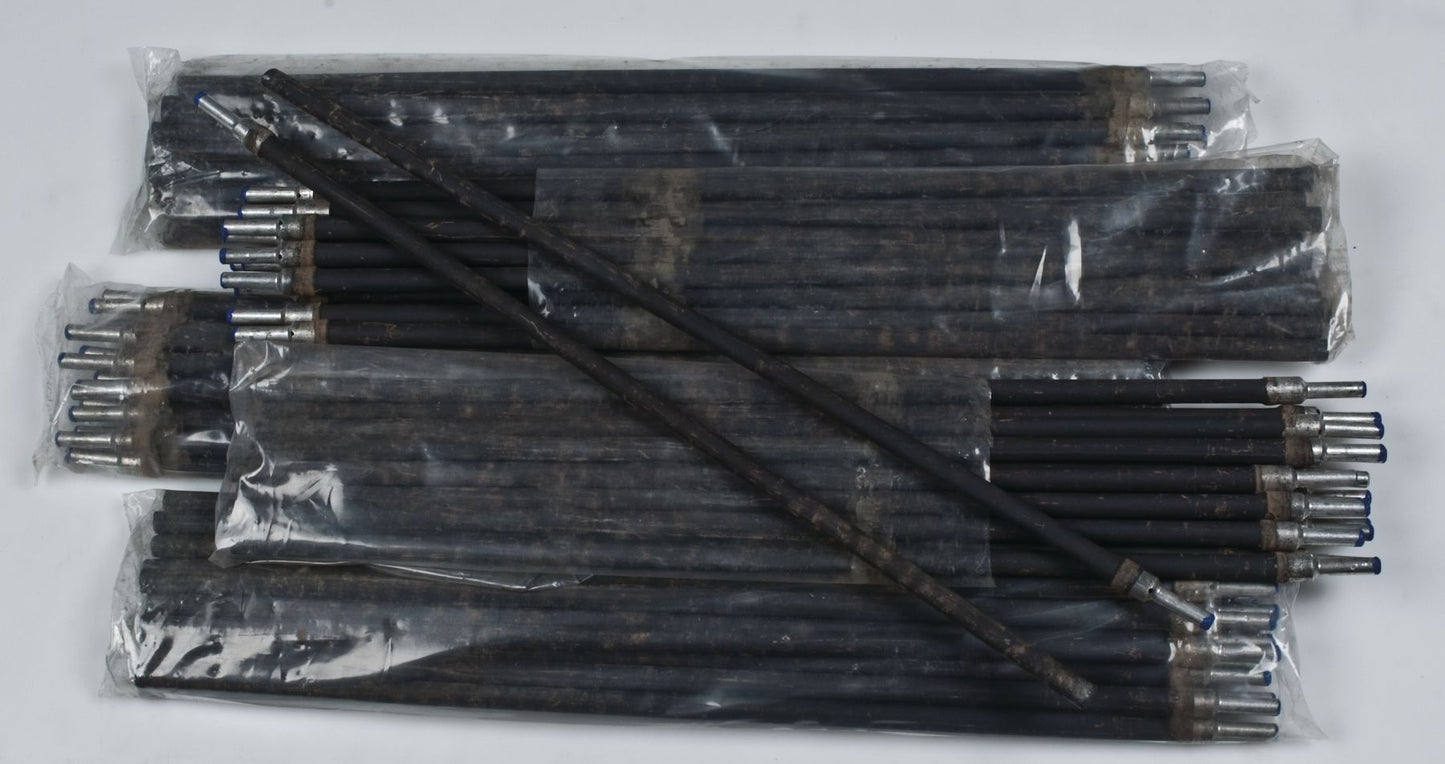

7355 Carbide Hard Facing Stick Rod Electrode, 51 to 61 HRC Hardness, 75 to 200 Amps, AC/DCRP Polarity, 18" Length, 3/8"
(Pack of
25)
SKU:CW1913 Item#: CW1913
High abrasion and heavy impact resistance for austenitic manganese steel
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
Hardness: Rc 62 (2nd pass)No. of Passes: Up to threePolarity: AC or DC Reverse
Can be used for out-of-position welding
Typical Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.
Frequently Bought Together
178 Ultimate Abrasion Resistance 3/8X18IN
Couldn't load pickup availability
174 Gray High Abrasion Moderate Impact 1/8
Couldn't load pickup availability
173 Multi Purpose High Deposition Alloy For Joining And Build Up 1/8
Couldn't load pickup availability
246 Carbide Hard Facing Stick Rod Electrode 1/4"
Couldn't load pickup availability
7355 Carbide Hard Facing Stick Rod Electrode Kit
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 3/32"
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 5/32"
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 3/16"
Couldn't load pickup availability
1/2" Cordless Drill Driver Charging Bundle
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 3/32"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
Product Description
High abrasion and heavy impact resistance for austenitic manganese steelSuperior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
Hardness: Rc 62 (2nd pass)No. of Passes: Up to threePolarity: AC or DC Reverse
Can be used for out-of-position welding
Typical Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.
Technical Specifications
| Item#: | CW1913 |
|---|---|
| Welding Process | Stick |
| Type | Tubular |
| Diameter | 3/8 " |
| Length | 18 " |
| Base Metal | Carbide |
| Carbide Type | Chromium |
| Hardness | 51-61 HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 26.0 lb |
