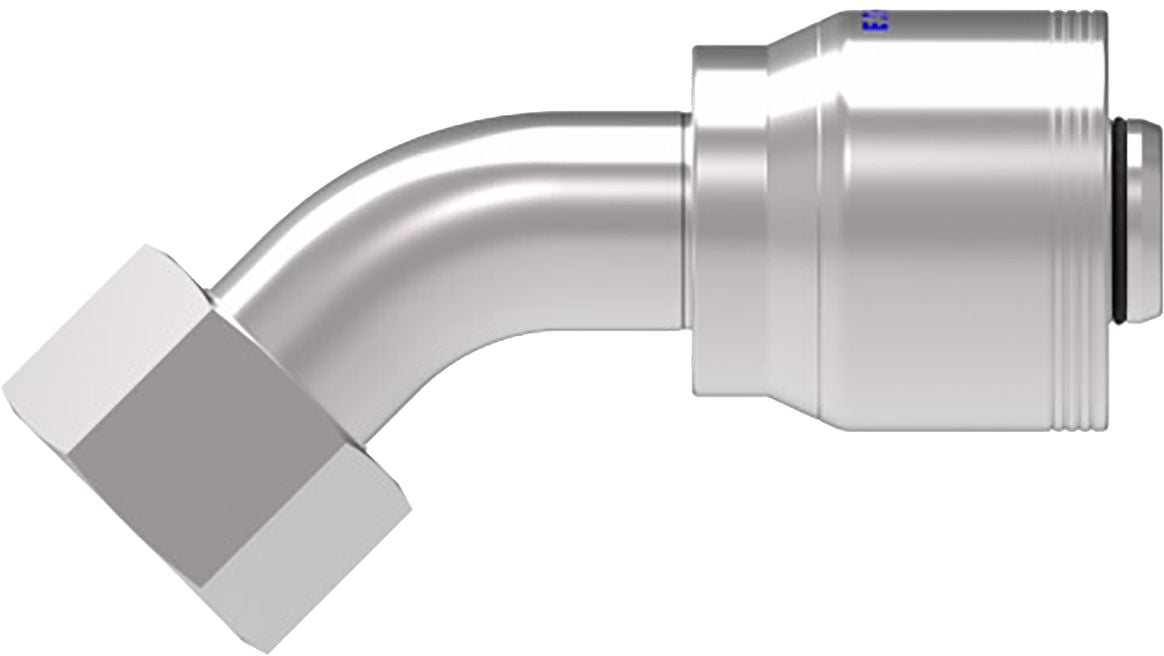

4S Series Crimp-On Elbow 45° 1/2" x 13/16-16
(Pack of 1.0)

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-25

Frequently Bought Together


Crimp-On Hose Coupling 3/4" x 1-1/16-12

Item#: 88372KH

Z Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16703

Z Series Crimp-On Hose End 1" x 1-5/16-12

Item#: 16627

Crimp-On Coupling 1/4" x 9/16-18

Item#: 51140KH

Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 16649

Z Series Crimp-On Hose End 1/2" x 1/2-14

Item#: 16584

Non-Perforated Clamp 316 SS #4 7/16 to 11/16"

Item#: 58832

DOT Compression Elbow Male 90° Brass 3/8 x 1/4"

Item#: 84284

DOT Connector Male Brass 3/8 x 1/4-18

Item#: 57506

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1554253
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1/2 (-8) "
Dash Size -8
Gender Female
Fitting End Type ORS
Fitting Angle 45 °
Fitting Drop Length .59 "
Fitting Dimension B (Working End) 13/16-16 (-8)
Weatherhead No. 4SA8FRA8
SAE Code J1176
Hex Size 0.9375 "
Material Carbon Steel
Finish DURA-KOTEᵀᴹ
Hose Cut Off Factor 1.79 "
UNSPSC #: 27121700
TAA Compliant: Yes
Weight: 0.3527 lb
