Home Hydraulics Hydraulic End Fittings 4S Series Crimp-On Elbow 45° 3/8" x 9/16-18
End Fittings

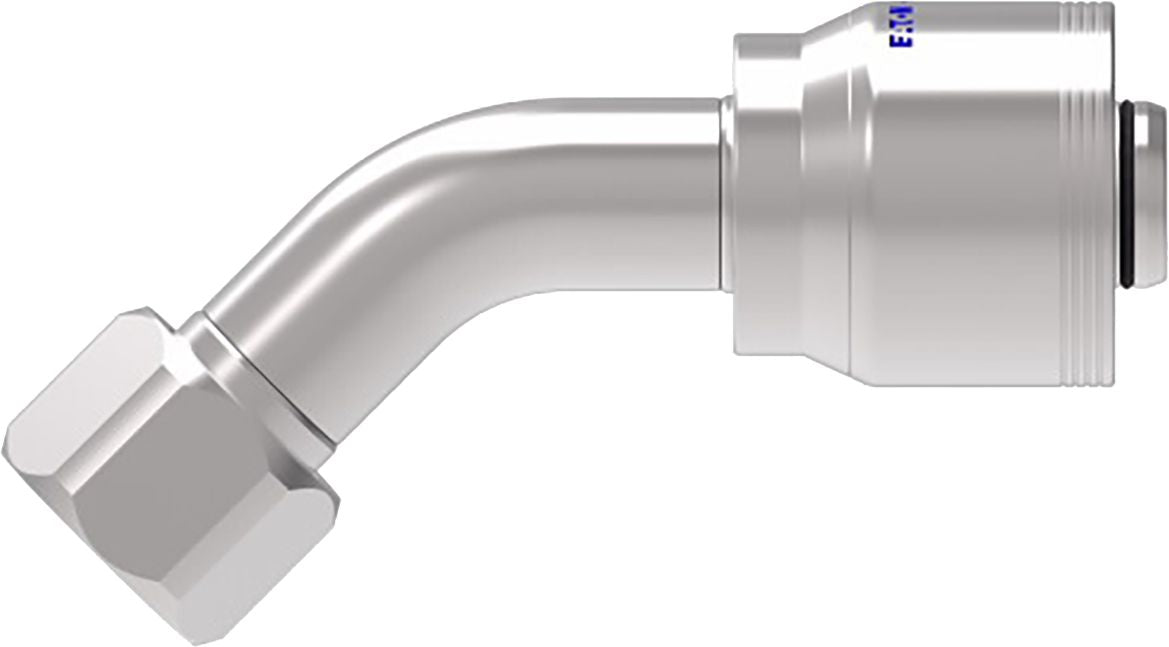

4S Series Crimp-On Elbow, Carbon Steel, Female JIC 37°, Swivel 45°, 3/8" (-6) x 9/16-18 (-6)
(Pack of 1)

Item#: 1171513

Danfoss®

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Catalog page#: 8-24

Frequently Bought Together


Z Series Crimp-On Hose End 3/8" x 13/16-16

Item#: 16707

Z Series Crimp-On Hose End 1" x 1-5/16-12

Item#: 16627

Z Series Crimp-On Hose End 3/8" x 1/2-14

Item#: 16602

Hydraulic Quick Connect Nipple 1/2" x 1/2-14

Item#: 84602

KH Series Crimp-On Coupling 1/2" x 1-1/16-12

Item#: 88292KH

MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12

Item#: 62893

Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18

Item#: 5314

Ball Check Grease Fitting 90°

Item#: 6203

DOT Compression Elbow Male 90° Brass 3/8 x 1/4"

Item#: 84284

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Superbutt Connector 22 to 18 AWG Red

Item#: 94727

Utility Knife, Folding , 4" Closed

Item#: FA5474

Product Description

Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1171513
Manufacturer Model #: 4SA6FJA6
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 3/8 (-6) "
Dash Size -6
Gender Female
Fitting End Style JIC 37 Degree Flare/SAE 45 Degree Flare
Fitting End Type Swivel
Fitting Angle 45 °
Fitting Dimension B (Working End) 9/16-18 (-6)
Weatherhead No. 4SA6FJA6
Size (-6)X(-6)
UNSPSC #: 27121707
TAA Compliant: No
