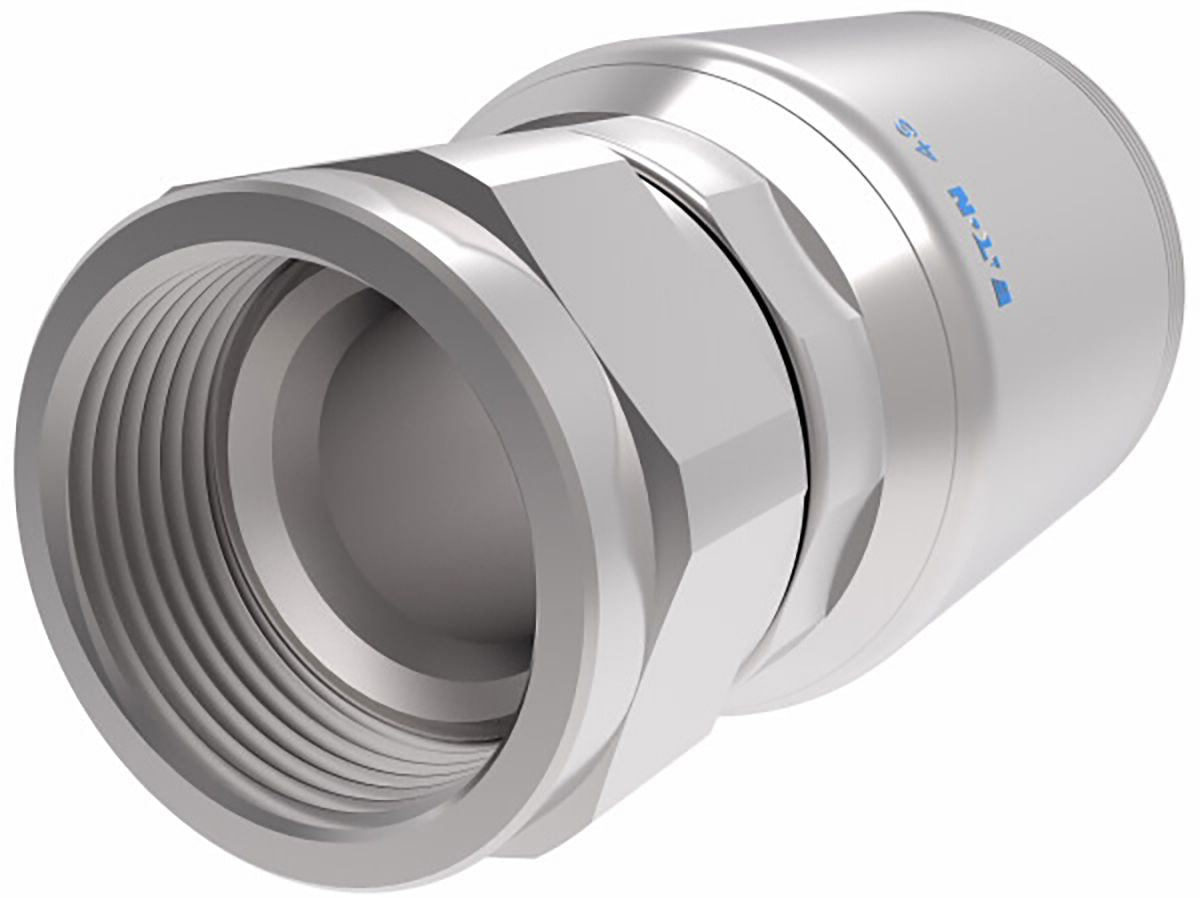

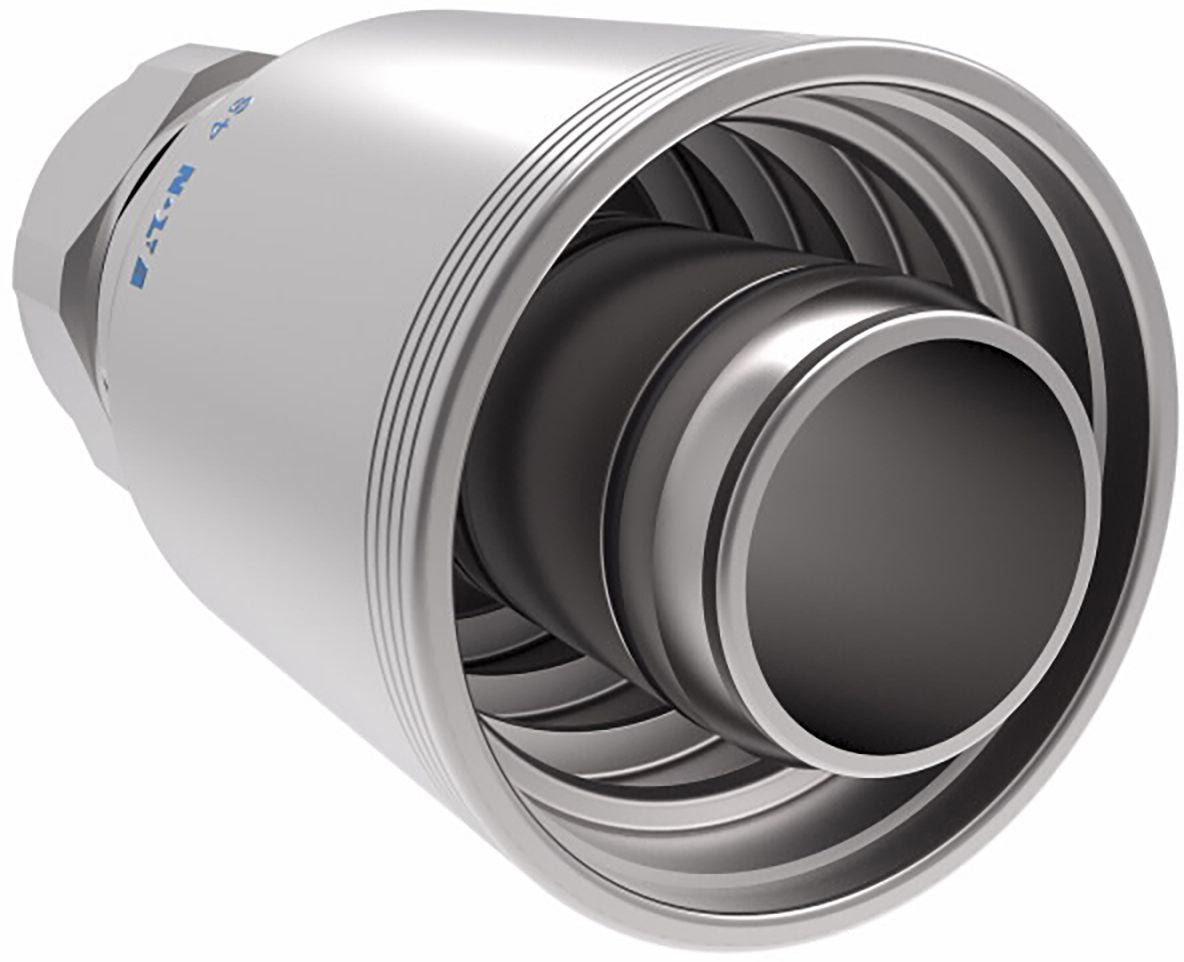

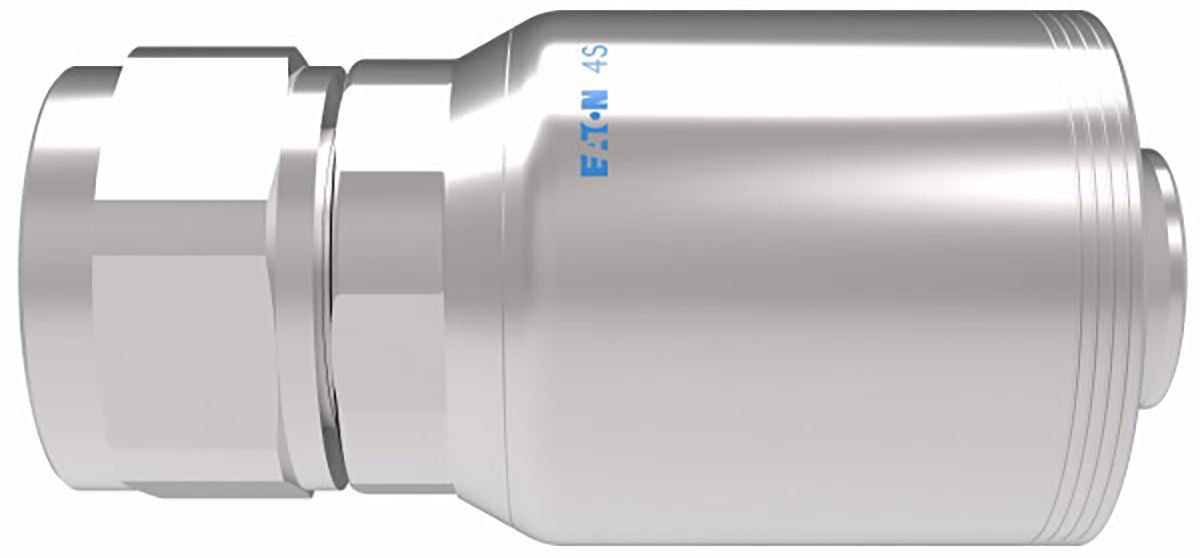

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel JIC 37°, 1-1/2 (-24) x 1-7/8-12 (-24)
(Pack of
1)
SKU:1543082 Item#: 1543082
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Z Series Crimp-On Hose End 3/8" x 13/16-16
Item#: 16707
Couldn't load pickup availability
Z Series Crimp-On Hose End 1" x 1-5/16-12
Item#: 16627
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 1/2-14
Item#: 16602
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 1/2" x 1/2-14
Item#: 84602
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 1-1/16-12
Item#: 88292KH
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12
Item#: 62893
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Item#: 5314
Couldn't load pickup availability
Ball Check Grease Fitting 90°
Item#: 6203
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Item#: 84284
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Item#: 94727
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Item#: FA5474
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Item#: 1495189
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543082 |
|---|---|
| Manufacturer Model #: | 4SA24FJ24 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/2 (-24) " |
| Dash Size | -24 |
| Gender | Female |
| Fitting End Type | JIC 37 |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-7/8-12 (-24) |
| Weatherhead No. | 4SA24FJ24 |
| SAE Code | J1176 |
| Hex Size | 2.25 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.24 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 3.34 lb |
