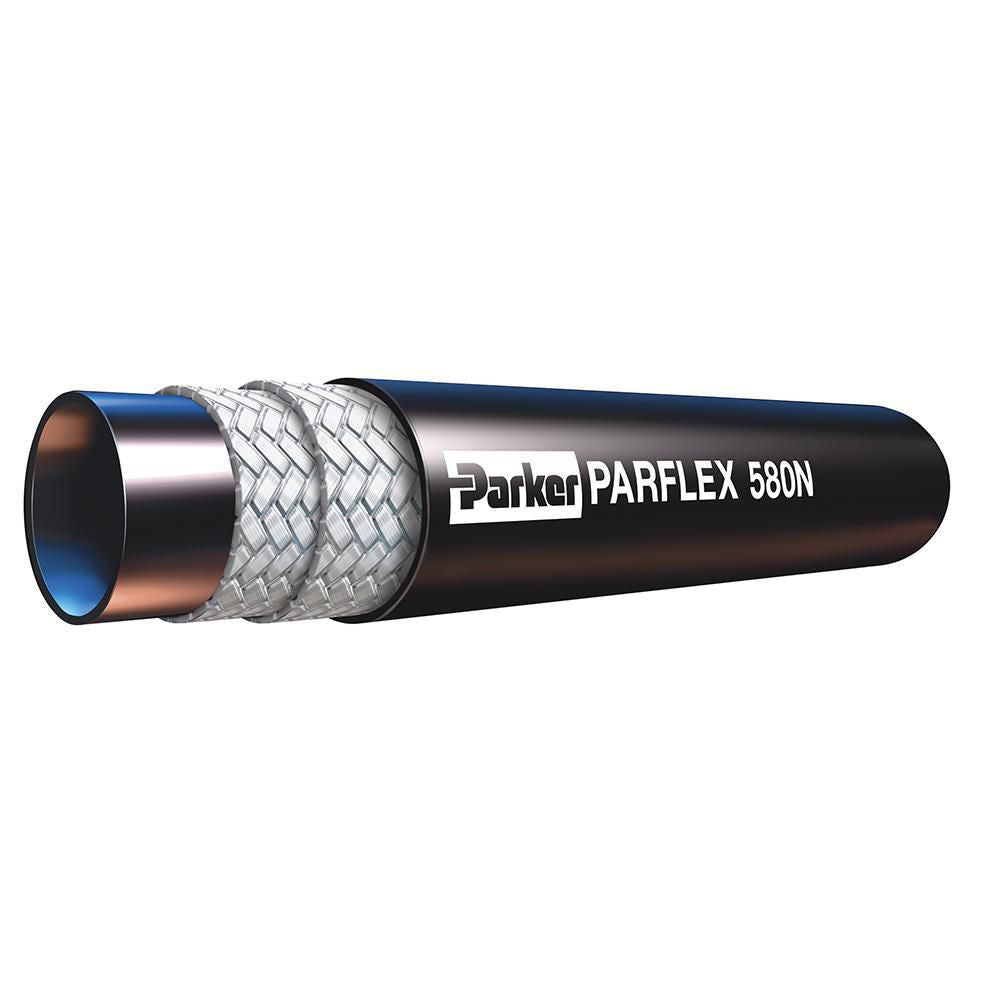

580N Hydraulic Hose, Urethane, 1-Steel Braided, 3/4" ID, 1.16" OD, 50' Length, 2250PSI, SAE 100R8
(Pack of
50)
SKU:90498 Item#: 90498
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.
• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Frequently Bought Together
SAE R2S Hydraulic Hose Rubber 0.59" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 1.41" x 250'
Couldn't load pickup availability
BluShield Single-Wire Pressure Washer Hose 3/8" X 100'
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 1-1/16-12
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12
Couldn't load pickup availability
Hydraulic Hose Protector 6 x 3" Yellow
Couldn't load pickup availability
Ball Check Grease Fitting 90°
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.33" x 250'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.65" x 50'
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.57" x 250'
Couldn't load pickup availability
2" Dia. X 1" Wide, Flap Wheel, 80 Grit, 1/4" Shank
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
Couldn't load pickup availability
12Pc SAE 12Pt Cross-Torque Wrench Set
Couldn't load pickup availability
2" Dia. X 1" Wide, Flap Wheel, 80 Grit, 1/4" Shank
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
Couldn't load pickup availability
12Pc SAE 12Pt Cross-Torque Wrench Set
Couldn't load pickup availability
Product Description
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Technical Specifications
| Item#: | 90498 |
|---|---|
| Manufacturer Model #: | 580N-12 |
| Type | Thermoplastic Hose |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R8 |
| Manufacturer Series Number | 580N |
| Manufacturer Series Name | Parflex |
| Dash Size | -12 |
| Working Pressure | 2,250 PSI |
| Burst Pressure | 9,000 PSI |
| Minimum Bend Radius | 8 " |
| Inner Tube Material | Nylon |
| Hose Reinforcement | Aramid Fiber |
| Hose Cover Material | Perforated Urethane |
| Fitting Series | 58 |
| Temperature | -40F to +212F |
| Color | Black |
| Size | 3/4 (-12) |
| Parker Crimp Fitting Series | 58 |
| Swage Die Selection | 90558 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 15.5 lb |
