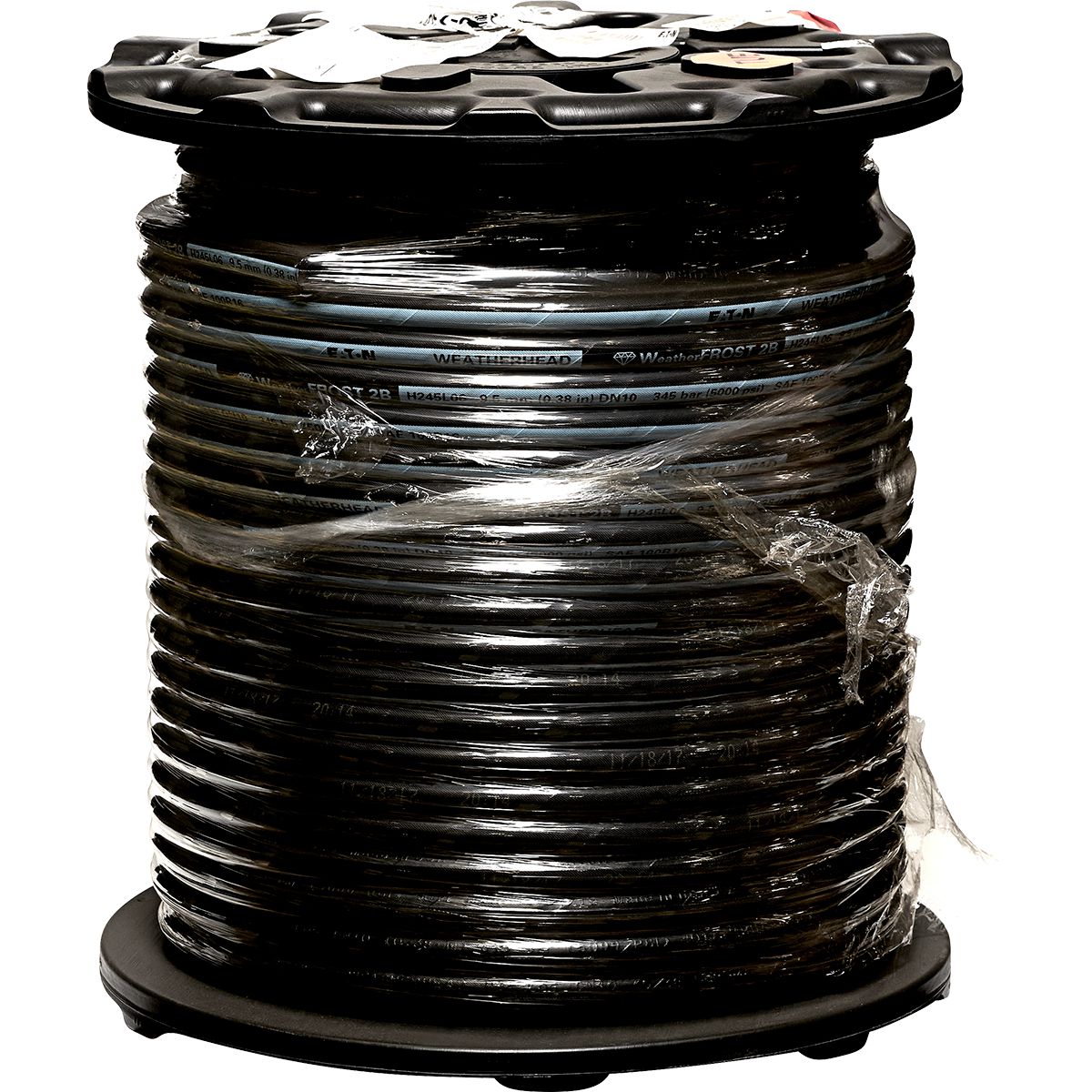

Weatherhead H280 Hydraulic Hose, Vinyl Nitrile, 2-Steel Braided, 1/4" ID, 0.53" OD, 250' Length, 6500PSI, SAE 100R16S
(Pack of
250)
SKU:50800 04 Item#: 50800 04
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard
• Agency Ratings: SAE 100R17, SAE 100R1, EN 857 1SC
• Fittings Certified: Z-Series
• Agency Approval: MSHA, ABS, USCG and DNV
• Construction:
– Inner Tube: Nitrile
– Reinforcement: Two steel braids
– Cover: Dura-Tuff Premium Abrasion
• Temperature Range:
– Petroleum and Water based fluids: –50°F to +260°F (–46°C to +127°C)
• Application Notes: Hydraulic systems service with petroleum and water-based fluids, for general use
Couldn't load pickup availability
Catalog page#: 8-11
Frequently Bought Together
SAE R2S Hydraulic Hose Rubber 0.75" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.56" x 50'
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 7/8-14
Couldn't load pickup availability
Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 13/16-16
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.75" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.56" x 50'
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Universal High-Visibility Sorbent Pad
Couldn't load pickup availability
DOT Union Nylon 1/2 x 1/2"
Couldn't load pickup availability
DOT Union Brass 5/8 x 5/8"
Couldn't load pickup availability
Product Description
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard• Agency Ratings: SAE 100R17, SAE 100R1, EN 857 1SC
• Fittings Certified: Z-Series
• Agency Approval: MSHA, ABS, USCG and DNV
• Construction:
– Inner Tube: Nitrile
– Reinforcement: Two steel braids
– Cover: Dura-Tuff Premium Abrasion
• Temperature Range:
– Petroleum and Water based fluids: –50°F to +260°F (–46°C to +127°C)
• Application Notes: Hydraulic systems service with petroleum and water-based fluids, for general use
Technical Specifications
| Item#: | 50800 04 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R17 |
| Industry Rating 2 | EN 857 1SC |
| Industry Rating | MSHA, ABS, USCG and DNV |
| Manufacturer Series Number | H280 |
| Manufacturer Series Name | DURA-TUFF |
| I.D. | 1/4 (-4) " |
| Hose O.D. | 0.53 " |
| Working Pressure | 6,500 PSI |
| Burst Pressure | 26,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 2 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Nitrile |
| Temperature | High |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | Petroleum based fluids -50F to +260F, Water based fluids -50F to +260 F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 45.0 lb |
