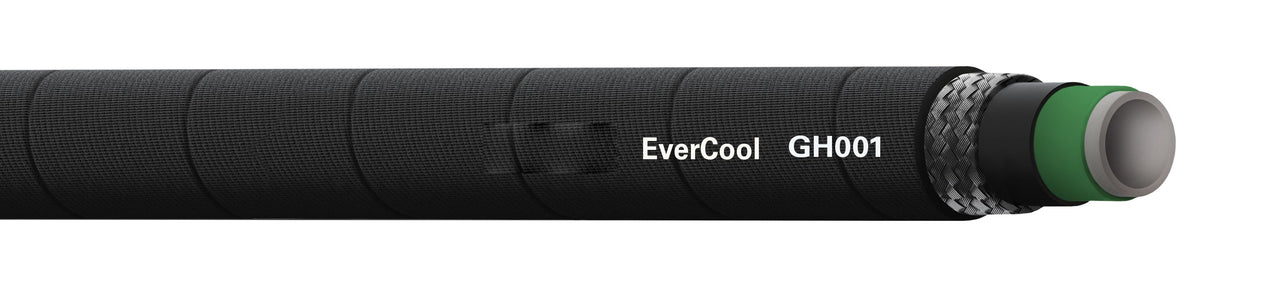

WeatherHd GH001 Multi-Refrigerant Hose, Poly. Braid Rnfrcmnt & Polyamide Veneer Tube, 500PSI, 1/2(-10)"(ID),0.78"(OD),50ft
(Pack of
50)
SKU:17425 10 Item#: 17425 10
• Agency Ratings: Significantly exceeds SAE J2064 Coupling Integrity, vibration and impulse tested
• Fittings Certified: E-Z Clip® Series
• Agency Approvals: None
• Construction:
– Inner Tube: Polyamide veneer
– Reinforcement: Polyester braid
– Cover: EPDM
• Temperature Range: –40°F to +284°F (–40°C to +140°C)
Use only with Weatherhead® E-Z Clip® Series Hose Ends
• Application Note: Transportation, refrigeration and air conditioning systems
50-ft. length consists of no more than two pieces with none shorter than 10 feet. Total length may vary (±10%).
Couldn't load pickup availability
Catalog page#: 8-122
Frequently Bought Together
SAE R2S Hydraulic Hose Rubber 0.75" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 250'
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 1-33/64" x 50'
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Hydraulic Cap Nut, 7/8-14"(10) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
DOT Union Brass 1/2 x 1/2"
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/16"
Couldn't load pickup availability
S Series Teflon Hydraulic Hose 1.12" 1ft
Couldn't load pickup availability
Standpipe to Male Air Brake PTFE Hose 1/2" 36"
Couldn't load pickup availability
SC Series Teflon Hydraulic Hose 0.41" 1ft
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Product Description
• Agency Ratings: Significantly exceeds SAE J2064 Coupling Integrity, vibration and impulse tested• Fittings Certified: E-Z Clip® Series
• Agency Approvals: None
• Construction:
– Inner Tube: Polyamide veneer
– Reinforcement: Polyester braid
– Cover: EPDM
• Temperature Range: –40°F to +284°F (–40°C to +140°C)
Use only with Weatherhead® E-Z Clip® Series Hose Ends
• Application Note: Transportation, refrigeration and air conditioning systems
50-ft. length consists of no more than two pieces with none shorter than 10 feet. Total length may vary (±10%).
Technical Specifications
| Item#: | 17425 10 |
|---|---|
| Type | Refigerant Hose |
| Category / Performance | Low Pressure |
| Industry Rating 2 | SAE J2064 Type E, Class 1 |
| Manufacturer Series Number | GH001 |
| Manufacturer Series Name | Weatherhead |
| Hose I.D. | 1/2 (-10) " |
| Working Pressure | 500 PSI |
| Burst Pressure | 2,000 PSI |
| Bend Radius | 3 " |
| Inner Tube Material | Polyamide veneer |
| Hose Reinforcement | Polyester Braid |
| Hose Cover Material | Chlorobutyl |
| Fitting Series | E-Z Clip Series |
| Temperature | -40F to +275F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 9.0 lb |
