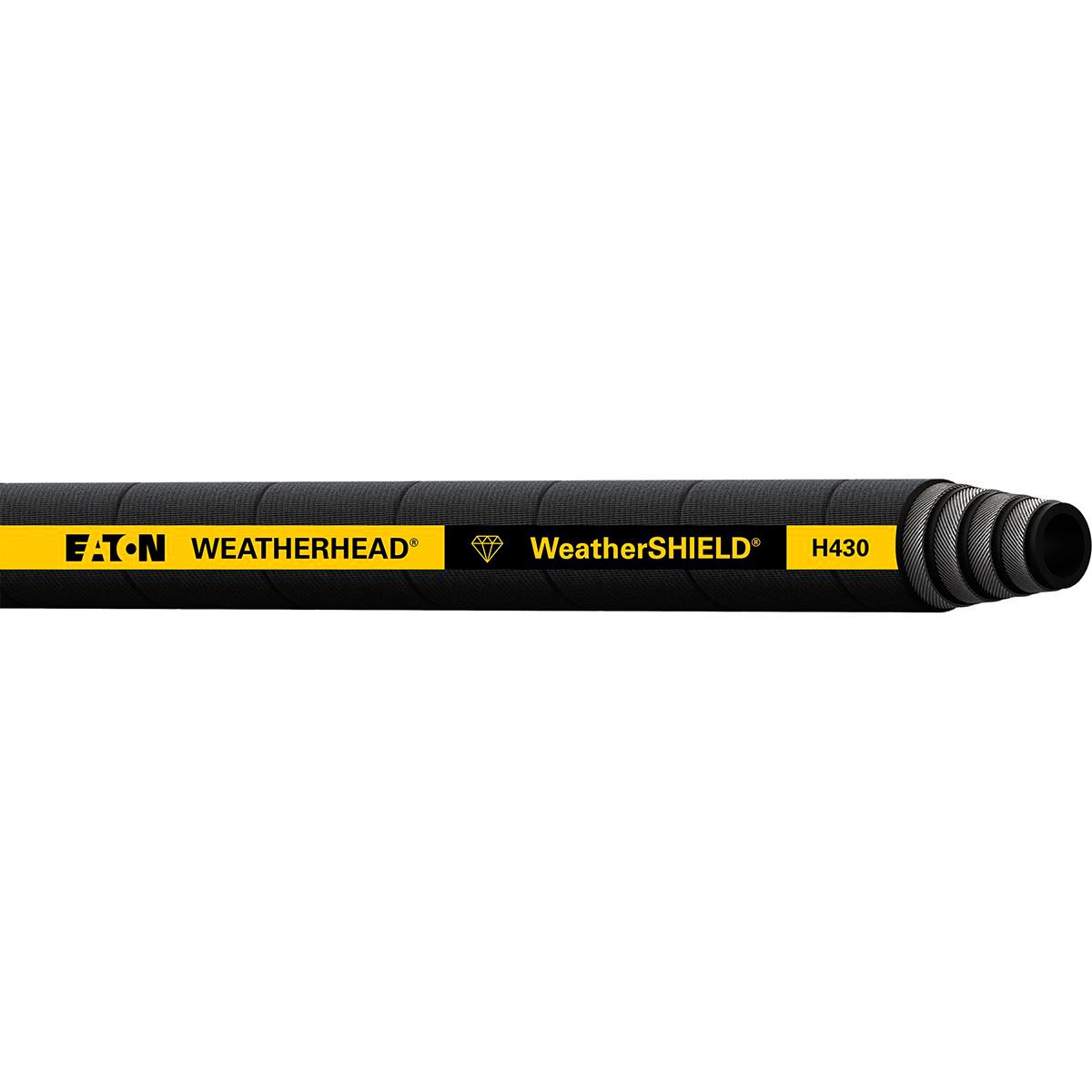

Weatherhead H430 Hydraulic Hose, Vinyl Nitrile, 4-Spiral Steel Plies, 1" ID, 1-33/64" OD, 50' Length, 5100PSI, SAE 100R12
(Pack of
50)
SKU:63516 16 Item#: 63516 16
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard
• Agency Ratings: SAE 100R12, EN 856 Type R12 Performance
• Fittings Certified: 4S Series
• Agency Approvals: MSHA, ABS, DNV, USCG
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 4-wire spiral
– Cover: Dura-Tuff Premium Abrasion Resistance
• Temperature Range: – Petroleum-based fluids: –40°F to +260°F (–40°C to +126°C)
• Application Notes:
– For very high pressure hydraulic lines that experience pulsation and flexing during operation
– Recommended for construction, mining, farming and high-performance industrial equipment
– 1/2 normal SAE100R12 bend radius
Consists of two pieces totaling 50 feet (±10%)
NOTE: Consult your sales agent for availability of special sizes and lengths
Couldn't load pickup availability
Catalog page#: 8-23
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 1.09" x 50'
Couldn't load pickup availability
GH001Multi-Refrigerant Hose 1/2" 50ft
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.87" x 50'
Couldn't load pickup availability
Crimp-On Coupling 3/8" x 11/16-16
Couldn't load pickup availability
KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 1.09" x 50'
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.87" x 50'
Couldn't load pickup availability
EC215 Winner Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Product Description
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard• Agency Ratings: SAE 100R12, EN 856 Type R12 Performance
• Fittings Certified: 4S Series
• Agency Approvals: MSHA, ABS, DNV, USCG
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 4-wire spiral
– Cover: Dura-Tuff Premium Abrasion Resistance
• Temperature Range: – Petroleum-based fluids: –40°F to +260°F (–40°C to +126°C)
• Application Notes:
– For very high pressure hydraulic lines that experience pulsation and flexing during operation
– Recommended for construction, mining, farming and high-performance industrial equipment
– 1/2 normal SAE100R12 bend radius
Consists of two pieces totaling 50 feet (±10%)
NOTE: Consult your sales agent for availability of special sizes and lengths
Technical Specifications
| Item#: | 63516 16 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Spiral Plies |
| Category / Performance | Very High Pressure |
| Industry Rating 1 | SAE 100R12 |
| Industry Rating 2 | EN 856 Type R12 |
| Industry Rating | MSHA, ABS, DNV, USCG |
| Manufacturer Series Number | H430 |
| I.D. | 1 (-16) " |
| Hose O.D. | 1.49 " |
| Working Pressure | 5,100 PSI |
| Burst Pressure | 20,400 PSI |
| Fitting Series | 4S Series |
| Bend Radius | 5.91 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 4 Spiral Steel Plies |
| Hose Cover Material | Nitrile |
| Temperature | High |
| Length | 50 ft |
| Size | -16 |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Impulse |
| Temperature Range | -40F to +260F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 80.0 lb |
