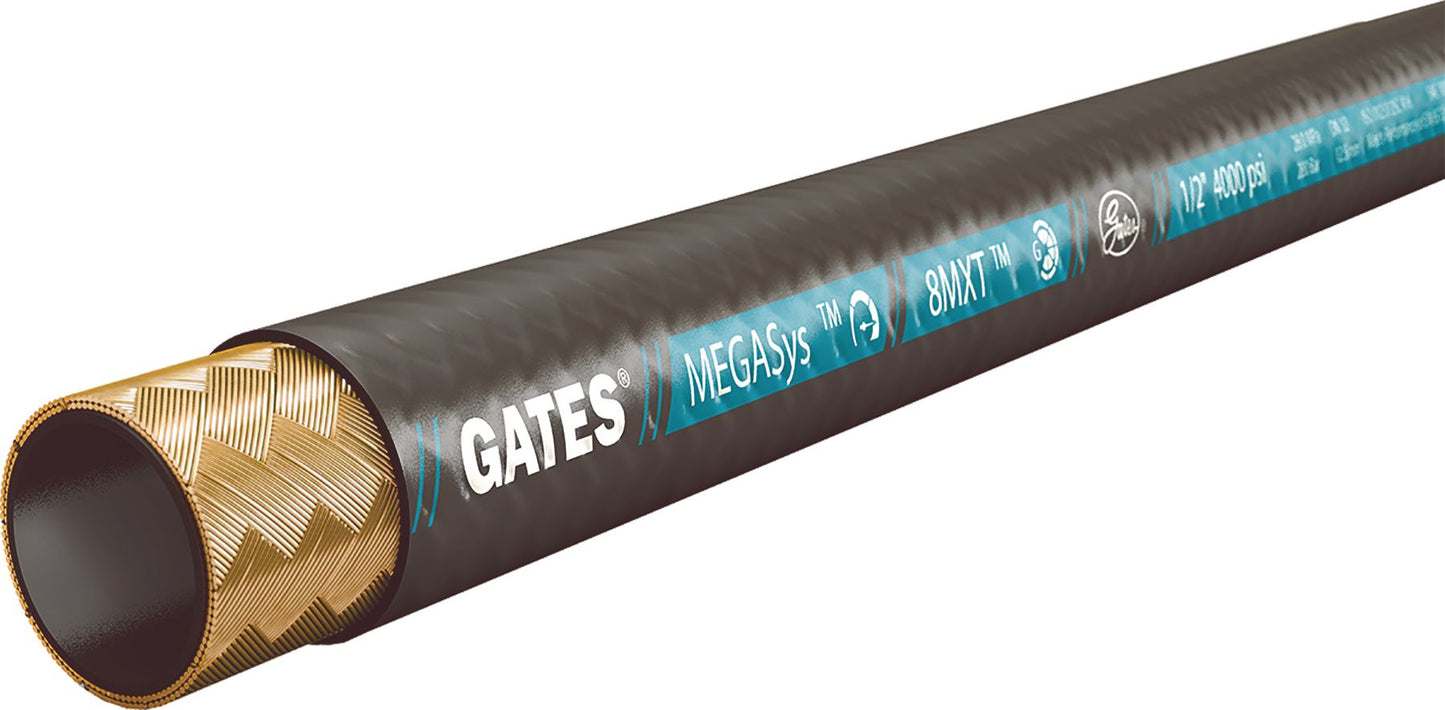

MEGASys® MXT Hydraulic Hose, Polychloroprene, 2-Steel Braided, 1/2" ID, 0.8" OD, 330' Length, 4000PSI, SAE 100R16
(Pack of
330)
SKU:1593109 Item#: 1593109
Recommended for high-pressure hydraulic oil lines. MXT™ hose has smaller exterior dimensions, lower force to bend and significantly tighter bend radius than all SAE specs listed below. It is one of Lawson’s most flexible hydraulic hoses.
• Reinforcement: High-tensile steel wire braid
SAE 100R16
• Temperature range: –40°F to +212°F (–40°C to +100°C)
• Meets SAE 100R16 dimensions and performance
• Meets SAE 100R17 (-6, -8, -10, and -12) dimension and performance
• Meets SAE 100R2 performance
• Meets SAE 100R19 (-6 and -8) performance

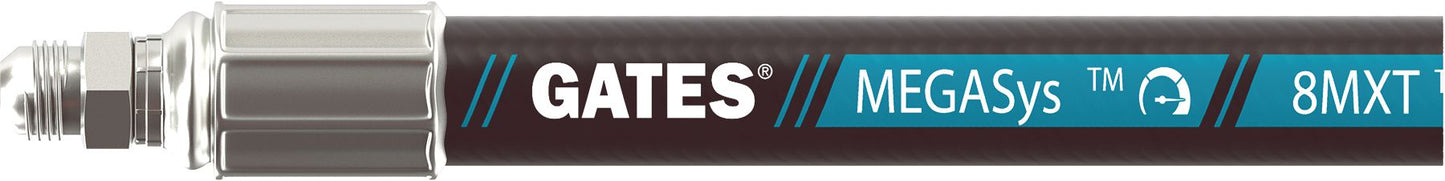

Use with MegaCrimp® Fittings
Coupling Recomendations:
MegaCrimp® Couplings
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
Couldn't load pickup availability
Catalog page#: 8-43
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 0.67" x 250'
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 1-7/32" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.69" x 250'
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.644 x 0.087"
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 7/8-14
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 250'
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 1-7/32" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.69" x 250'
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Product Description
Recommended for high-pressure hydraulic oil lines. MXT™ hose has smaller exterior dimensions, lower force to bend and significantly tighter bend radius than all SAE specs listed below. It is one of Lawson’s most flexible hydraulic hoses.• Reinforcement: High-tensile steel wire braid
SAE 100R16
• Temperature range: –40°F to +212°F (–40°C to +100°C)
• Meets SAE 100R16 dimensions and performance
• Meets SAE 100R17 (-6, -8, -10, and -12) dimension and performance
• Meets SAE 100R2 performance
• Meets SAE 100R19 (-6 and -8) performance
Use with MegaCrimp® Fittings
Coupling Recomendations:
MegaCrimp® Couplings
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
Technical Specifications
| Item#: | 1593109 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R16 |
| Industry Rating 2 | EN 857 2SC |
| Industry Rating | MSHA 2G |
| Manufacturer Series Number | MXT |
| Manufacturer Series Name | MXT |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 0.8 " |
| Working Pressure | 4,000 PSI |
| Burst Pressure | 16,000 PSI |
| Fitting Series | MegaCrimp |
| Bend Radius | 2.8 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 High-Tensile Steel Braid |
| Hose Cover Material | Synthetic Rubber (Polychloroprene) |
| Temperature | Normal |
| Stock | Non-Stock |
| Material | Hydraulic Oil |
| Applications | Hydraulic |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 138.0 lb |
