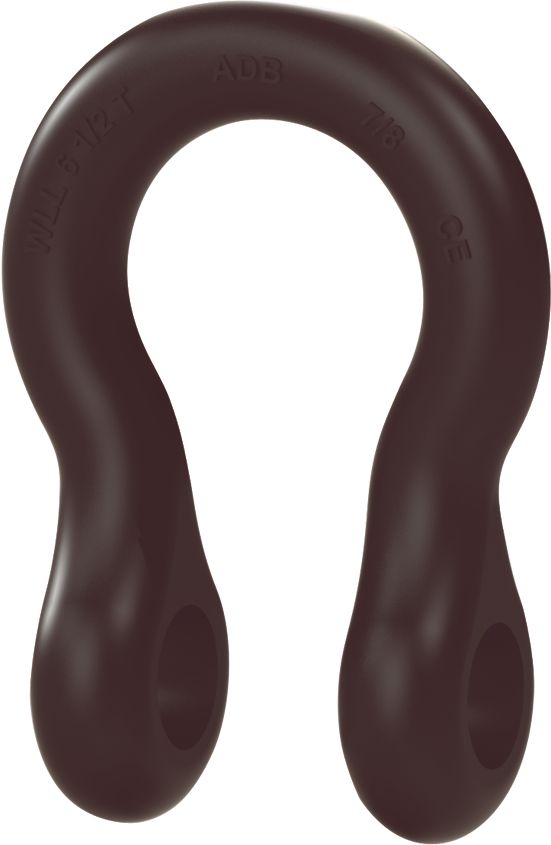

Bolt Type Anchor Shackle
(Pack of
1)
SKU:1423426 Item#: 1423426
The Fast-Lok Pin is designed for use in applications where quick and easy removal is desired. The user is reminded to insure pin is properly installed prior to applying load. NOTE: Minimum ultimate load is 6 times the working load limit. Bolt type anchor shackles supplied with thin head bolt & nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3.
• Use electrode AWS class E7018 per MIL-E-22200/1
• For MIG welding use ER70S-2 or ER70S-6 .035 diameter wire
• Center Fast-Lok Plate with 1/16" clearance on each side
• Align with top surface of road plate and tack weld in place to start
• Preheat the Fast-Lok Plate and roadplate in an area approximately 6" radius around the roadplate cutout hole to 200°-300° F
• Preheat temperature must be held during the welding process. A propane torch could be used for this
• Use fresh electrodes because old electrodes may have absorbed humidity into the flux which could cause cracking
• Weld Fast-Lok Plate to road plate from top side
• Cool gradually to prevent cracking
Product Description
The Fast-Lok Pin is designed for use in applications where quick and easy removal is desired. The user is reminded to insure pin is properly installed prior to applying load. NOTE: Minimum ultimate load is 6 times the working load limit. Bolt type anchor shackles supplied with thin head bolt & nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3.• Use electrode AWS class E7018 per MIL-E-22200/1
• For MIG welding use ER70S-2 or ER70S-6 .035 diameter wire
• Center Fast-Lok Plate with 1/16" clearance on each side
• Align with top surface of road plate and tack weld in place to start
• Preheat the Fast-Lok Plate and roadplate in an area approximately 6" radius around the roadplate cutout hole to 200°-300° F
• Preheat temperature must be held during the welding process. A propane torch could be used for this
• Use fresh electrodes because old electrodes may have absorbed humidity into the flux which could cause cracking
• Weld Fast-Lok Plate to road plate from top side
• Cool gradually to prevent cracking
Technical Specifications
| Item#: | 1423426 |
|---|---|
| Type | Fast-Lok® |
| Working Load Limit | 10,000 lb |
| Dimension C | 7/8 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
