Home Fasteners Blind Rivet Nut Insert Riv-Float 1/4-20
Fasteners

Blind Rivet Nut Insert Riv-Float 1/4-20
(Pack of 25.0)

Sherex Fastening Solutions

• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

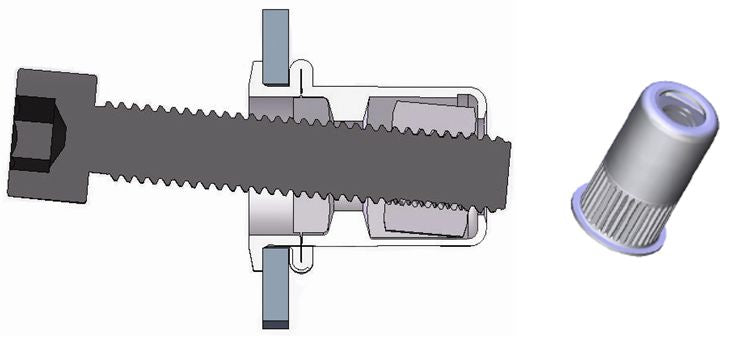

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body

Read More

Catalog page#: 6-20

Frequently Bought Together


SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: 88441

Hex Nut Grade 5 Steel 1/4-20

Item#: FA95677

Hex Nut Grade 8 Alloy Steel 5/16-18

Item#: A101

Blind Rivet Nut Insert Flat Head 5/16-18

Item#: 1405843

Blind Rivet Nut Insert Flat Head 1/4-20

Item#: 1405712

Blind Rivet Nut Insert Flat Head 5/16-18

Item#: 1405484

Plastic Covered Primary Wire 12 AWG 100' Black

Item#: 5552K

Straight Barrel Battery Terminal 1/0 AWG Positive

Item#: 41411

Cross Linked Primary Wire 18 AWG 100' Blue

Item#: 18289

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104

Diamond Grip II Installation Kit 5/16-18

Item#: 84218

Diamond Grip II Installation Kit M6-1

Item#: 94642

Conversion Kit Standard 5/16-18

Item#: 93429

Product Description

• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body

Technical Specifications

Item#: 1405642
Diameter 1/4 "
Grip Range .027 - .150 "
Length 0.819 "
Thread Pitch 20
Hole Size 0.531
Body Type Knurled
Head Style Large Flange
Style Riv-Float
Material Steel
Finish Bright Zinc
Size 1/4-20
Type Blind Rivet Nut
UNSPSC #: 31162802
TAA Compliant: Yes
