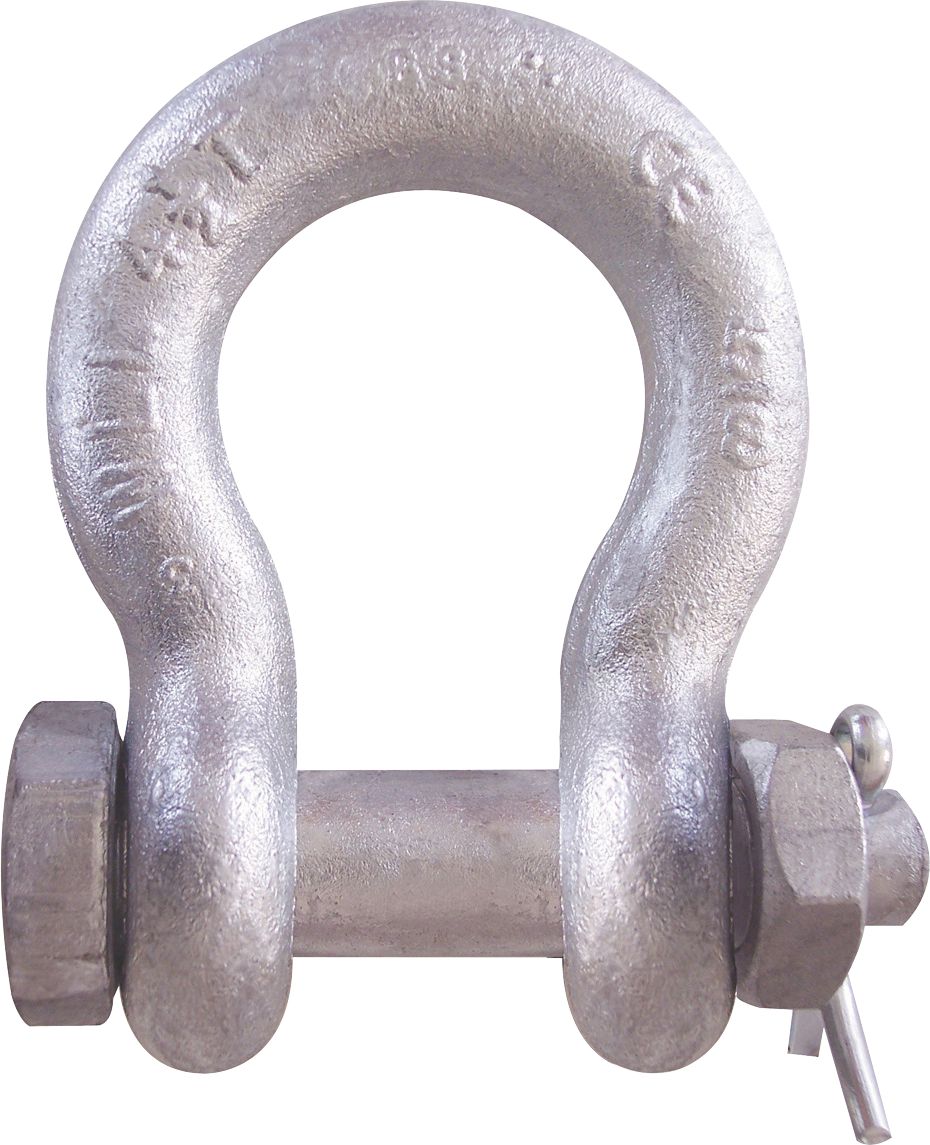

Bolt, Nut and Cotter Anchor Shackle, 1/2", 6,000 lb WLL
(Pack of
2)
Bolt, nut, and cotter pin shackles provide the most secure pin (bolt) arrangement of all styles. Will resist axial loading and torsional loading.
• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 3
• Design factor 6:1
• Used in applications where shackle is semi-permanent with infrequent removal
CAUTION: Do not exceed working load limits.
Frequently Bought Together
Swivel Eye Bolt Snap, 5/8" Eye Size, 4-1/4" Length, Zinc Finish
Couldn't load pickup availability
Eye Bolts, Machinery, 5/16 x 1-1/8"
Couldn't load pickup availability
S-Hook Zinc Plated Heavy Steel 1-1/2" Length
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 50
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL
Couldn't load pickup availability
Tuflex Roundsling, Polyester/Nylon, Yellow, 4' Length
Couldn't load pickup availability
Oversize Round Pin Anchor Shackle, Stainless Steel, 5/8", 4,000 lb WLL
Couldn't load pickup availability
Oversize Bolt Anchor Shackle, Stainless Steel, 1/2", 3,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 7/16", 2,000 lb WLL
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Product Description
Bolt, nut, and cotter pin shackles provide the most secure pin (bolt) arrangement of all styles. Will resist axial loading and torsional loading.• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 3
• Design factor 6:1
• Used in applications where shackle is semi-permanent with infrequent removal
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1429918 |
|---|---|
| Type | Anchor Shackle |
| Style | Bolt, Nut and Cotter |
| Body Material | Carbon Steel |
| Finish | Galvanized |
| Size | 1/2 " |
| Working Load Limit | 6,000 lb |
| Pin Diameter | 5/8 " |
| Pin Material | Alloy Steel |
| Width Between Eyes | 13/16 " |
| Bow Width | 1-3/16 " |
| Depth | 1-7/8 " |
| UNSPSC #: | 31162803 |
| TAA Compliant: | Yes |
| Weight: | 1.89 lb |
