Confined Space Kit with Tripod, 60 ft 3-Way Self-Retracting Lifeline with Rescue Capability, Pulley, Self-Locking Carabiner, Hoist Bracket, Aluminum
(Pack of
1)
SKU:1648719 Item#: 1648719

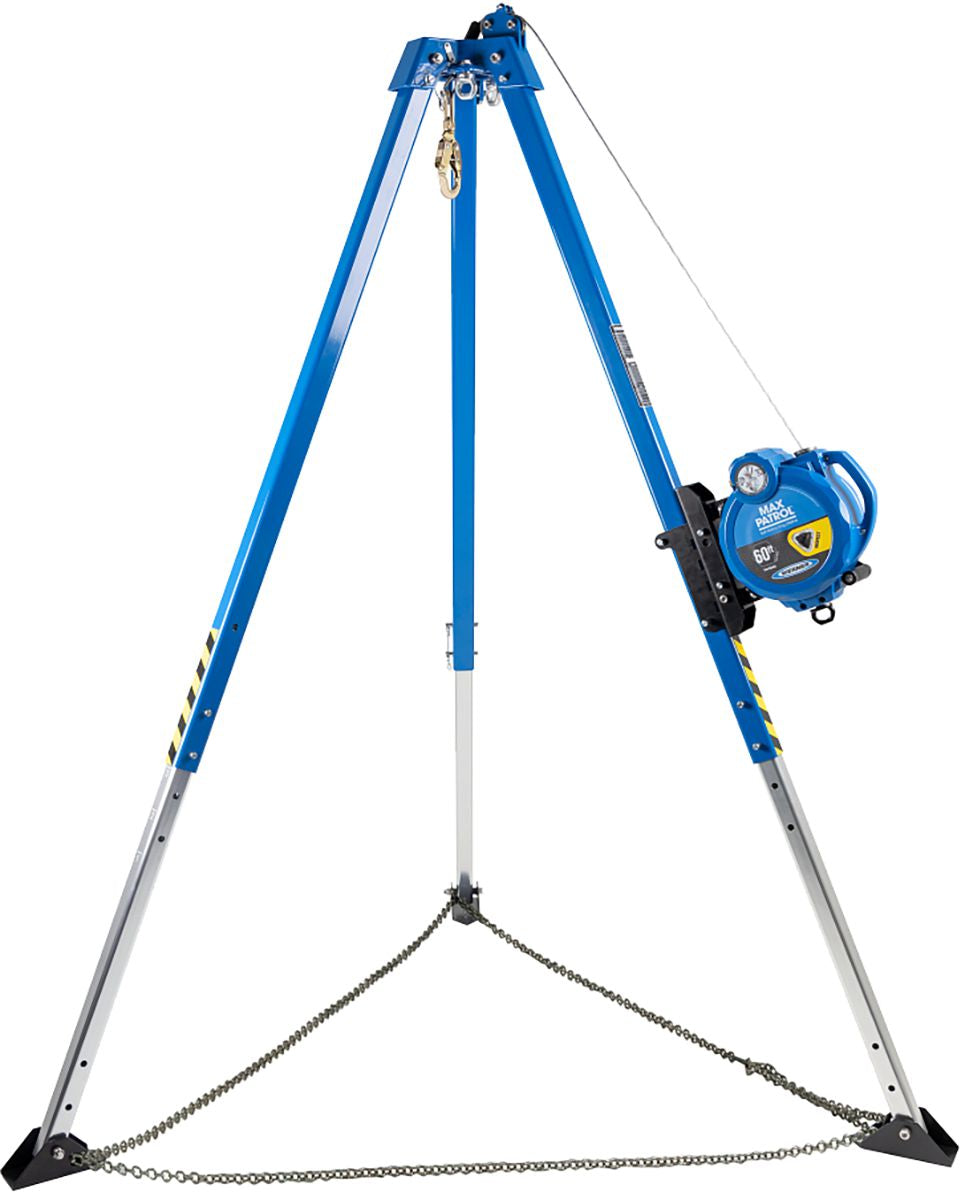

The Werner T700000X Confined Space Kit includes the T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way Self-Retracting Lifeline with Rescue Capability (SRL-R), T510045 60-foot Material Hoist, and T200007 Pulley and Carabiner. Two T100008B Mounting Brackets attach the 60-foot 3-Way SRL-R and the 60-foot Material Hoist to any leg of the tripod. Also included is the T510080B Hoist Bracket that attaches the 60-foot Material Hoist. The Tripod extends from 58-97-inches in height for installation over openings with a maximum diameter of 42-inches when fully extended and meets the requirements of ANSI Z359.18-2017 Type A. The 3-Way SRL-R is designed for a single user with a capacity up to 310 pounds total working weight and has an aluminum housing with a lifting ratio of 6.5:1. When tested to the requirements of the ANSI Z359.14-2021 standard for Class 1 for SRLs, the 3-Way SRL-R has an average arrest force of 1,350 pounds and a maximum arrest distance of 24-inches. The hoist is capable of raising and lowering loads of up to 450 pounds. The Material Hoist has 60 feet of 3⁄16-inch diameter galvanized steel cable.
• Confined Space Kit with Tripod, 60-foot 3-Way SRL-R, Bracket, Pulley, Carabiner, Hoist Bracket, and 60-foot Hoist
• Confined Space Kit includes T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way SRL-R, (2) T100008B Mounting Brackets, T510080B Hoist Bracket, T510045 60-foot Material Hoist and T200007 Pulley and carabiner
• High strength, lightweight Aluminum Tripod extends from 58-inches to 97-inches in height
• Tripod meets ANSI Z359.18-2017 Type A and OSHA regulations
• The 60-foot 3-Way SRL-R has maximum arrest distance of 24-inches
• 3-Way SRL-R meets ANSI z359.14-2021 Class 1 SRL-R and OSHA Standards
• Material Hoist is capable of raising and lowering loads of up to 450 lbs.
• Pulley is for use with up to a 3/16-inch diameter steel cable and has an 8,100 lbs. tensile breaking strength
Frequently Bought Together
A728200 Single Piece Permanent Roof Anchor
Couldn't load pickup availability
A570003 Replacement Stainless Steel Bolts for 5K Steel Mega-Swivel
Couldn't load pickup availability
Squids 3105 Tool Lanyard, Carabiner and Cinch Loop, 15lbs
Couldn't load pickup availability
ProForm™ F3 H063005 Climbing/Positioning Harness, Quick Connect Legs
Couldn't load pickup availability
ProForm™ F3 H063002 Climbing/Positioning Harness, Quick Connect Legs
Couldn't load pickup availability
ProForm™ Switchpoint H062144 Climbing/Construction Harness, Tongue Buckle Legs
Couldn't load pickup availability
Baseball Style Bump Cap with HDPE Protective Liner and Adjustable Back
Couldn't load pickup availability
Premium Nitrile Gloves, Black, 6 Mil, Medium, 1,000/Case
Couldn't load pickup availability
Premium Nitrile Gloves, Orange, 6 Mil, 2X-Large, 100/Box
Couldn't load pickup availability
500G Tsunami Grip® Light Coated Gloves
Couldn't load pickup availability
Diamond-Textured Nitrile Gloves, Orange, 6 Mil, X-Large, 100/Box
Couldn't load pickup availability
Laser Lite Ear Plugs
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
The Werner T700000X Confined Space Kit includes the T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way Self-Retracting Lifeline with Rescue Capability (SRL-R), T510045 60-foot Material Hoist, and T200007 Pulley and Carabiner. Two T100008B Mounting Brackets attach the 60-foot 3-Way SRL-R and the 60-foot Material Hoist to any leg of the tripod. Also included is the T510080B Hoist Bracket that attaches the 60-foot Material Hoist. The Tripod extends from 58-97-inches in height for installation over openings with a maximum diameter of 42-inches when fully extended and meets the requirements of ANSI Z359.18-2017 Type A. The 3-Way SRL-R is designed for a single user with a capacity up to 310 pounds total working weight and has an aluminum housing with a lifting ratio of 6.5:1. When tested to the requirements of the ANSI Z359.14-2021 standard for Class 1 for SRLs, the 3-Way SRL-R has an average arrest force of 1,350 pounds and a maximum arrest distance of 24-inches. The hoist is capable of raising and lowering loads of up to 450 pounds. The Material Hoist has 60 feet of 3⁄16-inch diameter galvanized steel cable.• Confined Space Kit with Tripod, 60-foot 3-Way SRL-R, Bracket, Pulley, Carabiner, Hoist Bracket, and 60-foot Hoist
• Confined Space Kit includes T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way SRL-R, (2) T100008B Mounting Brackets, T510080B Hoist Bracket, T510045 60-foot Material Hoist and T200007 Pulley and carabiner
• High strength, lightweight Aluminum Tripod extends from 58-inches to 97-inches in height
• Tripod meets ANSI Z359.18-2017 Type A and OSHA regulations
• The 60-foot 3-Way SRL-R has maximum arrest distance of 24-inches
• 3-Way SRL-R meets ANSI z359.14-2021 Class 1 SRL-R and OSHA Standards
• Material Hoist is capable of raising and lowering loads of up to 450 lbs.
• Pulley is for use with up to a 3/16-inch diameter steel cable and has an 8,100 lbs. tensile breaking strength
Technical Specifications
| Item#: | 1648719 |
|---|---|
| Manufacturer Model #: | T700000X |
| Type | Confined Space Kit |
| Material | Aluminum |
| Width | 39.6 " |
| Approvals | ANSI Z359.18-2017 Type A, ANSI Z359.14-2021 Class 1 SRL-R, OSHA |
| Gate Opening | 3/4 " |
| Gate Type | Self-Closing; Self-Locking |
| Closure Type | Self-Locking Carabiner |
| Height | 96 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46182301 |
| TAA Compliant: | Yes |
