Home Material Handling Roller Chain and Tools Links Connecting Link, Double Strand, Steel, Industry No. 80-2
Links
Connecting Link, Double Strand, Steel, Industry No. 80-2, 1
Connecting Link, Double Strand, Steel, Industry No. 80-2, 1

Connecting Link, Double Strand, Steel, Industry No. 80-2, 1" Pitch, 35,200lbs Average Tensile Strength
(Pack of 5)

Item#: 1593434

Daido®

Connecting Link, Double Strand, Steel, Industry No. 80-2, 1" Pitch, 35,200lbs Average Tensile Strength

Read More
Check Availability

Frequently Bought Together

Offset Link (Half Link), Single Strand, Ultimate Power, Steel, Industr, Offset Link (Half Link), Single Strand

Connecting Link, Single Strand, Ultimate Power, Steel, Industry No. 80

Item#: 1443429
Connecting Link, Single Strand, Steel, Industry No. 12B, 3/4

Connecting Link, Single Strand, Steel, Industry No. 12B

Item#: 1443600
Connecting Link, Double Strand, Steel, Industry No. 25-2, 1/4

Connecting Link, Double Strand, Steel, Industry No. 25-2

Item#: 1443570
Wire Rope Sleeve, 7/32

Wire Rope Sleeve, 3/16", Aluminum

Item#: 1440293
Screw Pin Anchor Shackle, 5/8

Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL

Item#: 1424879
Tuff-Edge® Web Sling, Polyester, Silver, 8' Length, Sling, Web, Tuff-Edge, Eye & Eye, Type 3, Flat Eye, 2

Tuff-Edge® Web Sling, Polyester, Silver, 4' Length

Item#: 1412752
Offset Link (Half Link), Single Strand, Heavy, Steel, Industry No. 100H, 1-1/4

Offset Link (Half Link), Single Strand, Heavy, Steel, Industry No. 100

Item#: 1443525
Chain Puller Roller Chain 3/8 - 3/4

Chain Puller Roller Chain 3/8 - 3/4" Pitch Size

Item#: 97704
Offset Link (Half Link), Single Strand, Steel, Nickel Plated, Industry No. 35, 3/8

Offset Link (Half Link), Single Strand, Steel, Nickel Plated, Industry

Item#: 1443532
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511
Superbutt Connector 16 to 14 AWG Blue, Superbutt Connector, Extended Barrel, Blue, 16 to 14 AWG, 1.075

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728
Stepdown Butt Connector 16 to 14/12 to 10 AWG, Stepdown Butt Connector, Crystal Clear Insulation, 16 to 14/12 to 10 AWG, Blue

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189

Product Description

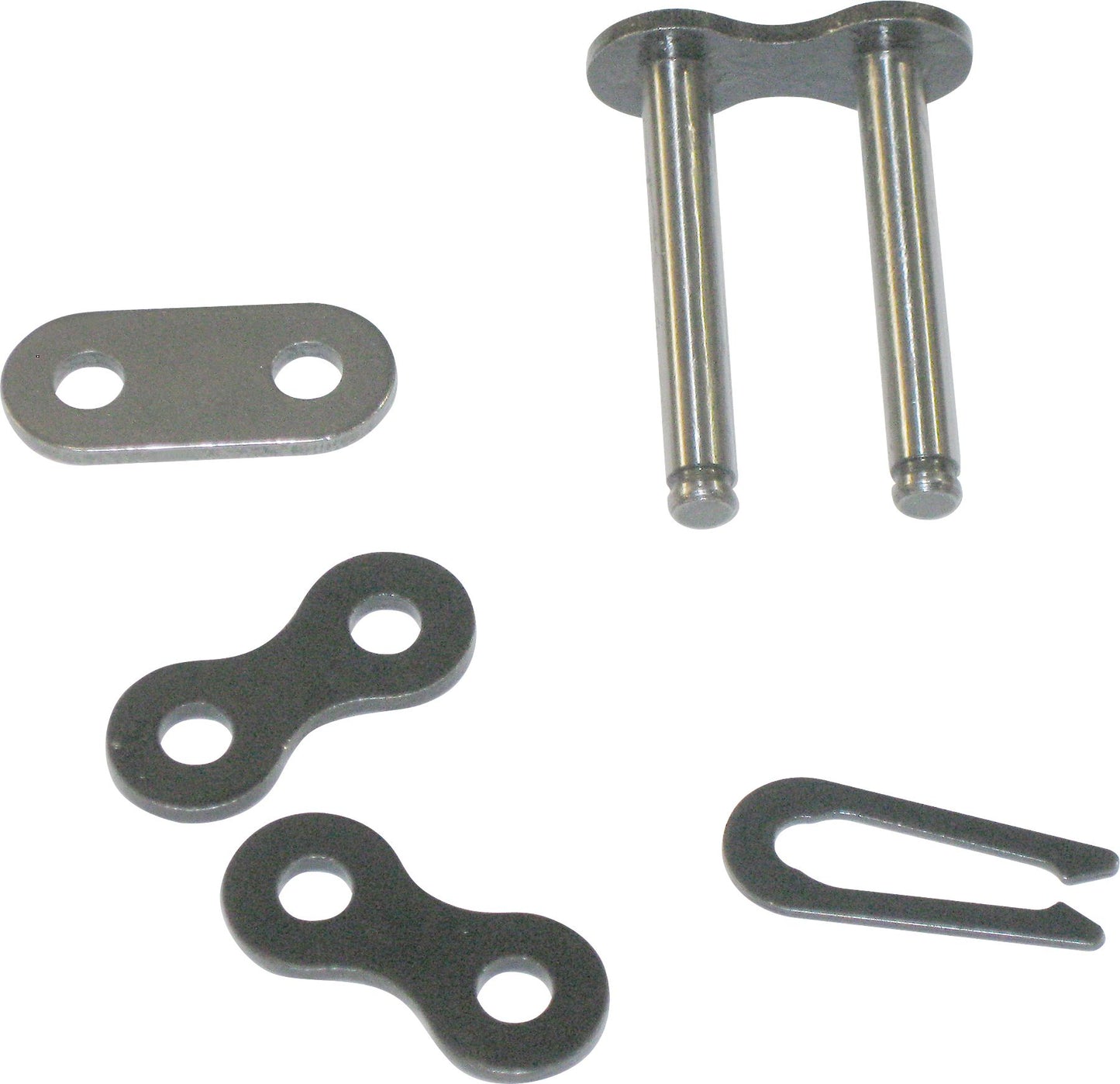

Connecting Link, Double Strand, Steel, Industry No. 80-2, 1" Pitch, 35,200lbs Average Tensile Strength

Technical Specifications

Item#: 1593434
Manufacturer Model #: CL80-2C
Configuration Connecting Link
Type Double Strand
Style Standard
Material Steel
Finish Plain
Industry Number 80-2
Pitch 1 "
Roller Width 0.625 "
Roller Diameter 0.625 "
Plate Thickness 0.126 "
Plate Height 0.945 "
Minimum Tensile Strength 32,120 lb
Average Tensile Strength 35,200 lb
Maximum Load 5,610 lb
UNSPSC #: 31163027
TAA Compliant: Yes
Weight: 1.305 lb
