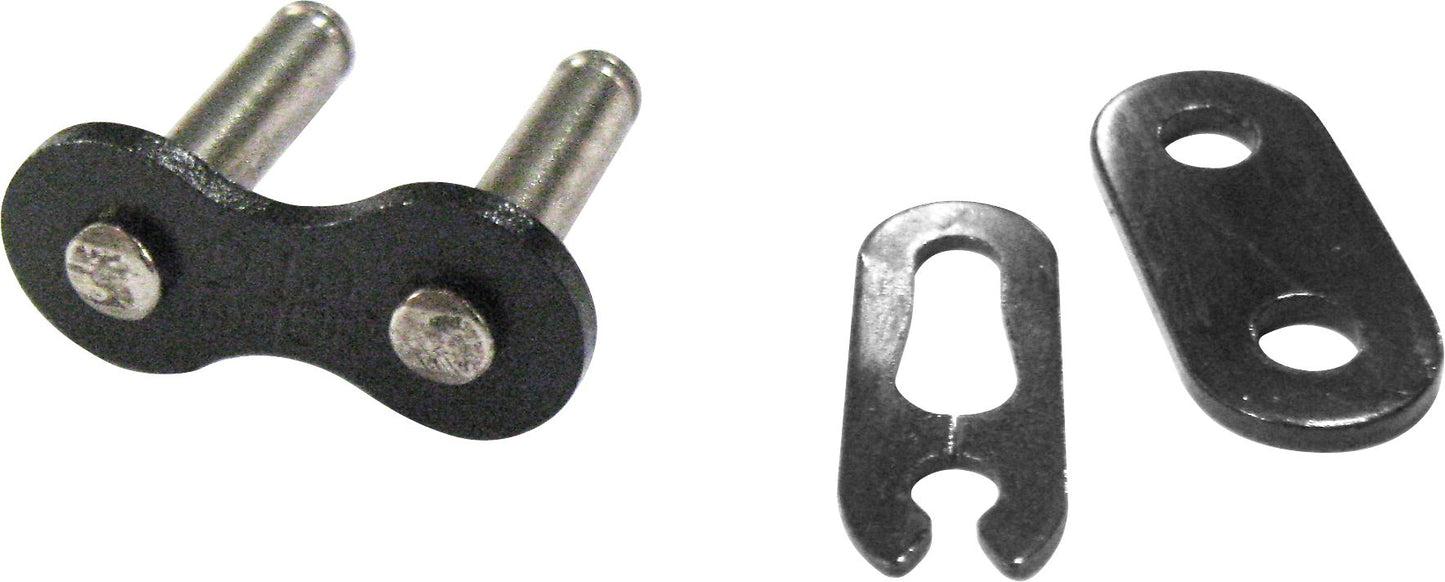

Connecting Link, Single Strand, Sintered Bushing, Steel, Industry No. 60, 3/4" Pitch, 9,460lbs Average Tensile Strength
(Pack of
5)
SKU:1443397 Item#: 1443397
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.
In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Frequently Bought Together
Connecting Link, Double Strand, Steel, Industry No. 25-2
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Stainless Steel, Industry No.
Couldn't load pickup availability
Connecting Link, Single Strand, Stainless Steel, Industry No. 80
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/8", 2,000 lb WLL
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 6" Long
Couldn't load pickup availability
Connecting Link, Double Pitch-Conveyor, Stainless Steel, Industry No.
Couldn't load pickup availability
Roller Chain, Double Pitch-Conveyor, Steel, Industry No. C2040
Couldn't load pickup availability
Offset Link (Half Link), Double Strand, Steel, Industry No. 12B-2
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Product Description
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Technical Specifications
| Item#: | 1443397 |
|---|---|
| Manufacturer Model #: | CL60UR |
| Configuration | Connecting Link |
| Type | Single Strand |
| Style | Standard; Sintered Bushing |
| Material | Steel |
| Finish | Plain |
| Industry Number | 60 |
| Pitch | 3/4 " |
| Roller Width | 0.500 " |
| Roller Diameter | 0.469 " |
| Plate Thickness | 0.126 " |
| Plate Height | 0.713 " |
| Average Tensile Strength | 9,460 lb |
| Maximum Load | 2,090 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
