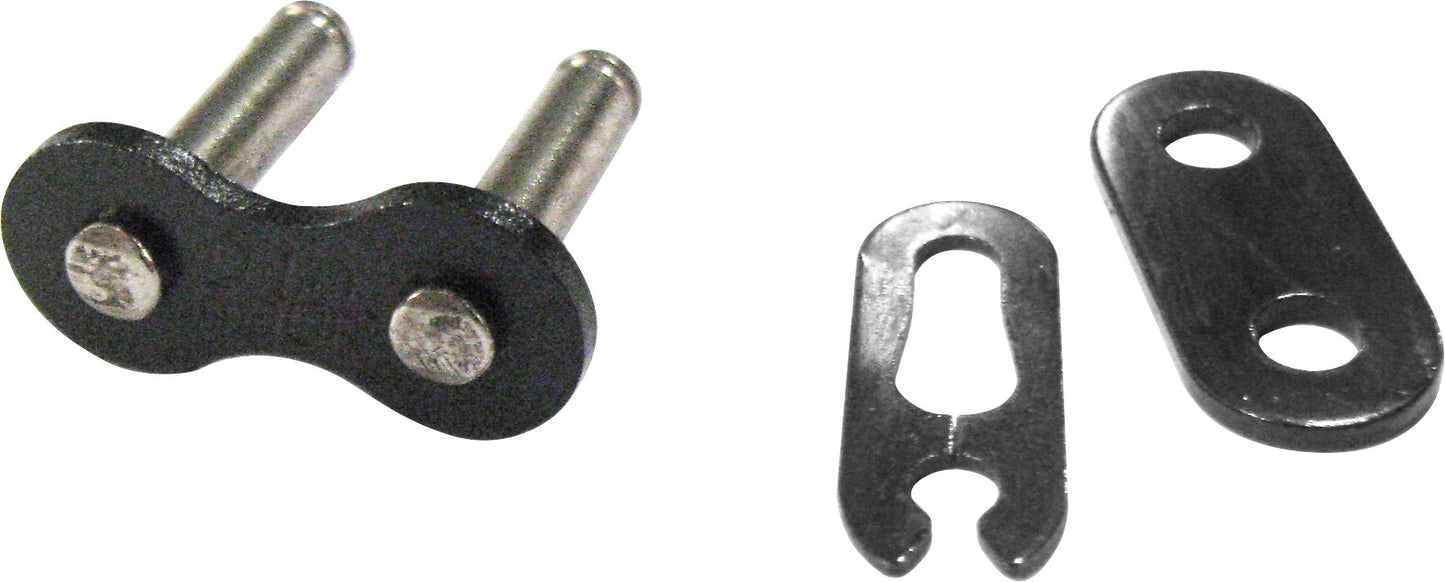

Connecting Link, Single Strand, Sintered Bushing, Steel, Industry No. 50, 5/8" Pitch, 6,710lbs Average Tensile Strength
(Pack of
5)
SKU:1443591 Item#: 1443591
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.
In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Frequently Bought Together
Connecting Link, Single Strand, Steel, Industry No. 40
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Steel, Industry No. 40
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 60
Couldn't load pickup availability
Grade 43 Clevis Slip Hook with Latch, 3/8", 5,400 lb WLL
Couldn't load pickup availability
Grade 43 Clevis Slip Hook with Latch, 1/4", 2,600 lb WLL
Couldn't load pickup availability
1" X 10' Quick Trac Retractable Ratcheting Tie Down Black 400 Lbs
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 40
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Steel, Industry No. 40
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 60
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Product Description
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Technical Specifications
| Item#: | 1443591 |
|---|---|
| Manufacturer Model #: | CL50UR |
| Configuration | Connecting Link |
| Type | Single Strand |
| Style | Standard; Sintered Bushing |
| Material | Steel |
| Finish | Plain |
| Industry Number | 50 |
| Pitch | 5/8 " |
| Roller Width | 0.375 " |
| Roller Diameter | 0.400 " |
| Plate Thickness | 0.094 " |
| Plate Height | 0.591 " |
| Average Tensile Strength | 6,710 lb |
| Maximum Load | 1,540 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
