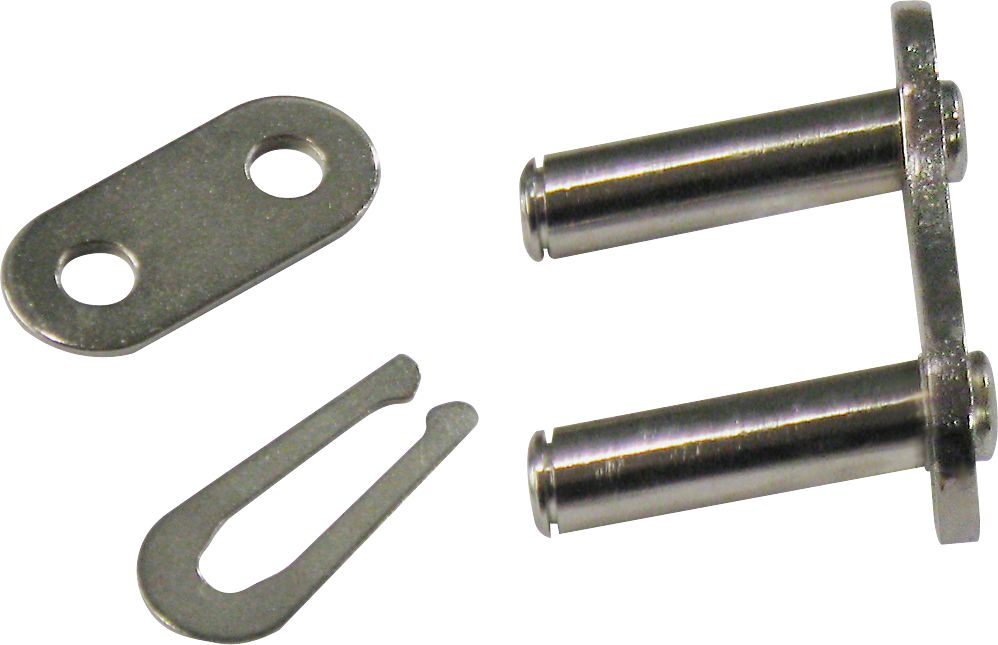

Connecting Link, Single Strand, Steel, Nickel Plated, Industry No. 35, 3/8" Pitch, 2,530lbs Average Tensile Strength
(Pack of
5)
SKU:1443431 Item#: 1443431
Nickel-plated chain provides increased corrosion resistance. In applications where chain is exposed to the possibility of hydrogen brittlement caused by acid vapor or salty environment, nickel plating delays the corrosive effect on the chain.
Couldn't load pickup availability
Catalog page#: 15-59
Frequently Bought Together
Connecting Link, Double Strand, Steel, Industry No. 50-2
Item#: 85380
Couldn't load pickup availability
Clevis Slip Hook, Grade 63, 1/2", 9,400 lb WLL
Item#: 1429871
Couldn't load pickup availability
Roller Chain, Single Strand, Stainless Steel, Industry No. 35
Item#: 1443472
Couldn't load pickup availability
Master Series Penlight Flashlight
Item#: 1635602
Couldn't load pickup availability
Product Description
Nickel-plated chain provides increased corrosion resistance. In applications where chain is exposed to the possibility of hydrogen brittlement caused by acid vapor or salty environment, nickel plating delays the corrosive effect on the chain.Technical Specifications
| Item#: | 1443431 |
|---|---|
| Manufacturer Model #: | CL35N |
| Configuration | Connecting Link |
| Type | Single Strand |
| Style | Standard |
| Material | Steel |
| Finish | Nickel Plate |
| Industry Number | 35 |
| Pitch | 3/8 " |
| Roller Width | 0.188 " |
| Roller Diameter | 0.200 " |
| Plate Thickness | 0.049 " |
| Plate Height | 0.354 " |
| Minimum Tensile Strength | 1,980 lb |
| Average Tensile Strength | 2,530 lb |
| Maximum Load | 484 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
| Weight: | 0.0661 lb |
