Connecting Link, Single Strand, Ultimate Power, Steel, Industry No. 80HK, 1" Pitch, 21,560lbs Average Tensile Strength
(Pack of
5)
Ultimate Power roller chain conform to the Heavy type of the ANSI roller chain.Their inner and outer plates are equal in thickness to those of the next larger size of standard roller chain.
• Approximately 20% higher tensile strength
• Approximately 15% higher maximum allowable load
• Heavy-duty applications at low speeds
Frequently Bought Together

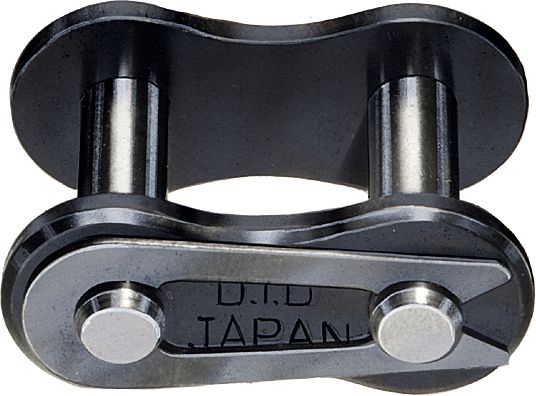

Connecting Link, Single Strand, Steel, Industry No. 12B
Item#: 1443600
Couldn't load pickup availability

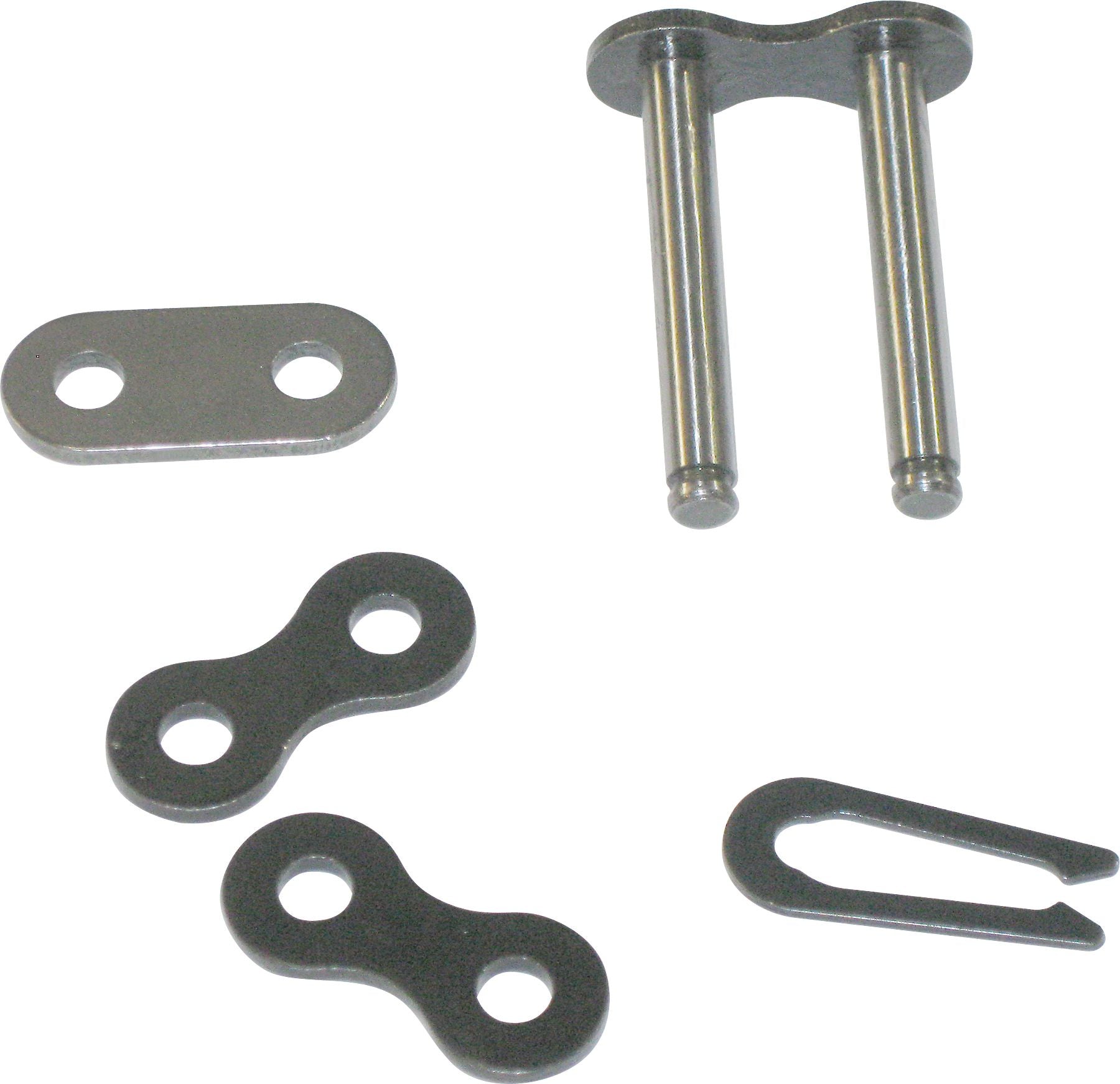

Connecting Link, Double Strand, Steel, Industry No. 25-2
Item#: 1443570
Couldn't load pickup availability

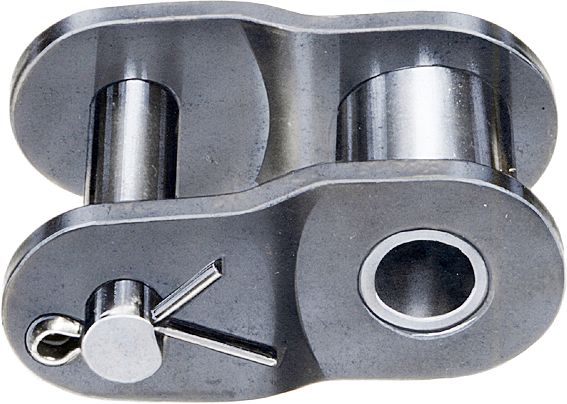

Offset Link (Half Link), Single Strand, Stainless Steel, Industry No.
Item#: 1443567
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/4", 13,000 lb WLL
Item#: 14492
Couldn't load pickup availability
Tuflex Roundsling, Polyester/Nylon, Yellow, 4' Length
Item#: 1416045
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 1/16", 480 lbs Breaking Strength
Item#: 1439713
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Ultimate Power, Steel, Industr
Item#: 1443499
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 10B
Item#: 1443386
Couldn't load pickup availability

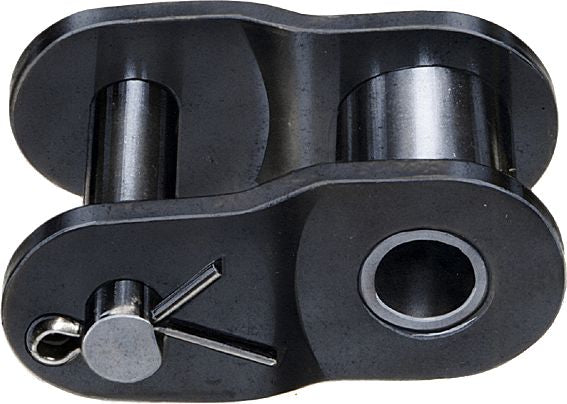

Offset Link (Half Link), Single Strand, Steel, Industry No. 06B
Item#: 1443412
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Item#: 53980
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Item#: 94727
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Item#: 88436
Couldn't load pickup availability
Product Description
Ultimate Power roller chain conform to the Heavy type of the ANSI roller chain.Their inner and outer plates are equal in thickness to those of the next larger size of standard roller chain.• Approximately 20% higher tensile strength
• Approximately 15% higher maximum allowable load
• Heavy-duty applications at low speeds
Technical Specifications
| Item#: | 1443429 |
|---|---|
| Configuration | Connecting Link |
| Type | Single Strand |
| Style | Extra-Heavy |
| Material | Steel |
| Finish | Plain |
| Industry Number | 80HK |
| Pitch | 1 " |
| Roller Width | 0.625 " |
| Roller Diameter | 0.625 " |
| Plate Thickness | 0.157 " |
| Plate Height | 0.945 " |
| Minimum Tensile Strength | 18,260 lb |
| Average Tensile Strength | 21,560 lb |
| Maximum Load | 3,740 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
| Weight: | 0.81 lb |
Product Restrictions
