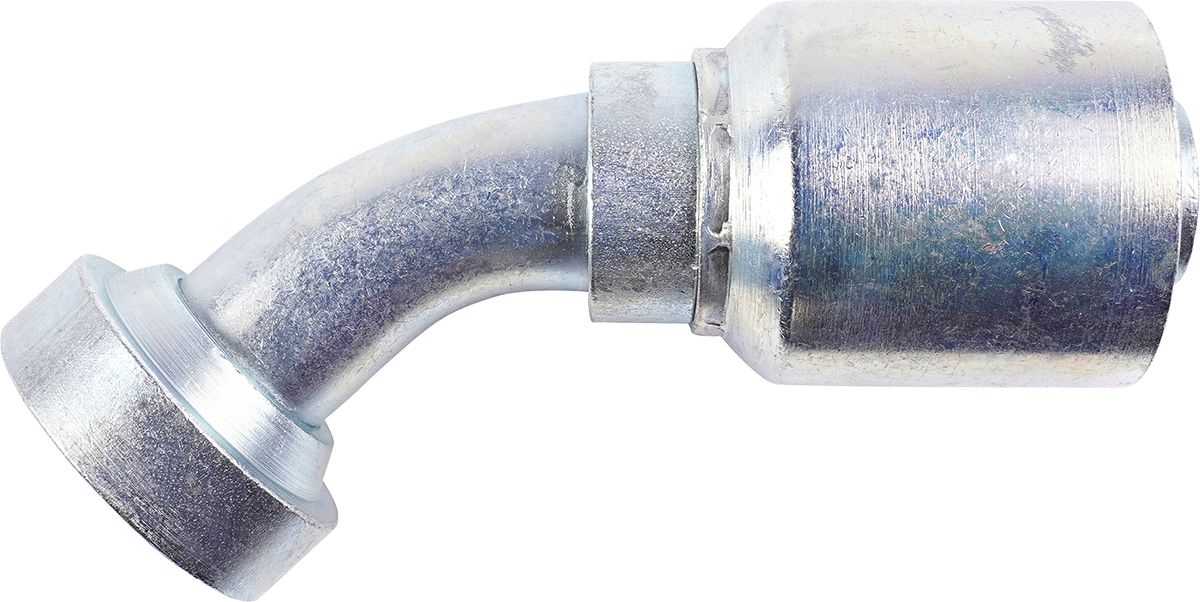

KURT Hydraulics W Carbon Steel Crimp-On Coupling CAT Flange, 45° Bend Rigid, 1" (-16) Hose x 1" (-16) Flange
(Pack of 1)

Item#: DY54260329

KURT Hydraulics

• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.

Read More
Check Availability

Frequently Bought Together


Z Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16703

Z Series Crimp-On Hose End 1/2" x 7/8-14

Item#: 16616

Z Series Crimp-On Hose End 1/2" x 13/16-16

Item#: 16709

Hydraulic Cap Nut, 3/4-16"(08) Female JIC SAE 37 Degree Flare

Item#: 86151

Z Series Crimp-On Hose End 3/4" x 1-1/16-12

Item#: 16623

Z Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16703

Hex Head Plug Brass 3/8-18 Male NPT

Item#: 5364

DOT Union Brass 1/2 x 1/2"

Item#: 57501

Hose Clamp 304 SS 9/16 to 1-1/16"

Item#: 86725

Nylon Cable Tie 4" Black

Item#: 94609

180-degree Wide Beam Head Light with Side Light

Item#: 1639013

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: 88446

Product Description

• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.

Technical Specifications

Item#: DY54260329
Attachment Method Crimp-On
Fitting Dimension A (Hose) 1 (-16) "
Dash Size -16
Gender Split Flange
Fitting End Style Split Flange Caterpillar/Thick Flange
Fitting End Type Caterpillar/Thick Flange
Fitting Angle 45 °
Fitting Dimension B (Working End) 1.88 (-16)
Flange Diameter 1.88 "
Flange Size 1 "
Fitting Series W
Size (-16)X(-16)
Material Carbon Steel
UNSPSC #: 27121700
TAA Compliant: No
Weight: 1.275 lb
