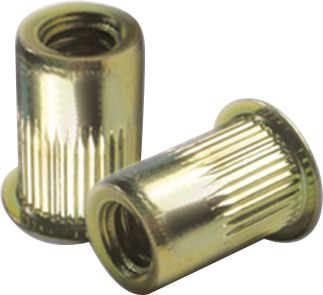

Diamond Grip II Threaded Insert 1/4-28
(Pack of 25.0)

Lawson Products

• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.

Check Availability

Quantity

Catalog page#: 6-19

Frequently Bought Together

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

PTO Pin Lock 1/4 x 2-1/2"

Item#: 64348

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

Threaded Insert Thin Wall #10-24

Item#: 84205

Blind Rivet Nut Insert Flat Head 1/4-20

Item#: 1405713

Diamond Grip II Installation Kit #10-32

Item#: 84215

Product Description

Technical Specifications

Item#:	51674
Diameter	1/4 "
Thread Pitch	28
Grip Range	0.027 – 0.165 "
Flange Type	Large Flange
Hole Size	0.391 "
Pilot Drill Size	25/64 "
Finish	Yellow Zinc
Material	Steel
Thread	Fine
UNSPSC #:	31161616
TAA Compliant:	Yes
Weight:	0.23 lb
