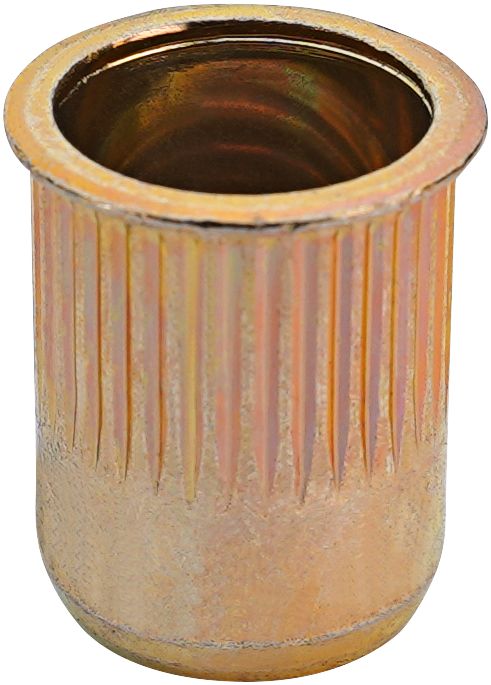

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Standard Flange, Coarse Thread, M10-1.5, 0.7 to 3.8mm Grip
(Pack of
25)
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Frequently Bought Together
Blind Rivet Nut Insert Thin Wall 5/16-18
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M4-0.7
Couldn't load pickup availability
Diamond Grip II Threaded Insert M8-1.25
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-28
Couldn't load pickup availability
Diamond Grip II Threaded Insert #6-32
Couldn't load pickup availability
Diamond Grip II Threaded Insert #6-32
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 94744 |
|---|---|
| Diameter | M10 |
| Thread Pitch | 1.5 mm |
| Grip Range | 0.70 – 3.80 mm |
| Flange Type | Standard Flange |
| Hole Size | 13.50 mm |
| Pilot Drill Size | 17/32 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.41 lb |
