DOT Air Brake Compression Elbow for Nylon Tubing, 45°, Male, Brass, 1/4 x 1/8" Tube x Pipe
(Pack of
2)
SKU:84309 Item#: 84309
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Frequently Bought Together
DOT Compression Connector Male Brass 3/8 x 1/8"
Couldn't load pickup availability

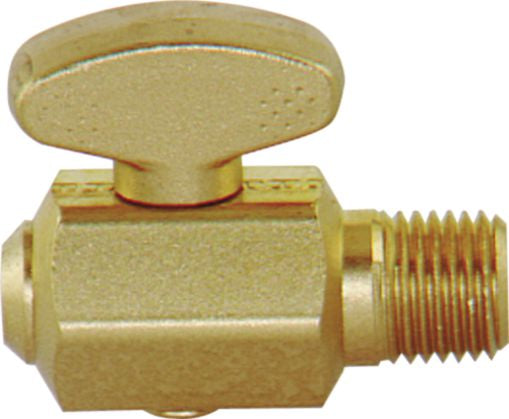

Air Brake Tank Filler Valve Brass 1/4-18
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 5/8 x 3/8"
Couldn't load pickup availability
DOT Elbow Male 90° Brass 1/4 x 1/4-18
Couldn't load pickup availability
DOT Union Brass 5/8 x 5/8"
Couldn't load pickup availability
DOT Swivel Elbow Male 90° Brass 1/2 x 1/2-14
Couldn't load pickup availability
DOT Compression Connector Male Brass 1/4 x 1/8"
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 3/8-18
Couldn't load pickup availability
DOT Union Tee Brass 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
Hose Clamp 301 SS 1-9/16 to 2-1/2"
Couldn't load pickup availability
Forged Body Ball Valve Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 84309 |
|---|---|
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Male Elbow 45 Degrees |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 1/4 " |
| Fitting Dimension B | 1/8-27 " |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 0.16 lb |
