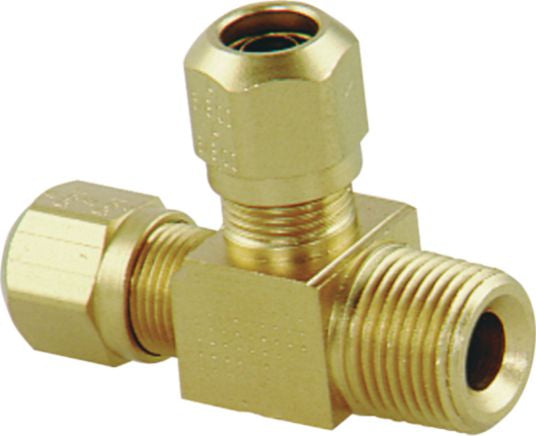

DOT Air Brake Compression Run Tee for Nylon Tubing, Male, Brass, 3/8" x 1/4-18 x 3/8", Tube x Pipe x Tube
(Pack of
5)
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Frequently Bought Together
DOT Compression Elbow Male 90° Brass 5/8 x 1/2"
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/4 x 1/2"
Couldn't load pickup availability
DOT Compression Hose Mender Brass 1/2 x 1/2"
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 3/8-18
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 3/8-18
Couldn't load pickup availability
DOT Compression Union Brass 3/8"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #6 1/2 to 13/16"
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
Couldn't load pickup availability
Hose Clamp 301 SS 1-9/16 to 2-1/2"
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 84294 |
|---|---|
| Fitting Type | Compression - Nylon |
| Style | DOT |
| Material | Brass |
| Configuration | Male Run Tee |
| Connection Type A x B x C | Tube x Pipe x Tube |
| Fitting Dimension A | 3/8 " |
| Fitting Dimension B | 1/4-18 |
| Fitting Dimension C | 3/8 " |
| Size | 3/8X1/4 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 0.81 lb |
